1/4" Hydraulic Hose with 2-Wire (Metric Fittings)

Skip to product information
1 of 8
Regular price Price: $4.79
Regular price $0.00 Sale price $4.79
Sale Sold out

Stock Level: More than 1000 feet

Product Status: In Stock

When Will it Ship:

Shipping Cost: Free on orders over $100

Shipping Transit Time: 2 to 5 Business Days

Eligible for Express Shipping: Yes

Stock Level Updated: Dec 25, 2024


Item Number: PX275-04PS-M
Weight: 0.2 lb
Title
View full details

Collapsible content

Description

With countless choices and assemblies of hydraulic hoses and fittings, we can make any combination to meet your needs. If you don't see your custom length hydraulic hose or fittings, please contact us and let's get started.

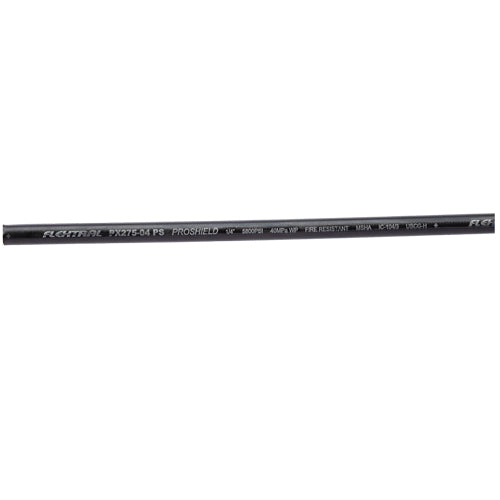

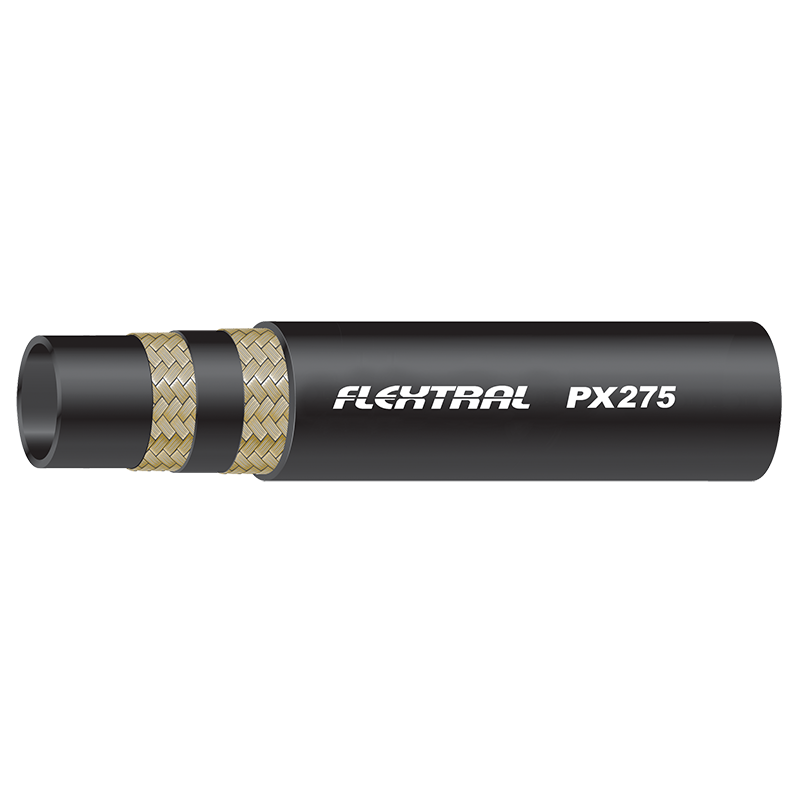

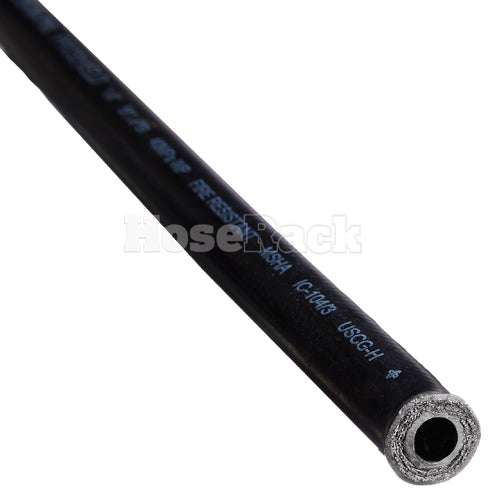

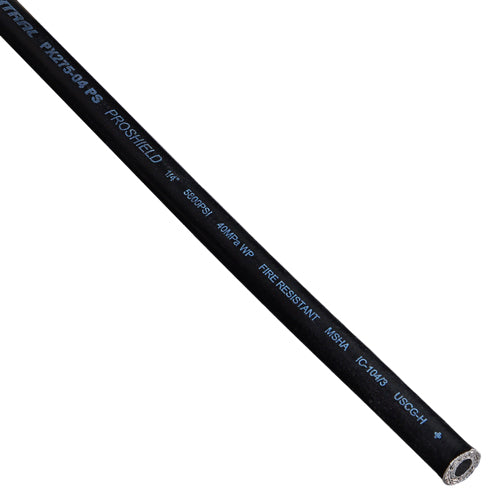

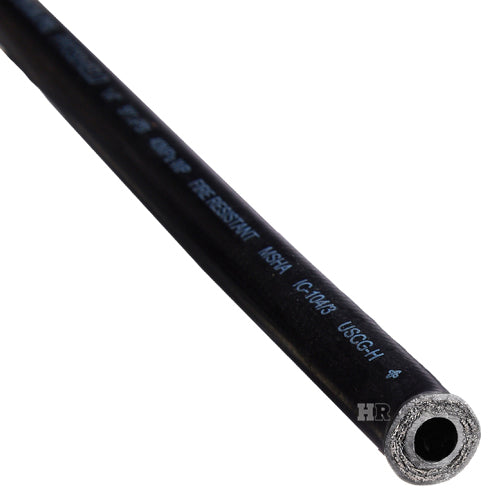

This compact wire Pro-Shield 1/4" hydraulic hose is designed with a synthetic rubber tube and reinforced with two braids of ultra high-tensile steel wire. Designed to safely transport petroleum-based hydraulic fluids, water, diesel fuel, lubricating oils, biodegradable hydraulic oils and fire resistant synthetic Polyol Esters.

The hydraulic hose cover is smooth, black, high-abrasion, oil and weather resistant synthetic rubber, and MSHA approved.

Perfect for any applications requiring extreme flexibility and extended service. SAE J1942/1 USCG – H accepted.

PX275 has been tested and approved for 400,000 impulse cycles at 133% of working pressure at 212°F.

Application: Petroleum based hydraulic fluids, water, diesel fuel, lubricating oils, biodegradable hydraulic oils, fire resistant synthetic Polyol Esters. Perfect for applications requiring extreme flexibility. SAE J1942/1 USCG – H accepted.

Specifications

Hose Specifications
  • Hose Inside Diameter: 1/4 inches
  • Hose Outside Diameter: 17/32 inches (13.4 mm)
  • Maximum Working Pressure: 5800 psi
  • Minimum Burst Pressure: 23,200
  • Minimum Bent Radius: 1 15/16 inches (50 mm)
  • One Piece Coupling: E
  • Temperature: -40°C to +100°C (-40°F to +212°F)

Warranty Information

This compact wire Pro-Shield 1/4" hydraulic hose is designed with a synthetic rubber tube and reinforced with two braids of ultra high-tensile steel wire. Custom lengths and fittings are available. Designed to safely transport petroleum-based hydraulic fluids, water, diesel fuel, lubricating oils, biodegradable hydraulic oils and fire resistant synthetic Polyol Esters.

The hydraulic hose cover is smooth, black, high-abrasion, oil and weather resistant synthetic rubber, and MSHA approved.

Perfect for any applications requiring extreme flexibility and extended service. SAE J1942/1 USCG – H accepted.

PX275 has been tested and approved for 400,000 impulse cycles at 133% of working pressure at 212°F.
