1" Camlock Gasket (5-Pack)

Skip to product information
1 of 4
Regular price Price: $7.62
Regular price $0.00 Sale price $7.62
Sale Sold out

Stock Level: 10 or more

Product Status: In Stock

When Will it Ship:

Shipping Cost: Free on orders over $100

Shipping Transit Time: 2 to 5 Business Days

Eligible for Express Shipping: Yes

Stock Level Updated: Nov 13, 2024


Item Number: CG1-5
Weight: 0.05 lb

View full details

Collapsible content

Description

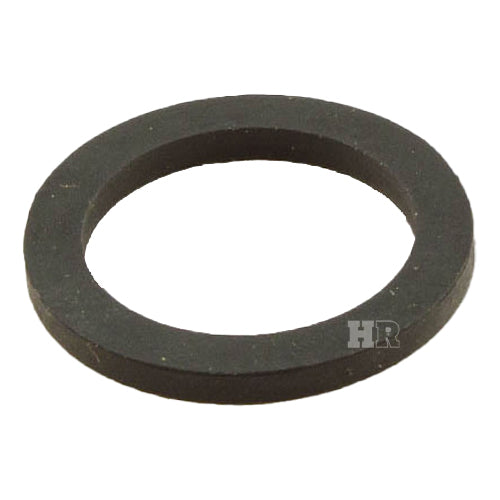

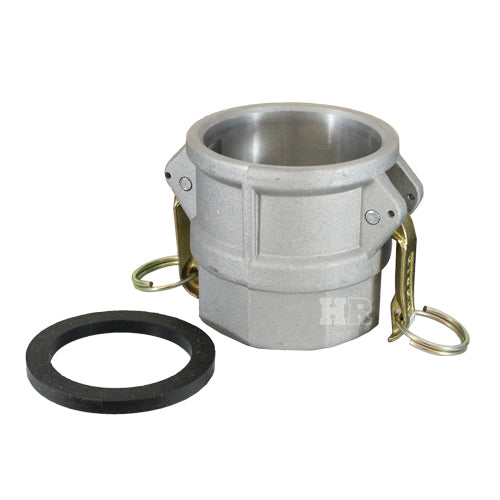

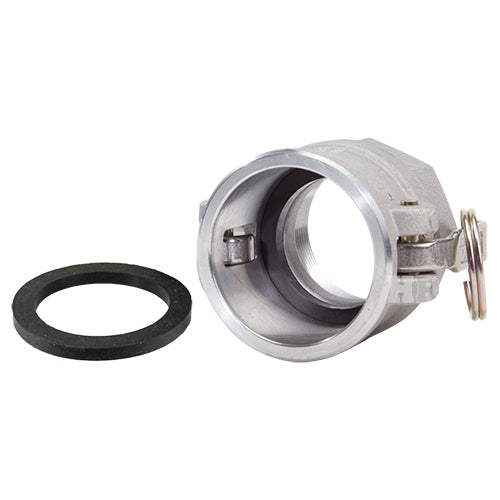

These Buna-N gaskets for female cam and groove couplings.

NITRILE (NBR, Buna-N) - Acrylonitrile-butadiene

Trade Names

  • Breon
  • Butaprene
  • Butacril
  • Chemigum
  • Chemivic
  • Elaprim
  • FR-N
  • Hycar
  • Krynac
  • NYsyn
  • NYsynblak
  • Paracril
  • Paracril OZO
  • Perbunan N
  • Tylac
  • Nipol

Advantages

Very good resistance to oil and gasoline; superior resistance to petroleum-based hydraulic fluids; wide range of service temperatures (-65° to 300° F); good resistance to hydrocarbon solvents; very good resistance to alkalis and acids.

Limitations

Inferior resistance to ozone, sunlight, and natural aging; poor resistance to oxygenated solvents.

Remarks

Nitrile and neoprene are the highest-volume oil-resistant elastomers. Nitrile is superior to neoprene in resistance to oil, gasoline, and aromatic solvents. However, it does not perform as well as neoprene in applications requiring exposure to weather, ozone, and sunlight. Furthermore, it has no inherent flame resistance.

The properties of nitrile vary considerably with the ratio of acrylonitrile and butadiene. In general, as the acrylonitrile content of the elastomer increases, oil and solvent resistance and abrasion resistance improve. When the acrylonitrile content decreases, these properties deteriorate, and low-temperature flexibility and resilience improve.When nitrile is modified by polyvinyl chloride (PVC) resins, its resistance to weather, ozone, and sunlight improves considerably without significant sacrifice in oil-resisting properties. PVC/nitrile is similar to neoprene, in general, however, it is much inferior to neoprene in adhesion to fabrics and metals.

Carboxylated nitrile is generally tougher and more resistant to tear and abrasion than conventional nitrile, but it is less resilient and flexible at low temperatures.

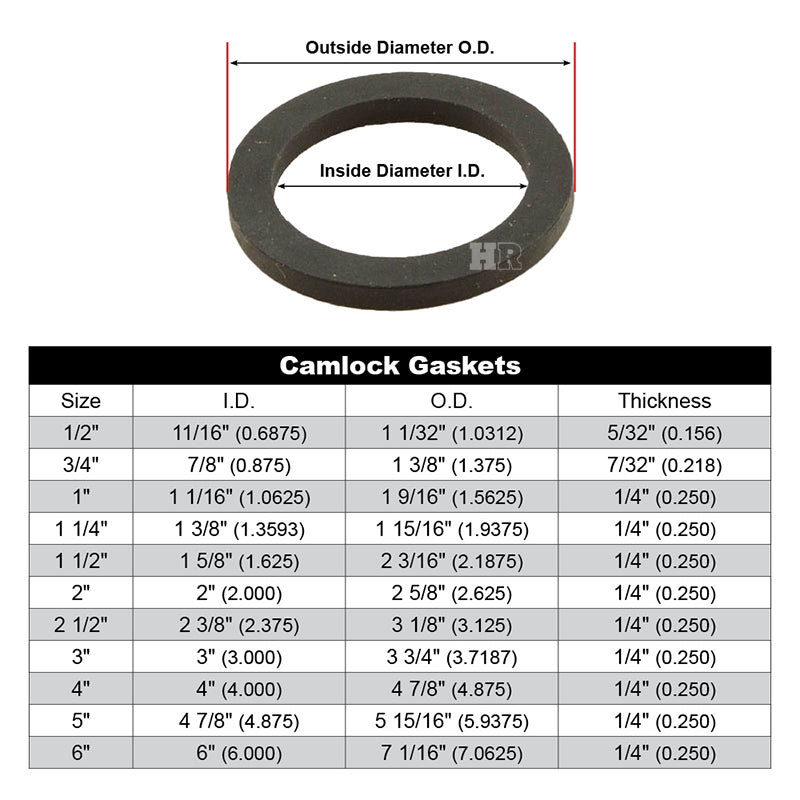

Specifications

  • Made in USA
  • Outside Diameter (OD): 1 9/16 inches
  • Inside Diameter (ID): 1 1/16 inches
  • Thickness: 1/4 inch
  • Color: Black
  • Material: Buna-N
  • Includes: 5 Gaskets
