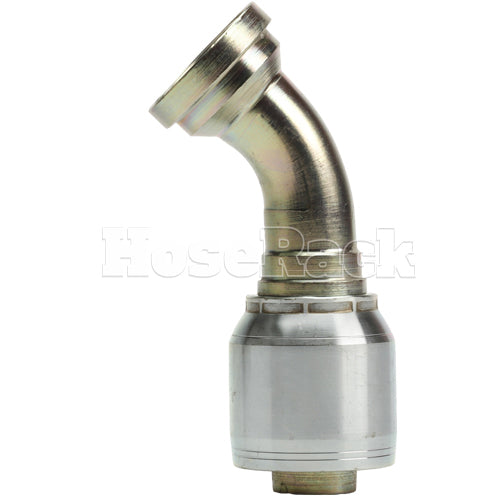

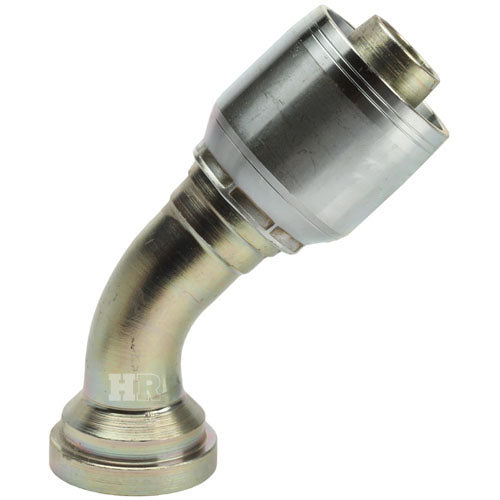

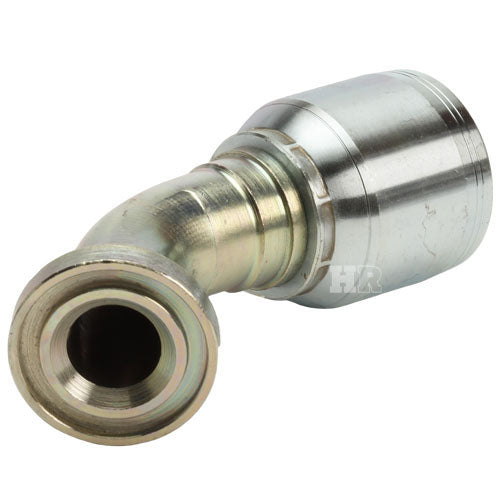

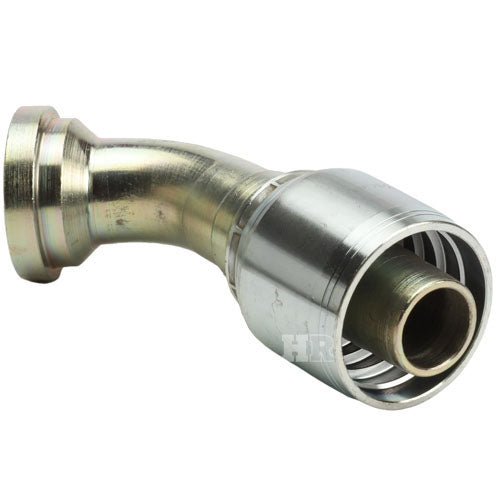

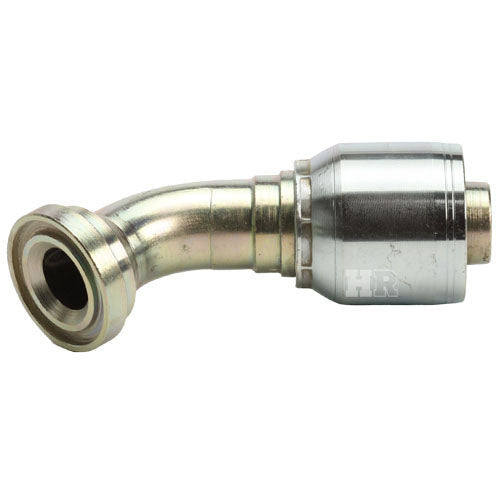

1" Code 61 Flange 45° Elbow Hydraulic Fitting

  • 1" Code 61 Flange 45° Elbow
1 7
Price: $85.66
$0.00 $85.66
Sale Sold out

Stock Level: 10 or more

Product Status: In Stock

When Will it Ship:

Shipping Cost: Free on orders over $100

Shipping Transit Time: 2 to 5 Business Days

Eligible for Express Shipping: Yes

Stock Level Updated: Dec 28, 2024


Item Number: N16-16FL45
Weight: 1.0 lb
  • Crimped On: 4-Wire Hydraulic Hoses
  • Hose Bore: 1 Inch
  • Flange Thickness: 5/16 Inch
  • A (Flange Length): 2 Inch (50.8 Millimeters)
  • H (Cut-Off Length): 3 1/16 Inch (77.5 Millimeters)
  • L (Fitting Length): 5 1/4 Inch (134 Millimeters)
  • K (Drop Length): 1 1/8 Inch (28 Millimeters)
  • Brand: Flextral
View full details

Description

This N-Series 1” SAE Code 61 Flange 45° Elbow steel hydraulic fitting provides a reliable connection between your 4-wire hydraulic hose system components.

These hydraulics adapters aka hydraulic couplings, hydraulic couplers, hydraulic hose fittings and quick couplers are engineered to bear high pressure in a wide variety of applications, offering superior strength and durability. Custom length hydraulic hoses are available with crimp hydraulic fittings for the utmost flexibility and convenience.

Equivalent / Interchangeable Fittings

  • Intertraco - AX40J-16-16
  • Aeroquip - 1B16FLA16
  • Dayco - BW16-16PA45
  • Gates - 16GS-16FL45M
  • Parker - 11771-16-16
  • Weatherhead - 43016U-G46

Warranty Information

One Year Warranty

HoseRack.com warrants that any new hose assemblies sold by HoseRack.com shall be free from defects in material and/or workmanship at the time of manufacture.

Should any assembly covered by this limited warranty be defective with respect to material and/ or workmanship under normal use and with proper installation and maintenance, during the period specified herein following the delivery of the product to the original purchaser, HoseRack.com will replace or repair such defective part or assembly.

The obligation of this warranty shall be limited to replacement cost, not to exceed the standard cost from HoseRack.com, plus service charge and/or labor to install such part. The warranty amount will be credited to your account only after it has been determined to be a defective assembly by a HoseRack.com representative.

A letter to HoseRack.com with your standard warranty report from the field must accompany the product in question. It is to be sent to HoseRack.com, prepaid via UPS or FedEx (collect not accepted) within 60-days from the date the claim first arises. Note: Complete assembly to be sent (hose and fittings.)

This warranty specifically excludes all liabilities for damage arising from loss or use or profits or injury to business, credit, reputation or financial standing and all other consequential damages.

This warranty is in lieu of all other warranties. No implied or statutory warranties of merchantability or fitness for a particular purpose shall apply. There are no warranties, which extend beyond this document. This writing constitutes a complete, exclusive and final agreement of HoseRack.com warranty obligation.

1. Period: HoseRack.com's obligation under this warranty shall continue only for one year from the date the product is delivered to the O.E.M.

2. Limitations and Exclusions: This warranty shall not apply to the malfunction of the HoseRack.com assembly resulting from:

  • Failure to properly install product.
  • Improper specifications of product for application.
  • Lack of operating skill of the operator, including carelessness and abusive use, overloading and insufficient or improper maintenance.
  • Replacement of parts or assemblies which can be repaired by minor adjustments, such as tightening of all fittings, etc.
  • Any other kind of misuse or detrimental exposure, including collision and/or accident.
