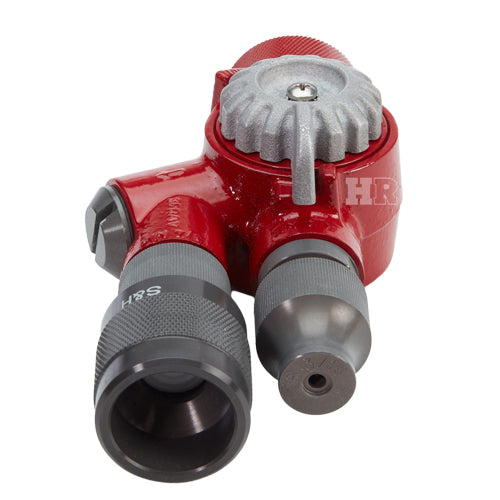

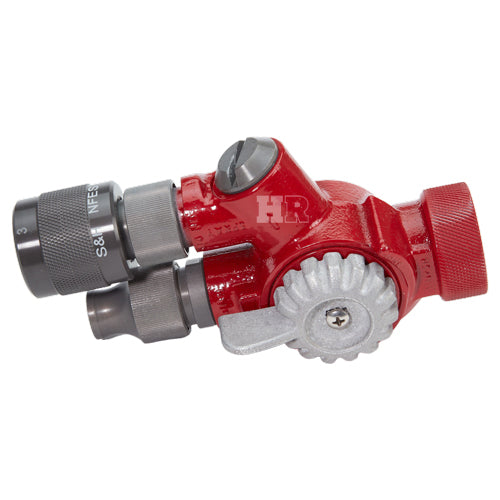

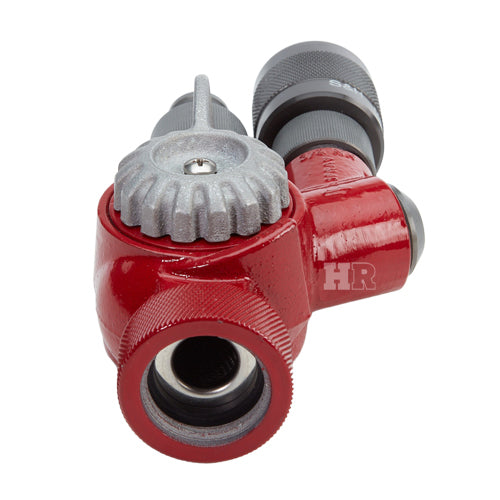

1" Red Twin Tip Forestry Nozzle (NPSH)

Item Number: A1TTP
  • 1" Red Twin Tip Forestry Nozzle (NPSH)
1 5
$467.58
$0.00 $467.58
Sale Sold out
In Stock (10 or more)
Ships
Estimated transit time: 2 to 5 Business Days Eligible for Express Shipping

Free Shipping

Help Me Connect

NH / NST: The most common thread type in use by fire departments today is NST or National Standard Thread. NST also goes by the initials NH or National Hose. It can even be referred to as NHT or National Hose Thread but NST or NH is more common these days. NH = NST.

  • The female side of a NH / NST coupling will only connect to a male NH / NST connection
  • The male side of a NH / NST coupling will only connect to a female NH / NST connection

NPSH: National Pipe Straight Hose (NPSH) or Iron Pipe Thread (IPT) has the same threads per inch (TPI) as National Pipe Tapered (NPT) but the thread does not taper. NPSH is a straight thread and seals by a gasket in the female coupling which allows for a swivel, just like NH / NST, which make both ideal for hose couplings.

  • The female side of a NPSH coupling will only connect to a male NPT pipe or a male NPSH connection
  • The male side of a NPSH coupling will only connect to a female NPSH connection.
    It will NOT thread into a female NPT pipe. For example, a male NPSH coupling will NOT thread into a female metal or pvc pipe.

NPT: National Pipe Tapered is common in plumbing and some industrial uses. Sometimes referred to as pipe thread because PVC pipe and schedule 40 pipe are typically threaded in NPT. As its name implies this is a tapered thread so that the outside diameter of the male (ODM) gets smaller towards the end of the fitting and the inside diameter of the female narrows with depth. As the two fittings are threaded together the opposite tapers force thread friction and makes the seal without the use of a gasket.

View full details

Additional Details

The forestry twin tip nozzle is the time tested Forestry nozzle. Made from high-quality cast aluminum with stainless steel internal parts, it comes standard with a 3/16 inch straight stream tip and a 3 GPM fog spray tip. The nozzle has a fog spray position, a straight stream position, and an off position. The straight stream tip threads are 3/4 inch GHT (garden hose threads). The 1 inch nozzle inlet threads are NPSH

This Wildland Fire Equipment nozzle is used by the U.S. Forest Service (USFS), Bureau of Land Management (BLM), Bureau of Indian Affairs (BIA), U.S. Fish & Wildlife Service (USF&WS), National Park Service (NPS), State and Local governments, and other Forest Service–sponsored participants in the government-wide wildland firefighting effort.

This is the same water-handling accessories forestry nozzle found in the Defense Logistics Agency (DLA) Wildland Fire Equipment catalog or Fedmall.mil.

Specifications

  • Made in USA
  • Inlet: 1 inch NPSH Thread
  • Outlets: Garden Hose Threads (GHT)
  • NSN: 4210-00-640-1892
  • Cast Aluminum Construction
  • Straight Stream Tip: 3/16 inch (10 GPM)
  • Straight Stream Tip: NSN 4210-00-203-3855
  • Spray Tip: 3 GPM NSN 4210-00-204-3358
  • Selector Ranges: Spray, to Straight, to Off.
  • Meets Forest Service Specifications (FSS)
  • NFES #0024
  • Length: 5 inches
  • Uses G-1-PK5 nozzle gaskets

1" Male Hose

  • Inside diameter of a male hose: 1 inch
  • Outside diameter of a male NH / NST adapter: 1 3/8 inches (1.375) - 8 Threads per inch
  • Outside diameter a male NPSH or NPT adapter: 1 5/16 inches (1.295) - 11.5 Threads per inch
