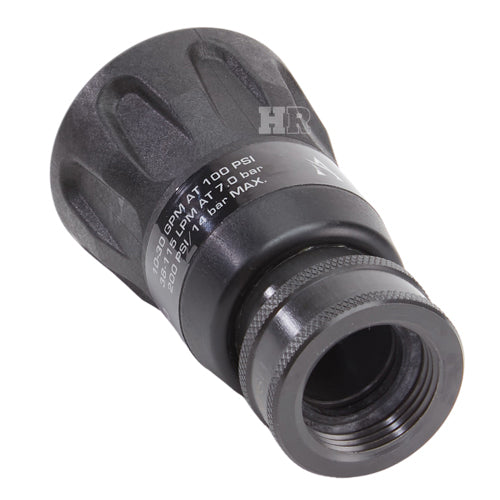

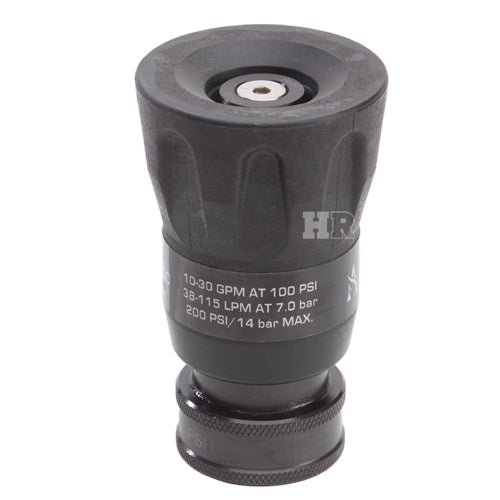

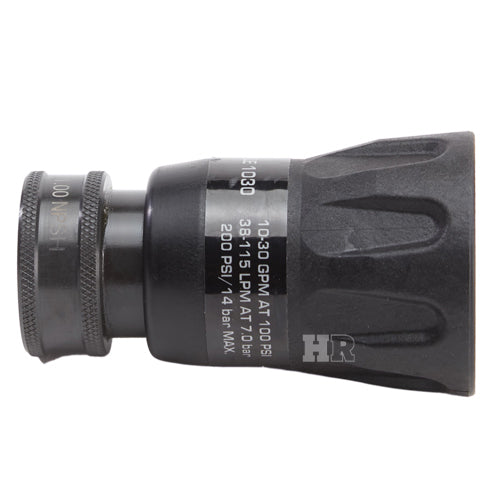

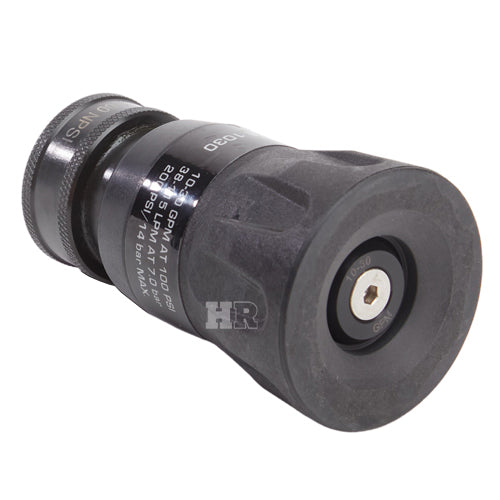

Akron 1" Black Forestry Fire Nozzle (NPSH)

  • Akron 1" Black Forestry Fire Nozzle (NPSH)
1 5
Price: $191.84
$0.00 $191.84
Sale Sold out

Stock Level: 10 or more

Product Status: In Stock

When Will it Ship:

Shipping Cost: Free Shipping

Shipping Transit Time: 2 to 5 Business Days

Eligible for Express Shipping: Yes

Stock Level Updated: Nov 21, 2024


Item Number: 1030P
Weight: 0.6 lb

View full details

Description

The Akron Brass dual gallonage nozzle style 1030 is a lightweight dual flow nozzle with an adjustable pattern. The nozzle shall have a rated pressure of 100 PSI and a maximum operating pressure of 200 PSI with dual flow settings of 10 GPM in straight stream and narrow fog and 30 GPM in straight stream and narrow fog. The nozzle shall have a one piece solid polymer pattern sleeve and Pyrolite inlet.
Applications
  • Firefighting
  • Wildland Forestry

Specifications

  • Made in USA
  • Material: Pyrolite
  • Size: 1 inch
  • Threads: NPSH
  • This nozzle will only connect to a 1 inch NPSH hose
  • Approximate Gallons Per Minute (GPM): 10 - 30
  • Operating Pressure: 100 PSI
  • Positions: Fog, Straight Stream and Off

1" Male Hose

  • Inside diameter of a male hose: 1 inch
  • Outside diameter of a male NH / NST adapter: 1 3/8 inches (1.375) - 8 Threads per inch
  • Outside diameter a male NPSH or NPT adapter: 1 5/16 inches (1.295) - 11.5 Threads per inch

Download Spec Sheet

Help Me Connect

NH / NST: The most common thread type in use by fire departments today is NST or National Standard Thread. NST also goes by the initials NH or National Hose. It can even be referred to as NHT or National Hose Thread but NST or NH is more common these days. NH = NST.

  • The female side of a NH / NST coupling will only connect to a male NH / NST connection
  • The male side of a NH / NST coupling will only connect to a female NH / NST connection

NPSH: National Pipe Straight Hose (NPSH) or Iron Pipe Thread (IPT) has the same threads per inch (TPI) as National Pipe Tapered (NPT) but the thread does not taper. NPSH is a straight thread and seals by a gasket in the female coupling which allows for a swivel, just like NH / NST, which make both ideal for hose couplings.

  • The female side of a NPSH coupling will only connect to a male NPT pipe or a male NPSH connection
  • The male side of a NPSH coupling will only connect to a female NPSH connection.
    It will NOT thread into a female NPT pipe. For example, a male NPSH coupling will NOT thread into a female metal or pvc pipe.

NPT: National Pipe Tapered is common in plumbing and some industrial uses. Sometimes referred to as pipe thread because PVC pipe and schedule 40 pipe are typically threaded in NPT. As its name implies this is a tapered thread so that the outside diameter of the male (ODM) gets smaller towards the end of the fitting and the inside diameter of the female narrows with depth. As the two fittings are threaded together the opposite tapers force thread friction and makes the seal without the use of a gasket.

Warranty Information

1 Year Warranty
