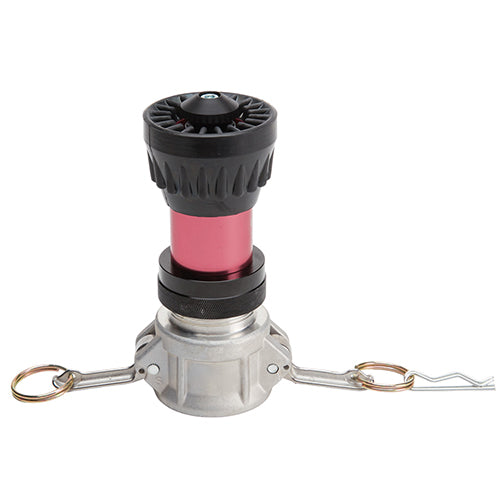

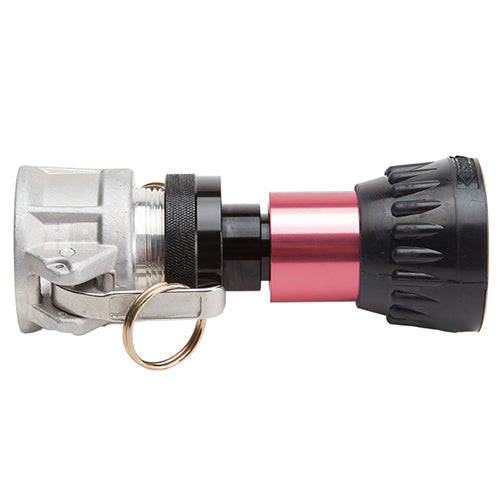

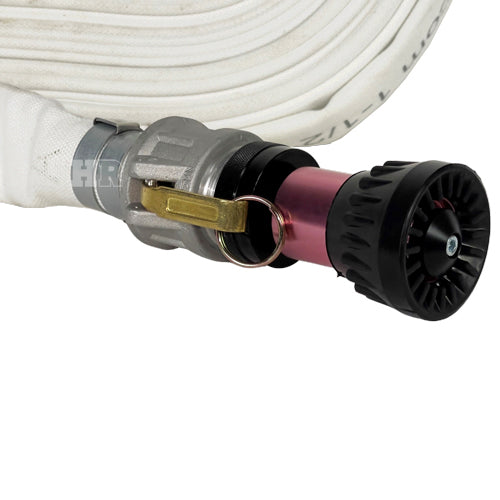

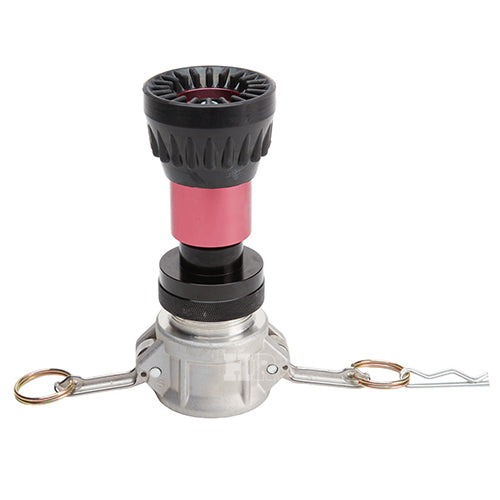

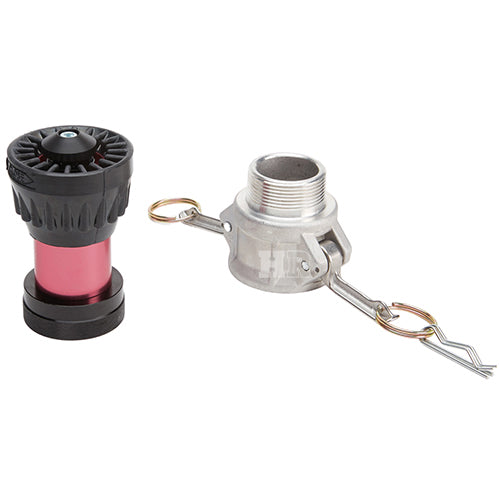

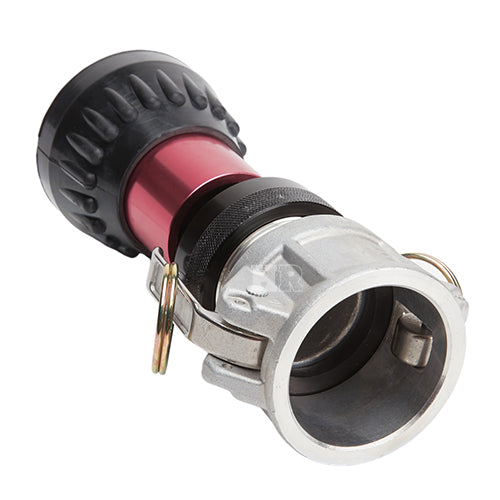

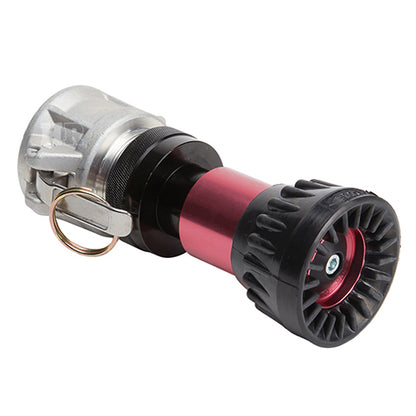

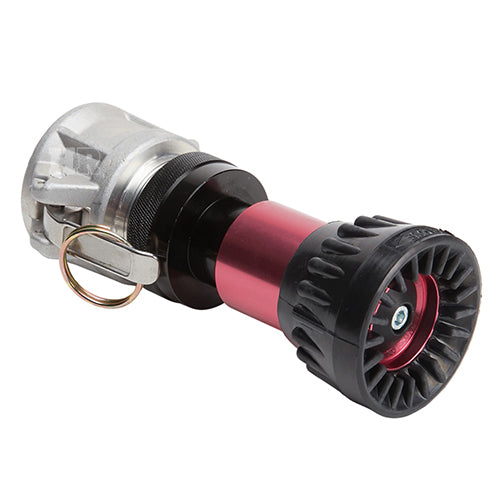

Aluminum 1 1/2" Camlock With Red Heavy-Duty Nozzle

Item Number: A15CLN15RD
1 7
$110.78
$0.00 $110.78
Sale Sold out
In Stock (10 or more)
Ships
Estimated transit time: 2 to 5 Business Days Eligible for Express Shipping

Shipping Cost: Free on orders over $100

View full details

Additional Details

Aluminum 1 1/2 inch cam and groove nozzle has the option of a shut-off, fog pattern or a straight stream. Heavy-duty 1 1/2 inch nozzle with NPSH thread.

How We Conducted Our Nozzle Testing

We used a Honda self-priming water pump with a 2 inch inlet and a two outlet that produces 135 gallons per minute (GPM). The nozzle was attached to a fifty foot 1 1/2 inch hose. The pump pressure was approximately 60 PSI. Gallons per minute was calculated by measuring the number of gallons a nozzle could fill a large container within one minute. The result is the GPM.

Specifications

  • Nozzle Material: Aluminum
  • Camlock Material: Aluminum
  • Female Camlock Size: 1 1/2 inches
  • Nozzle Size: 1 1/2 inches
  • Nozzle Threads: NPSH
  • This nozzle will only connect to a 1 1/2 inch male camlock hose
  • Maximum Operating Pressure: 100 PSI
  • Approximate Gallons Per Minute: 60 GPM
  • Approximate Distance: 60 feet
  • Positions: Fog, straight stream and off

1 1/2 inch Camlock Dimensions

  • Size: 1 1/2 inches (1.50)
  • Female Inside Diameter: 2 1/8 inches (2.125)
