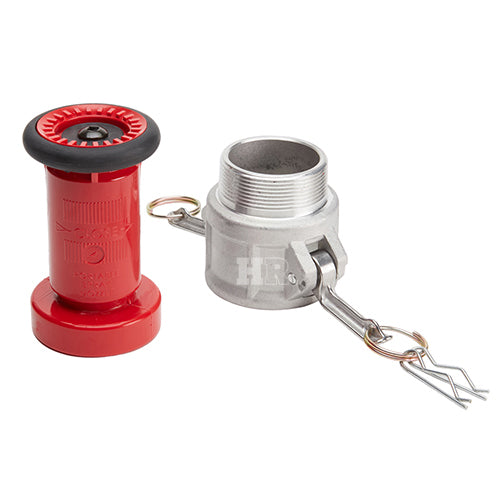

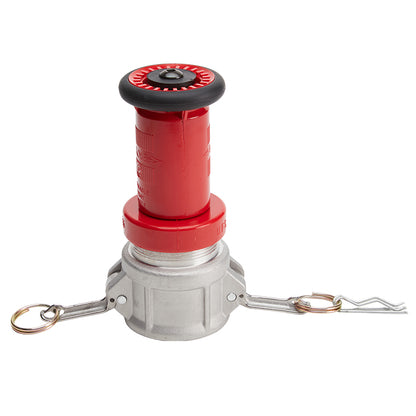

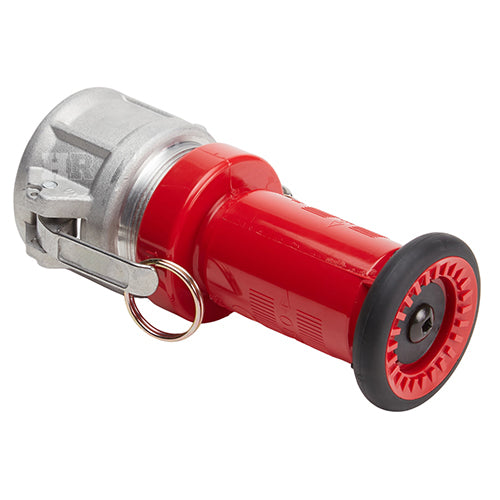

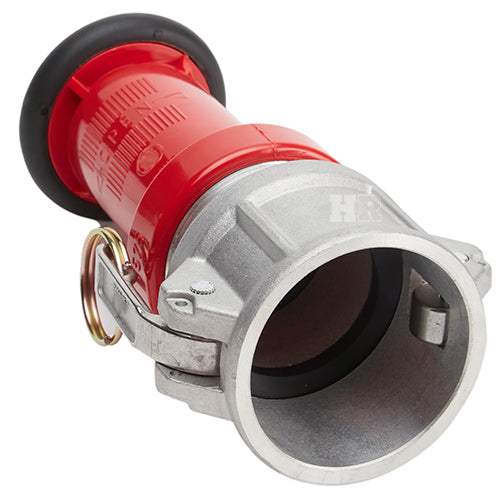

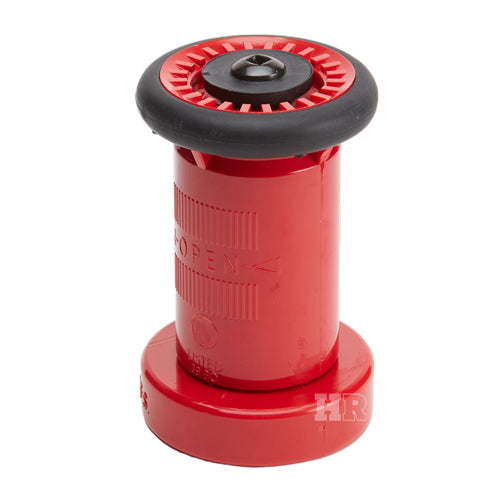

Plastic 1 1/2 inch nozzle with NPSH threads attached to a 1 1/2 inch aluminum female camlock with NPT threads.
How we conducted our nozzle testing
We used a Honda self-priming water pump with a two inch inlet and a two outlet that produces 135 gallons per minute (GPM). The nozzle was attached to a fifty foot 2 inch hose. The pump pressure was approximately 60 PSI. Gallons per minute was calculated by measuring the number of gallons a nozzle could fill a large container within one minute. The result is the GPM.
- Nozzle Material: Plastic
- Nozzle Size: 1 1/2 inches
- Nozzle Threads: NPSH
- Camlock Material: Aluminum
- Female Camlock Size: 1 1/2 inches
- This nozzle will only connect to a 1 1/2 inch male camlock hose
- Maximum operating pressure: 100 PSI
- Approximate Gallons Per Minute: 48 GPM
- Approximate Distance: 60 feet
- Positions: Fog, straight stream and off

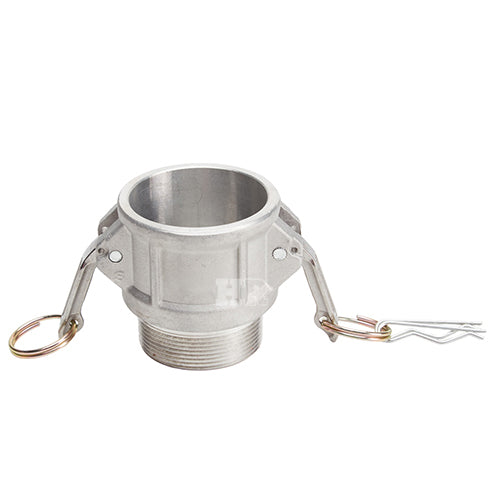

Camlock Dimensions
- Size: 1 1/2 inches (1.50)
- Female Inside Diameter: 2 1/8 inches (2.125)
