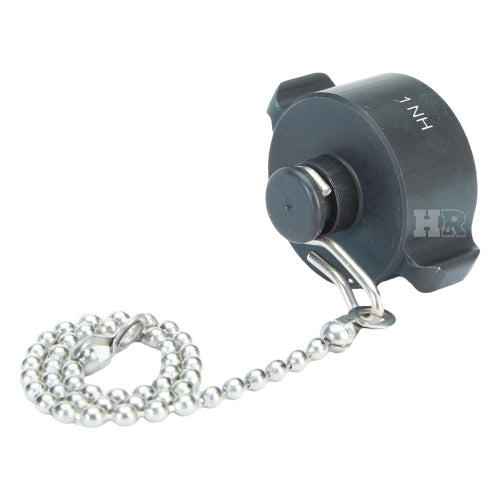

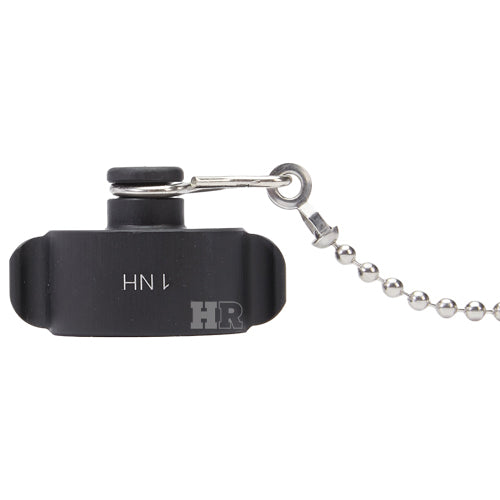

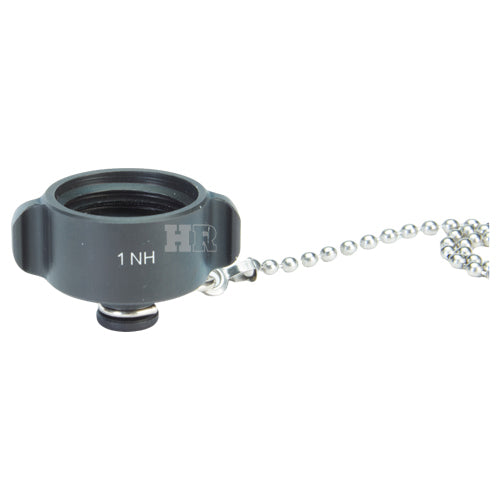

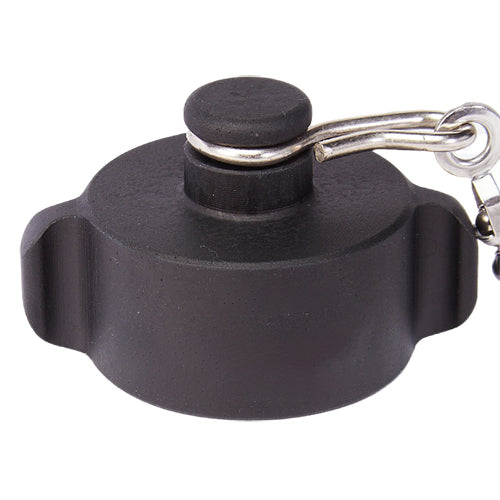

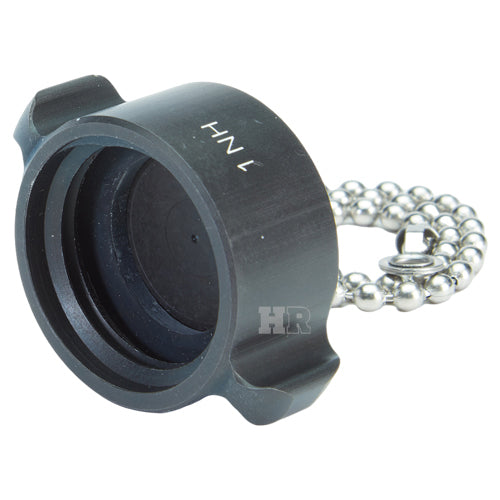

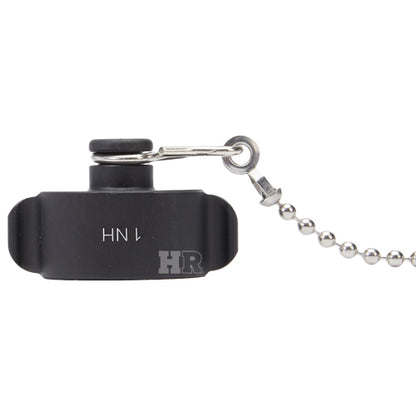

Aluminum 1" NH Rocker Lug Cap

price:
Price
$35.62
Item Number: ACR1
Weight: 0.15 lb

Stock Level: 10 or more

Product Status: In Stock

When Will it Ship:

Shipping Cost: Free on orders over $100

Shipping Transit Time: 2 to 5 Business Days

Eligible for Express Shipping: Yes

Stock Level Updated: Apr 15, 2024

Our industry is experiencing unprecedented price increases due to global raw material and supply chain shortages. We are managing through this period as best we can, and will adjust prices accordingly if the situation improves.

Aluminum adapters are fabricated from seamless extruded 6061-T6 aluminum and hard coat anodized per MIL-A-8625 Type III, Class 1. Threads have a blunt start Higbee cut with indicators on adjacent lugs. Part identifications are permanent and stamped prior to hardcoat. Adapters and components meet the requirements of NFPA 1963. Gasket installed.

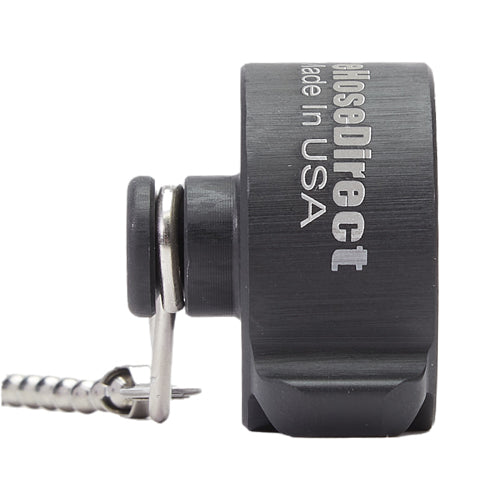

  • Made in USA
  • Female Side - 1 inch NH / NST
  • The Female Will Only Connect to a Male 1 inch NH / NST
  • Stainless Steel Chain - 12 inches
  • Material - 6061-T6 Aluminum
  • Finish - Hard Coat Anodized
  • Complies With NFPA 1963 (Corrosion Resistance)
Garden Hose Thread Male Adapter
  • Outside diameter of a male GHT adapter - 1 1/16 inches (1.06) - 11.5 Threads per inch
1" Male Adapter
  • Inside diameter of a male adapter - 1 inch
  • Outside diameter of a male NH / NST adapter - 1 3/8 inches (1.375) - 8 Threads per inch
  • Outside diameter a male NPSH or NPT adapter - 1 5/16 inches (1.295) - 11.5 Threads per inch
1 1/2" Male Adapter
  • Inside diameter of a male adapter - 1 1/2 inches
  • Outside diameter of a male NH / NST adapter - 2 inches (1.99) - 9 Threads per inch
  • Outside diameter a male NPSH or NPT adapter - 1 7/8 inches (1.87) - 11.5 Threads per inch
1 3/4" Hose Couplings
  • 1 3/4 inch hoses come with 1 1/2 inch couplings
2" Male Adapter
  • Inside diameter of a male adapter - 2 inch
  • Outside diameter of a male NH / NST adapter - 2 1/2 inches (2.51) - 8 Threads per inch
  • Outside diameter a male NPSH or NPT adapter - 2 3/8 inches (2.35) - 11.5 Threads per inch
Note - 2 inch NH or NST is very rare. If the outside diameter of male adapter is approximately two inches, you need 1 1/2 inch NH or NST.
2 1/2" Male Adapter
  • Inside diameter of a male adapter - 2 1/2 inches
  • Outside diameter of a male NH / NST adapter - 3 1/16 inches (3.06) - 7.5 Threads per inch
  • Outside diameter a male NPSH or NPT adapter - 2 7/8 inches (2.84) - 8 Threads per inch
3" Hose Couplings
  • Most 3 inch hoses come with 2 1/2 inch couplings
4" Male Adapter
  • Inside diameter of a male adapter - 4 inches
  • Outside diameter of a male NH / NST adapter - 5 inches (5.01) - 4 Threads per inch
  • Outside diameter a male NPSH or NPT adapter - 4 1/2 inches (4.47) - 8 Threads per inch
5" Male Adapter
  • Inside diameter of a male adapter - 5 inches
  • Outside diameter of a male NH / NST adapter - 6 1/4 inches (6.26) - 4 Threads per inch
6" Male Adapter
  • Inside diameter of a male adapter - 6 inches
  • Outside diameter of a male NH / NST adapter - 7 1/32 inches (7.025) - 4 Threads per inch

Connections

  • The female side of a NH / NST coupling will only connect to a male NH / NST connection
  • The male side of a NH / NST coupling will only connect to a female NH / NST connection
  • The female side of a NPSH coupling will only connect to a male NPT pipe or a male NPSH connection
  • The male side of a NPSH coupling will only connect to a female NPSH connection. It will NOT thread into a female NPT pipe. For example, a male NPSH coupling will NOT thread into a female metal or pvc pipe.
  • The female side of a garden hose will only connect to a male garden hose connection.
  • The male side of a garden hose will only connect to a female garden hose connection.

NH / NST: The most common thread type in use by fire departments today is NST or National Standard Thread. NST also goes by the initials NH or National Hose. It can even be referred to as NHT or National Hose Thread but NST or NH is more common these days. NH = NST.

NPSH: National Pipe Straight Hose (NPSH) or Iron Pipe Thread (IPT) has the same threads per inch (TPI) as National Pipe Tapered (NPT) but the thread does not taper. NPSH is a straight thread and seals by a gasket in the female coupling which allows for a swivel, just like NH / NST, which make both ideal for hose couplings.

NPT: National Pipe Tapered is common in plumbing and some industrial uses. Sometimes referred to as pipe thread because PVC pipe and schedule 40 pipe are typically threaded in NPT. As its name implies this is a tapered thread so that the outside diameter of the male (ODM) gets smaller towards the end of the fitting and the inside diameter of the female narrows with depth. As the two fittings are threaded together the opposite tapers force thread friction and makes the seal without the use of a gasket.
