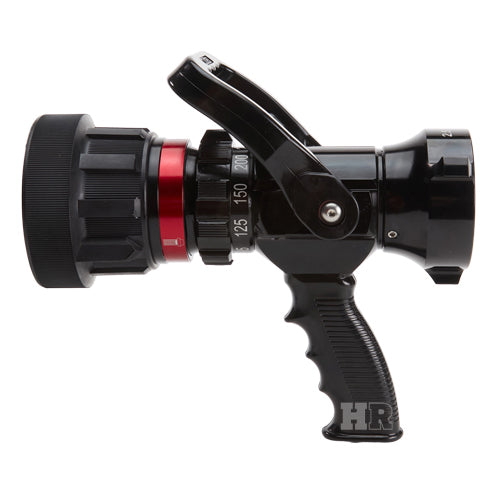

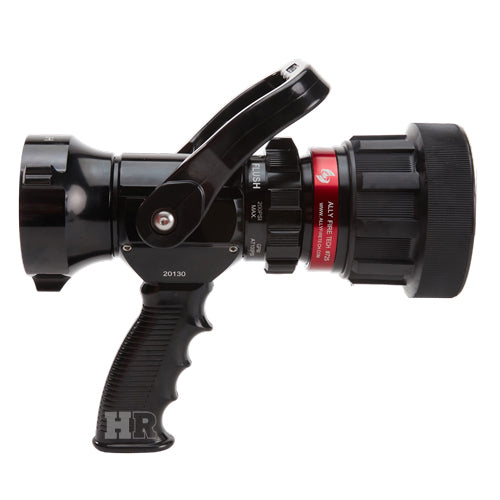

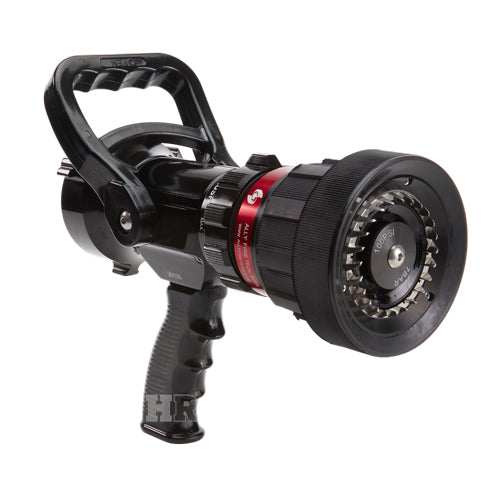

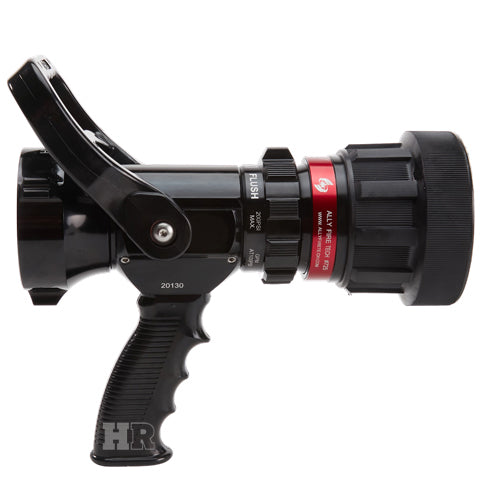

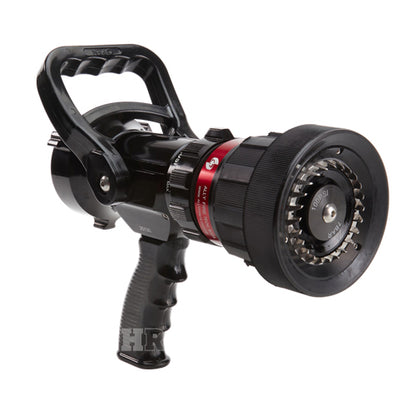

Aluminum 2 1/2" Heavy-Duty 95 to 250 GPM Fire Nozzle (NH)

Item Number: 725
  • Aluminum 2 1/2" Heavy-Duty 95 to 250 GPM Fire Nozzle (NH)
1 7
$536.90
$0.00 $536.90
Sale Sold out
In Stock (10 or more)
Ships
Estimated transit time: 2 to 5 Business Days Eligible for Express Shipping

Free Shipping

Help Me Connect

NH / NST: The most common thread type in use by fire departments today is NST or National Standard Thread. NST also goes by the initials NH or National Hose. It can even be referred to as NHT or National Hose Thread but NST or NH is more common these days. NH = NST.

  • The female side of a NH / NST coupling will only connect to a male NH / NST connection
  • The male side of a NH / NST coupling will only connect to a female NH / NST connection

NPSH: National Pipe Straight Hose (NPSH) or Iron Pipe Thread (IPT) has the same threads per inch (TPI) as National Pipe Tapered (NPT) but the thread does not taper. NPSH is a straight thread and seals by a gasket in the female coupling which allows for a swivel, just like NH / NST, which make both ideal for hose couplings.

  • The female side of a NPSH coupling will only connect to a male NPT pipe or a male NPSH connection
  • The male side of a NPSH coupling will only connect to a female NPSH connection.
    It will NOT thread into a female NPT pipe. For example, a male NPSH coupling will NOT thread into a female metal or pvc pipe.

NPT: National Pipe Tapered is common in plumbing and some industrial uses. Sometimes referred to as pipe thread because PVC pipe and schedule 40 pipe are typically threaded in NPT. As its name implies this is a tapered thread so that the outside diameter of the male (ODM) gets smaller towards the end of the fitting and the inside diameter of the female narrows with depth. As the two fittings are threaded together the opposite tapers force thread friction and makes the seal without the use of a gasket.

Warranty Information

Limited 5 year Manufacturer's Warranty
View full details

Additional Details

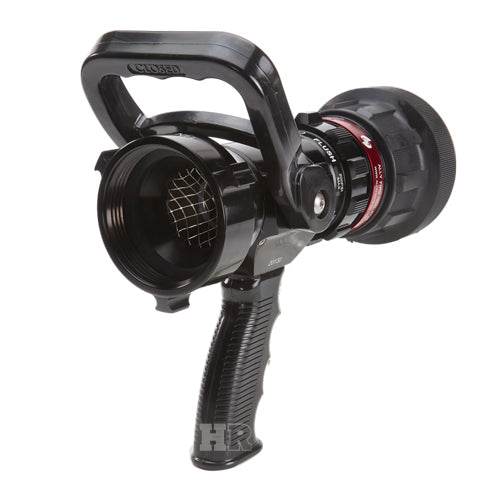

High strength aluminum heavy-duty 2 1/2 inch NH / NST selectable gallonage nozzle. Outfitted with large rubber bumper, 316 stainless steel shutoff ball, stainless steel spinning teeth and stainless steel inlet screen. Polyamide flow control ring with raised lugs for easy flow control adjustment under pressure. Anodized metal body bands with topcoat to resist scratching.

This nozzle has the capability to be fully flushed to help with clearing of any debris and conforms to all aspects of NFPA 1964. Each nozzle etched with unique serial number for easy tracking.

National Hose (NH) aka National Standard Thread (NST) is often referred to as “fire hose thread” as this is by far the most common thread in use today by fire departments.

Specifications

  • Material: Aluminum
  • Size: 2 1/2 inches
  • Threads: NH / NST
  • This nozzle will only connect to a 2 1/2 inch NH / NST hose
  • Gallons Per Minute (GPM): 95-125-150-200-250 Selectable
  • Conforms to NFPA 1964 Standard: 2018 Edition

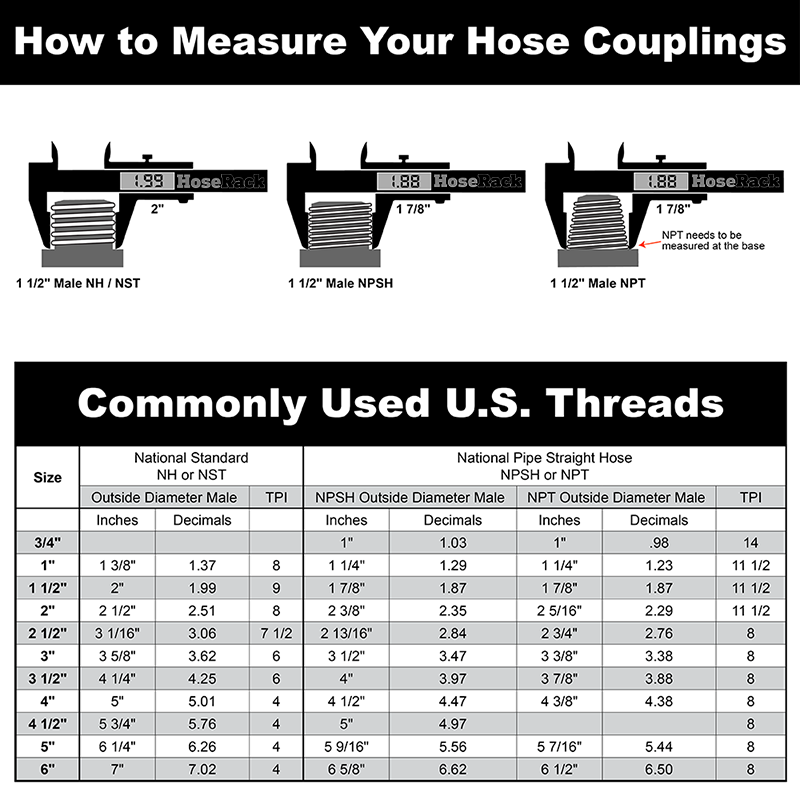

2 1/2" Male Hose

  • Inside diameter of a male adapter: 2 1/2 inches
  • Outside diameter of a male NH / NST adapter: 3 1/16 inches (3.06) - 7.5 Threads per inch
  • Outside diameter a male NPSH or NPT adapter: 2 7/8 inches (2.84) - 8 Threads per inch

3" Male Hose

  • Most 3 inch hoses come with 2 1/2 inch couplings
