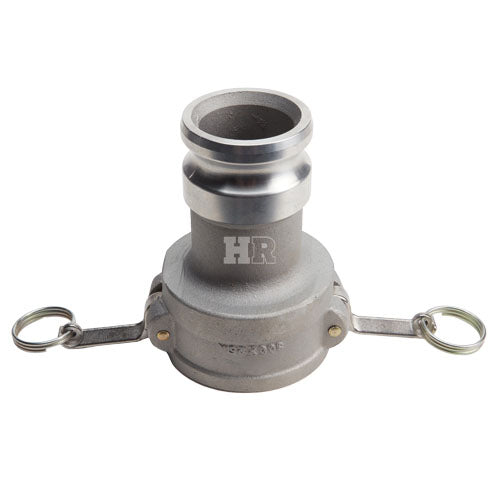

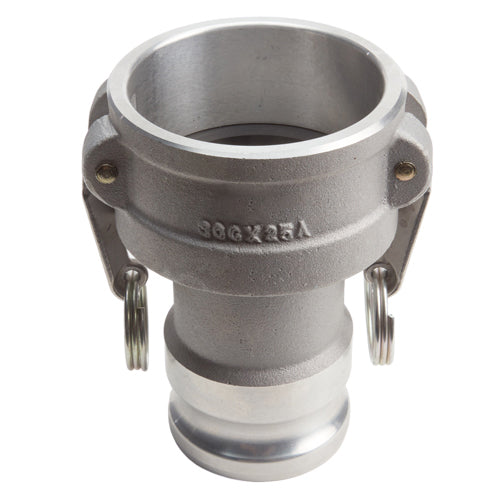

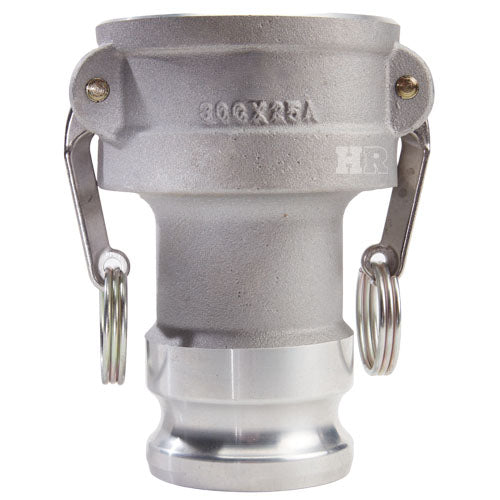

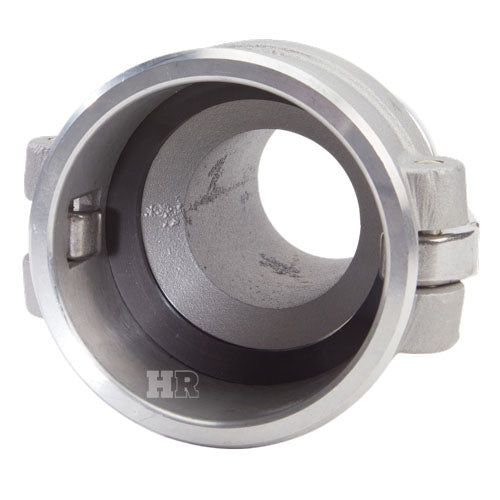

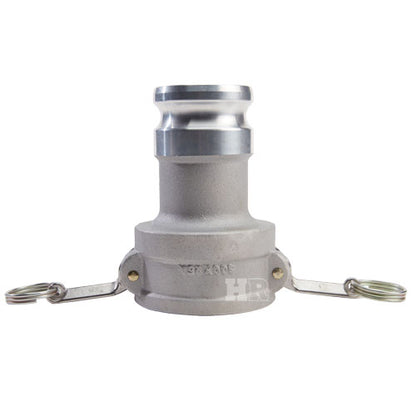

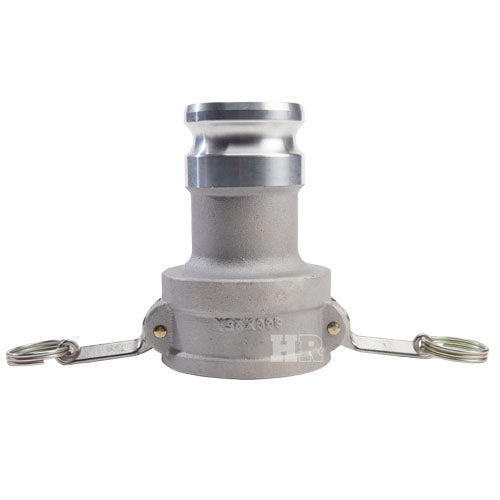

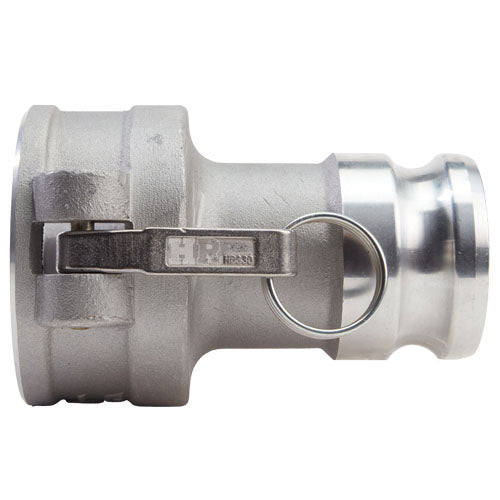

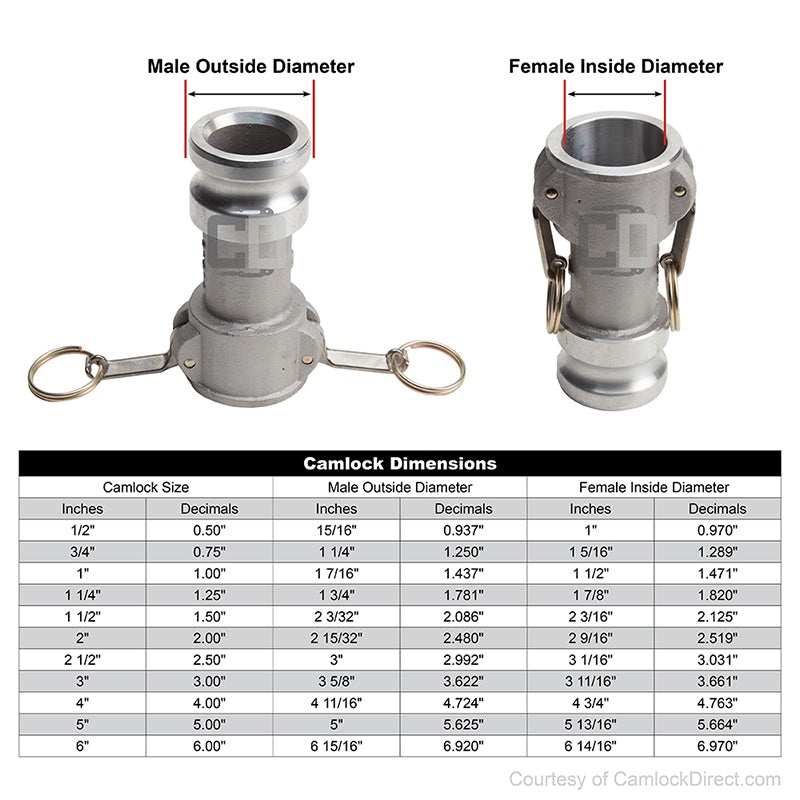

Aluminum 3 inch female camlock (Cam & Groove) coupler to 2 1/2 inch male camlock (Cam & Groove) coupler.
Under no circumstances should cam and groove couplings be used for compressed air or steam service!
Connections
- The female side of this adapter will only connect to a 3 inch male camlock
- The male side of this adapter will only connect to a 2 1/2 inch female camlock
How it works
- To make a connection, simply slide the camlock adapter into the camlock coupling and with normal hand pressure, press the cam levers down.
- Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Cam and groove couplings, also called camlock fittings or quick connect fittings, are used in most industries as a hose connection to avoid leakage. The cam lock type of coupling is popular because it is considered to be a simple and economical way to reconnect and disconnect.
Cam and Groove Couplings Industries
- Steel foundries
- Mines
- Construction
- Chemical
- Petroleum
- Sanitary
- Government
- Nuclear
- Aviation
- Marine
- Rail
- Storage
- Dry bulk
Applications
- Wine
- Food
- Drugs
- Reverse osmosis systems
- Water treatment
- Water transport
- Irrigation
- Waste / vacuum trucks
- Fuel delivery
- Grain movement
- Hydraulic oil, coolants, gasoline and petroleum products
- Bio-fuel
- Salt water
- Waste water
- Chemical movement & storage
- Sand
- Grout
- Cement
- Varnish
- Flour
- Pellets
