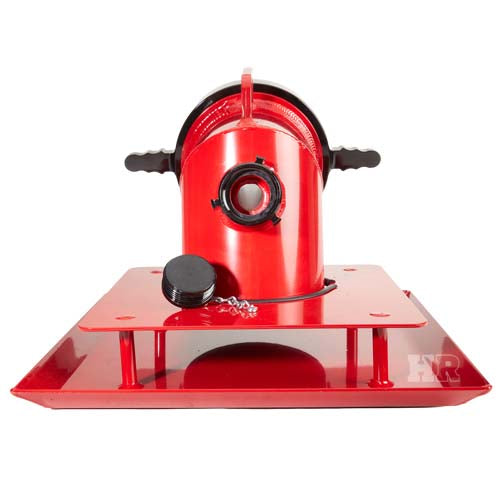

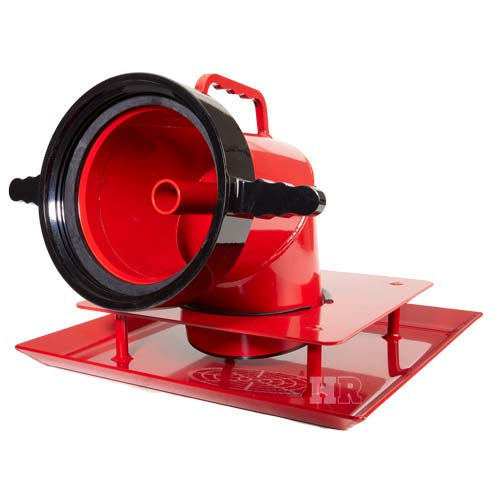

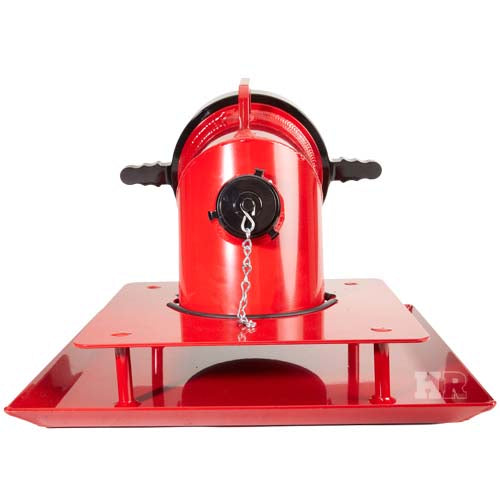

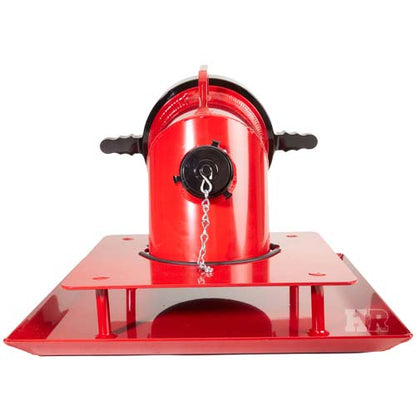

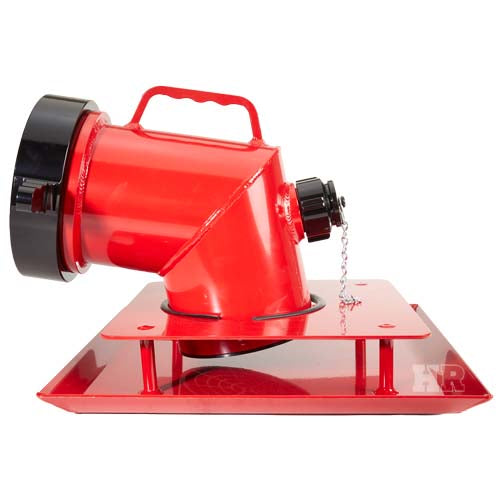

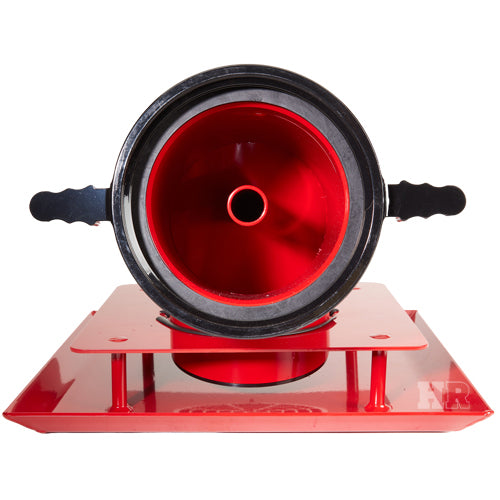

Aluminum 4 1/2" NH Low Level Strainer

price:
Price
$594.97
Item Number: LLS45
Weight: 13.0 lb

Stock Level: 0

Product Status: Special Order

When Will it Ship: Contact for Lead Time

Shipping Cost: Free Shipping

Shipping Transit Time: 2 to 5 Business Days

Eligible for Express Shipping: No

Stock Level Updated: Oct 29, 2024

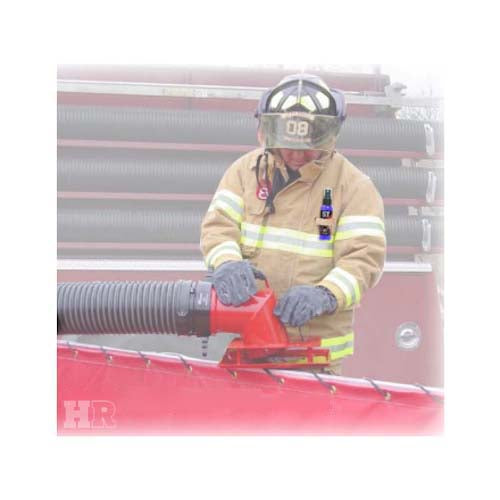

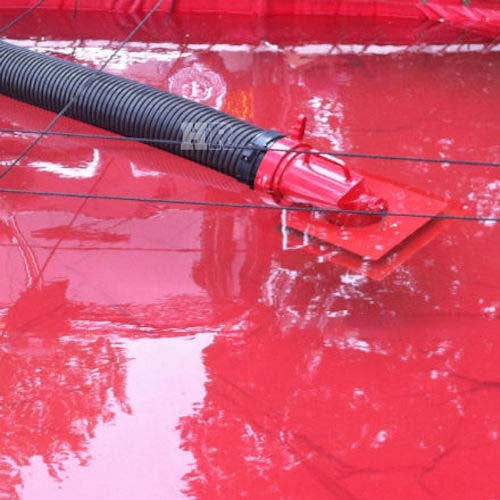

Long handle low level strainers attach to the end of a suction hose that prevents debris from entering the hose or the pump when drawing water from a pond or other body of water. Recommended for pumps 1500 to 2000 GPM. NH threads are used by most fire departments and fire trucks. Drafts down to 2 inches from the bottom. Base pan design has additional side walls eliminating tank damage.
  • Material: Aluminum Alloy
  • Size: 4 1/2 inches
  • Threads: NH / NST
  • Female Coupling: Swivel
  • Jet Stream Intake: 1 1/2 inches with Cap
  • Meets NFPA Standards

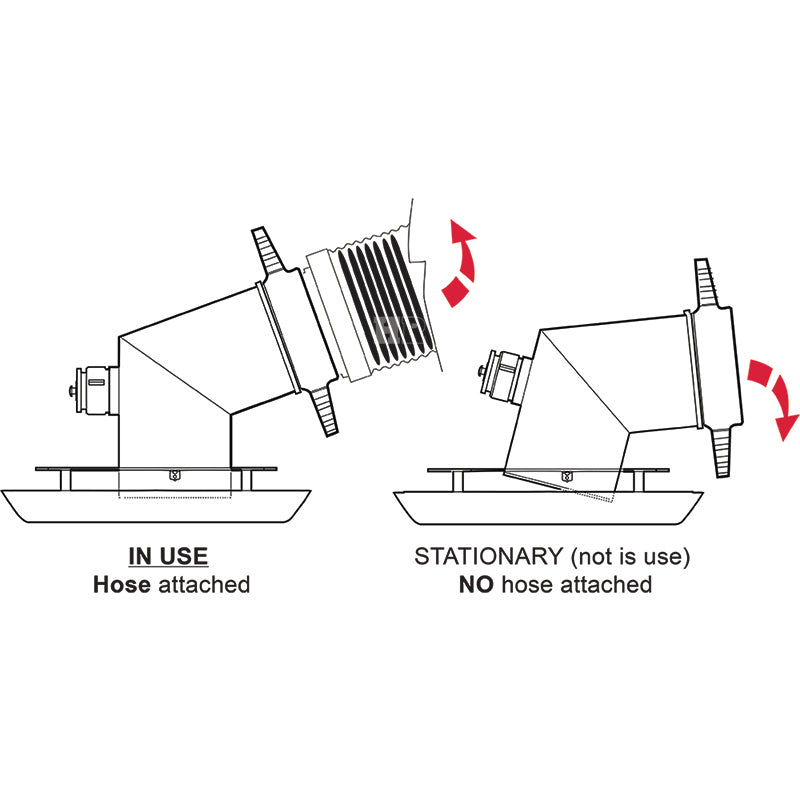

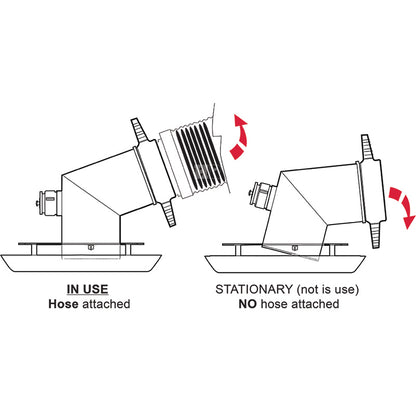

  • Pivoting Adjustable Elbow
  • Internal Screen Is Standard


NH / NST: The most common thread type in use by fire departments today is NST or National Standard Thread. NST also goes by the initials NH or National Hose. It can even be referred to as NHT or National Hose Thread but NST or NH is more common these days. NH = NST.

  • The female side of a NH / NST coupling will only connect to a male NH / NST connection
  • The male side of a NH / NST coupling will only connect to a female NH / NST connection

NPSH: National Pipe Straight Hose (NPSH) or Iron Pipe Thread (IPT) has the same threads per inch (TPI) as National Pipe Tapered (NPT) but the thread does not taper. NPSH is a straight thread and seals by a gasket in the female coupling which allows for a swivel, just like NH / NST, which make both ideal for hose couplings.

  • The female side of a NPSH coupling will only connect to a male NPT pipe or a male NPSH connection
  • The male side of a NPSH coupling will only connect to a female NPSH connection.
    It will NOT thread into a female NPT pipe. For example, a male NPSH coupling will NOT thread into a female metal or pvc pipe.

NPT: National Pipe Tapered is common in plumbing and some industrial uses. Sometimes referred to as pipe thread because PVC pipe and schedule 40 pipe are typically threaded in NPT. As its name implies this is a tapered thread so that the outside diameter of the male (ODM) gets smaller towards the end of the fitting and the inside diameter of the female narrows with depth. As the two fittings are threaded together the opposite tapers force thread friction and makes the seal without the use of a gasket.
