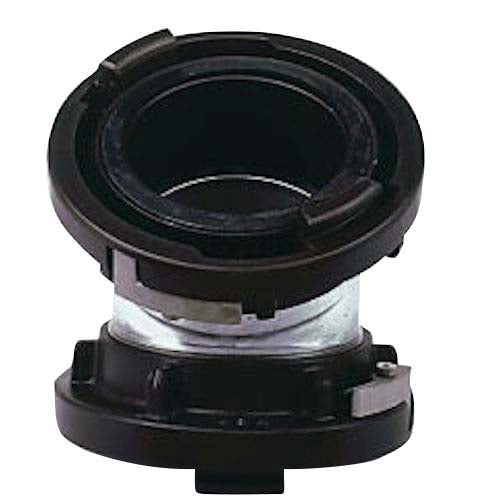

Aluminum 4" Storz x 4" Storz 30 Degree Elbow

Item Number: A30E4S
  • Aluminum 4" Storz x 4" Storz 30 Degree Elbow
1 1
$515.86
$515.86
Sale Sold out
Special Order
Ships: Approx. Dec 1, 2026

Free Shipping

View full details

Additional Details

Made in the USA Red Head Aluminum 4 inch Storz by 4 inch Storz 30° elbow is used on pump discharge valves or suction inlets to minimize hose kinking.
  • All aluminum components are hardcoat anodized per MIL-A-8625 Type III, Class 1
  • No plain anodized, painted or powder coated finishes
  • All Storz heads are forged 6061-T6 aluminum to SAE-AMS-QQ-A-367 and ASTM B247 Complies with DIN standards which require that Storz heads must be forged when used in firefighting applications
  • High quality molded Storz gaskets made using Buna-N material. This material is resistant to most hydrocarbons, oils, gasoline, acids and greases
  • Lock Lever is an investment casting of 304 stainless steel ASTM A743
  • Lock Lever Spring is 316 stainless wire passivated AISI 316
  • Lock lever mounted with 18-8 stainless steel shoulder bolt
  • Aluminum Storz Adapters consist of Storz coupling heads machined from forged 6061-T6 aluminum and adapter components fabricated from seamless extruded 6061-T6 aluminum
  • Threads are blunt start Higbee cut with indicators on adjacent lugs
  • Part identification is permanent and stamped or forged prior to hardcoat
  • Swivel attachment must be stainless steel ball or 6269-T9 aluminum roller bearings, not swaged



Specifications

  • Made in USA
  • Storz Side 1: 4 inches
  • Storz Side 2: 4 inches
  • Material: Aluminum
  • Elbow: 30°

4" (100mm) Storz Adapter

  • Inside Distance Between Lugs: 4 1/2 in (115mm)
  • Number of Lugs: 2
