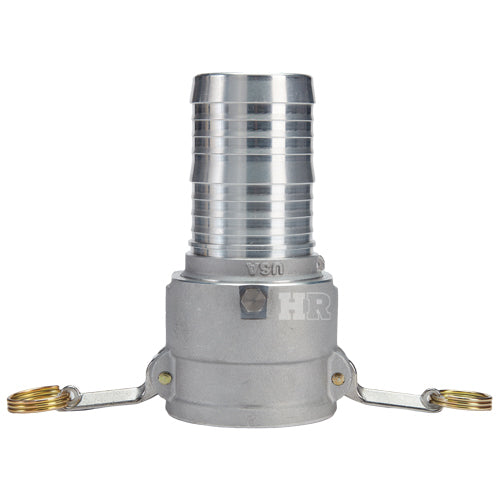

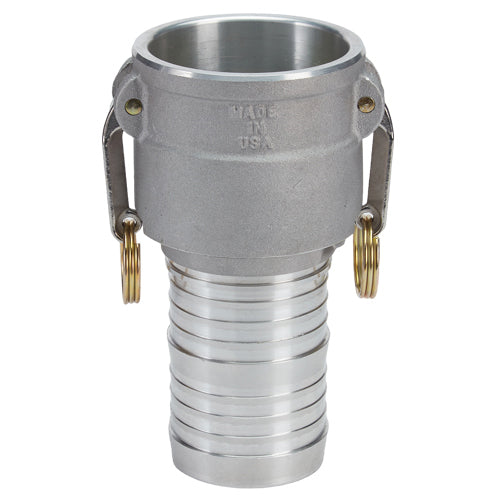

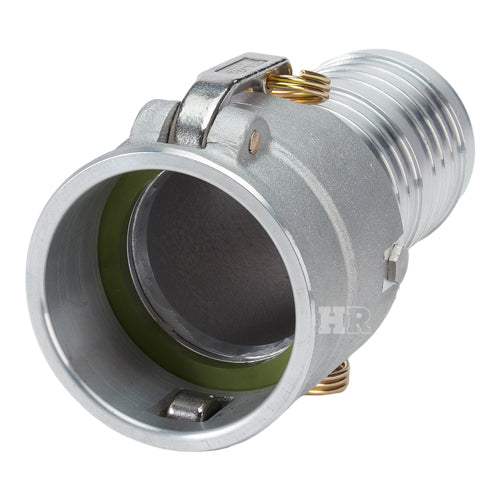

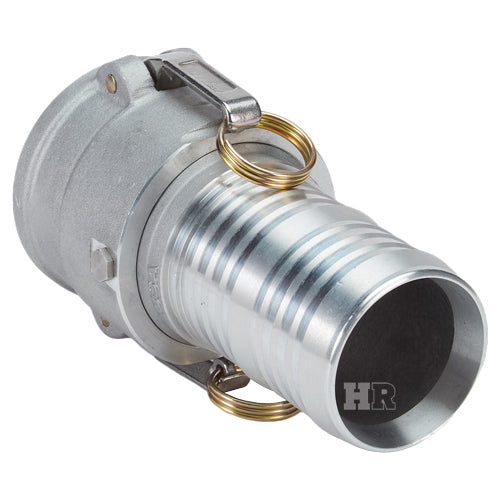

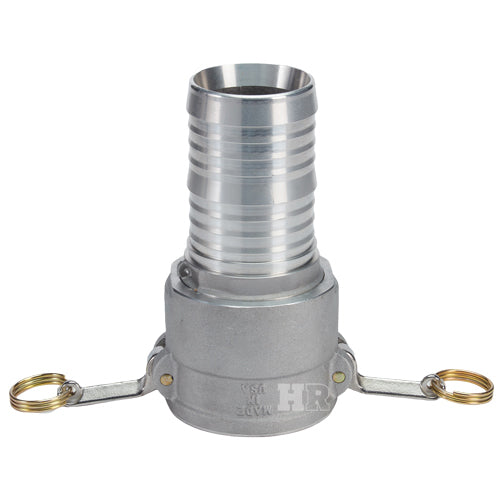

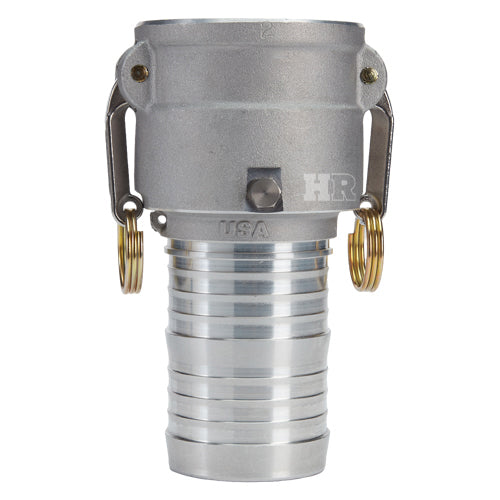

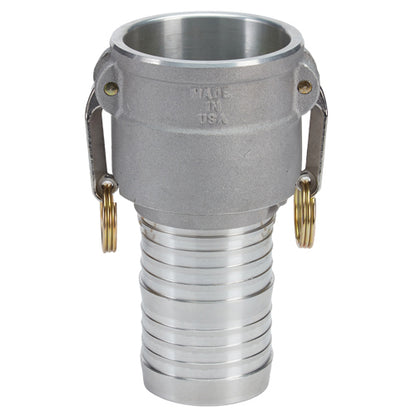

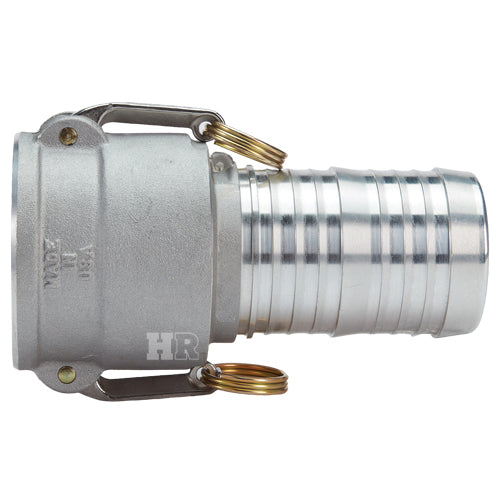

Aluminum 4" Swivel Female Camlock to Hose Shank (USA)

Item Number: DA40SF40C
1 9
$413.85
$413.85
Sale Sold out
In Stock (10 or more)
Ships
Estimated transit time: 2 to 5 Business Days Eligible for Express Shipping

Shipping Cost: Free on orders over $100

Warranty Information

Limited 1-Year Camlock Warranty - We will replace any camlock fitting with manufacturer defects in material and workmanship. All warranty claims must be returned to us for inspection before we determine a solution.

Our warranty does not cover gaskets, multiple use of NPT threads, shipping cost, cosmetic damages, normal wear-and-tear, improper use or chemical damage.

View full details

Additional Details

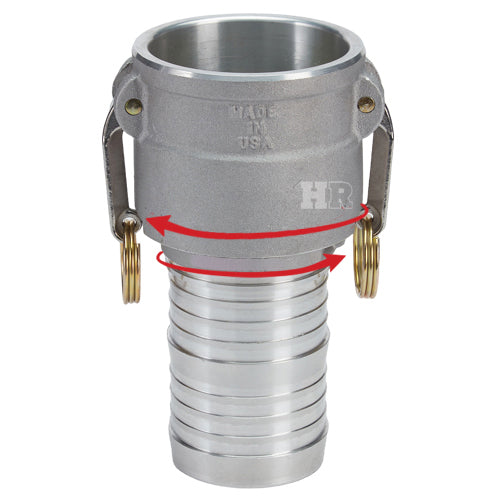

Global type "C" aluminum 4 inch female camlock (Cam & Groove) coupler to 4 inch hose shank with FKM seals. The Versatile 360° Swivel is manufactured in the USA and features stainless steel ball bearings for a smooth motion and durability. Fuel resistant Buna or FKM seals are standard and our U cup seals (Buna and FKM) in the ball bearing area seals better than our competitions O RINGS. And the camlock gasket is set up with the Buna or FKM. The FKM would be better for a Blower hose for the high heat. The Swivel Camlocks are NOT compatible with vacuum applications. Swivels can easily be rebuilt in the field using genuine swivel repair kits.

Under no circumstances should cam and groove couplings be used for compressed air or steam service!

Connections

  • The female side of this adapter will only connect to 4 inch male camlock

How it works

  • To make a connection, simply slide the camlock adapter into the camlock coupling and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.

Cam and groove couplings, also called camlock fittings or quick connect fittings, are used in most industries as a hose connection to avoid leakage. The cam lock type of coupling is popular because it is considered to be a simple and economical way to reconnect and disconnect.

Cam and Groove Couplings Industries

  • Construction
  • Oil & Gas
  • Transportation
  • Agriculture
  • Chemicals
  • Petroleum
  • Construction
  • Material Handling
  • Irrigation
  • Fracking

Applications

  • Water
  • Hydraulic Oil
  • Coolants
  • Gasoline
  • Petroleum Products

Specifications

  • Made in USA
  • Body Material: Aluminum
  • Handle Material: Stainless Steel
  • Camlock (Cam & Groove) Size: 4 inch Swivel Female
  • Shank Size: 4 inches
  • Maximum Operating Pressure: 100 PSI
  • Swivel Seal: FKM
  • Internal Swivel Seal: FKM
  • Buna Seals Available: Call for Pricing
  • Type: "C" Quick Disconnect

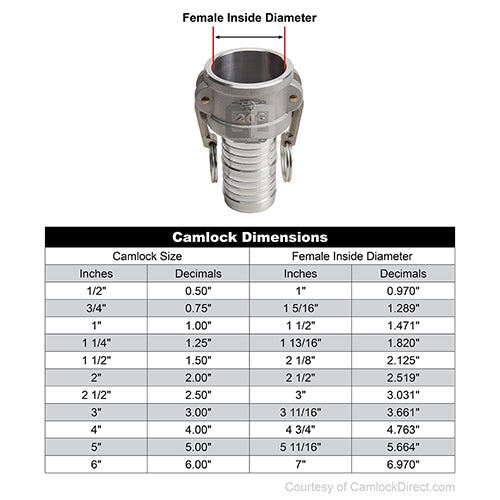

Camlock Dimensions

  • Size: 4 inches (4.00)
  • Female Inside Diameter: 4 3/4 inches (4.763)
