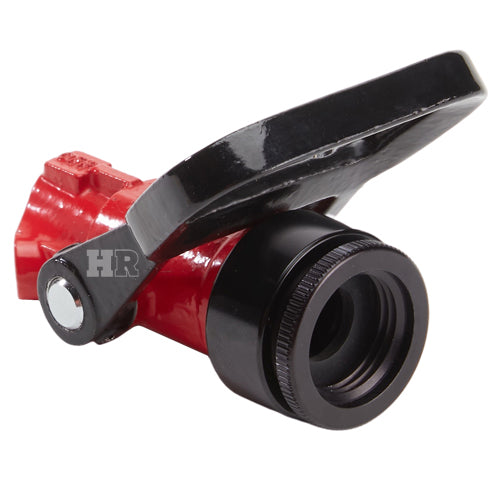

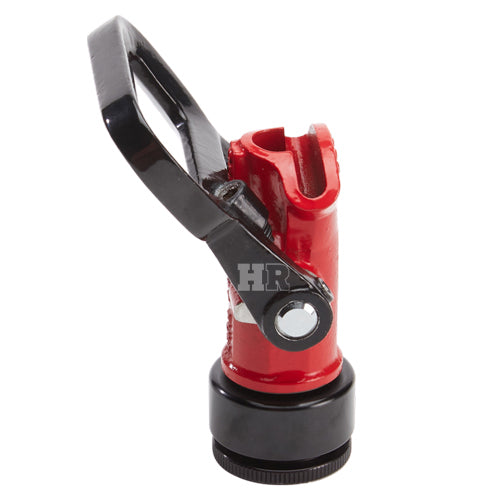

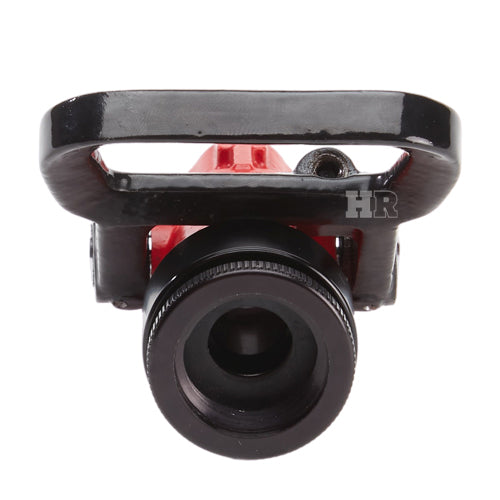

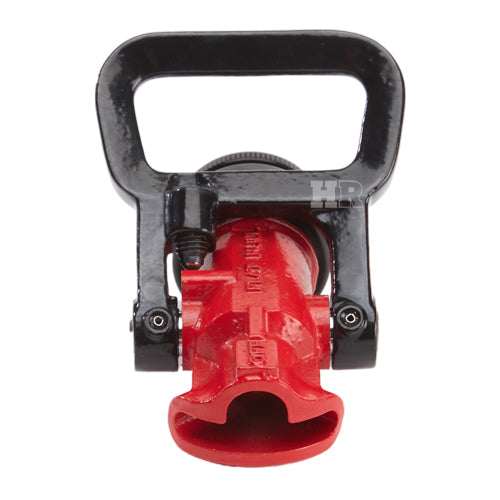

Aluminum Adjustable Fan Stream Nozzle (GHT / 1" NPSH)

Item Number: AFS1PG
  • Aluminum Adjustable Fan Stream Nozzle (GHT / 1" NPSH)
1 9
$123.30
$0.00 $123.30
Sale Sold out
In Stock (10 or more)
Ships
Estimated transit time: 2 to 5 Business Days Eligible for Express Shipping

Shipping Cost: Free on orders over $100

Help Me Connect

Garden Hose Thread

  • Outside diameter of a male GHT adapter: 1 1/16 inches (1.06) - 11.5 Threads per inch
  • Garden hose thread is not the same as 3/4 inch pipe thread (NPT)
  • The female threads of a GHT will only connect to a male GHT
  • The male threads of a GHT will only connect to a female GHT
  • It will not connect to 3/4 inch NPT or NPSH threads
  • Garden hose thread seal method is a gasket

1" Male

  • Inside diameter of a male adapter: 1 inch
  • Outside diameter of a male NH / NST adapter: 1 3/8 inches (1.375) - 8 Threads per inch
  • Outside diameter a male NPSH or NPT adapter: 1 5/16 inches (1.295) - 11.5 Threads per inch



View full details

Additional Details

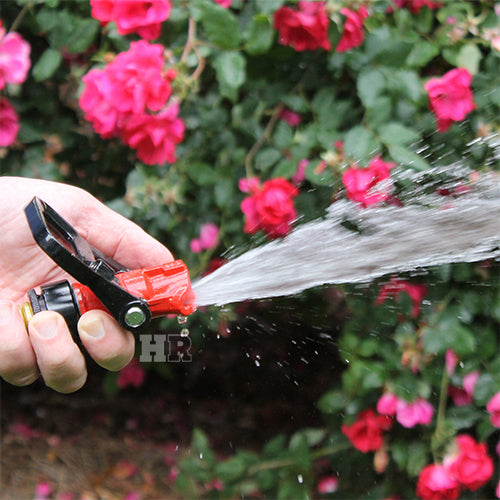

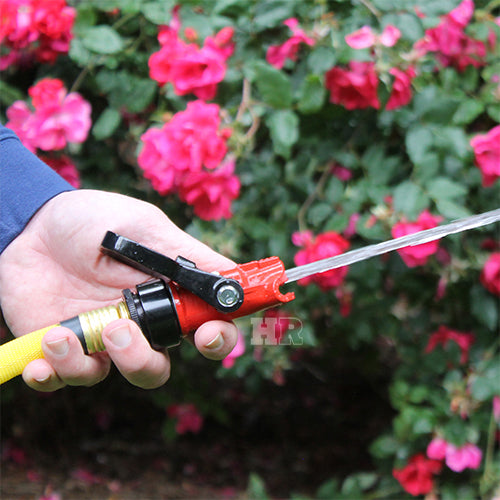

Dual threaded GHT thread or 1 inch NPSH thread nozzle has the option of a fan shaped fog pattern or a solid straight stream with easy to use bale style handle. To change connection thread simply unscrew the included female GHT adapter to reveal the 1 inch female NPSH threaded connection.

GHT, aka Garden Hose Thread, is commonly found in residential applications such as an exterior household spigot or utility sink faucet. 1 inch NPSH threads are often found on 1 inch forestry hoses and in some industrial hose applications.

How we conducted our nozzle testing

We used a Honda self-priming water pump with a two inch inlet and a two outlet that produces 135 gallons per minute (GPM). The nozzle was attached to a fifty foot 5/8 inch hose. The pump pressure was approximately 60 PSI. Gallons per minute was calculated by measuring the number of gallons a nozzle could fill a large container within one minute. The result is the GPM.

Specifications

  • Material: Aluminum
  • Size: 3/4 inch
  • Threads: GHT or NPSH
  • This nozzle will only connect to a garden hose or a 1 inch NPSH hose
  • Maximum operating pressure: 100 PSI
  • Approximate Gallons Per Minute: 10 GPM
  • Approximate Distance: 50 feet
  • Positions: Fan, Straight Stream and Off
  • Overall Length: 3 5/8 inches
