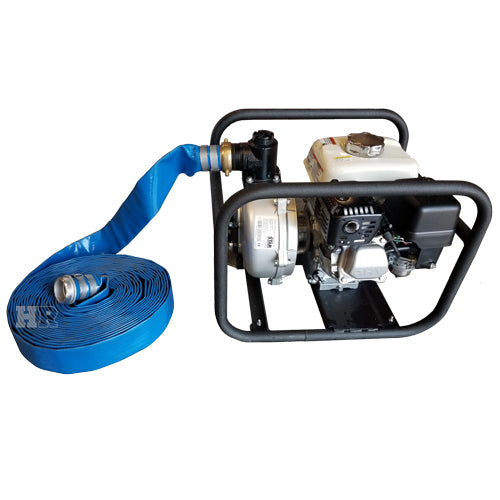

Blue 2" x 100' Lightweight Discharge Hose

Item Number: 20BD100MF
  • Blue 2" x 100' Lightweight Discharge Hose
1 7
$139.90
$0.00 $139.90
Sale Sold out
Limited Stock (5)
Ships
Estimated transit time: 2 to 5 Business Days Eligible for Express Shipping

Free Shipping

Help Me Connect

NPSH Connections

  • The female side of a NPSH coupling will only connect to a male NPT pipe or a male NPSH connection
  • The male side of a NPSH coupling will only connect to a female NPSH connection. It will NOT thread into a female NPT pipe. For example, a male NPSH coupling will NOT thread into a female metal or pvc pipe.

Hoses with National Pipe Straight Hose Thread (NPSH or NPS) has the same threads per inch (TPI) as National Pipe Thread (NPT) but the threads do not taper. This allows a female coupling to thread onto a NPT fitting without being a permanent connection. For example, a female fire hose coupling with NPSH threads will only connect to a PVC pipe, metal pipe or couplings with NPSH or NPT threads. Fittings that are connected together by NPT by NPT require a sealing agent like pipe cement or teflon tape because the threads are making the seal and a permanent connection. When a female NPSH is threaded onto a male NPT fitting, it allows this connection to thread on and off frequently by using a gasket to seal.

Warranty Information

Limited 1-Year Warranty

We will replace any fire hose with manufacturer defects in material and workmanship. All warranty claims must be returned to us for inspection before we determine a solution.

Our warranty does not cover gaskets, shipping cost, cosmetic damages, normal wear-and-tear, improper use or chemical damage.

Fire hoses purchased for use at Fire Training Facilities will have a 90-day Manufacturer Defect warranty only.

Upon receipt of the returned goods, hoses will be subject to inspection and testing.

Should it be determined that the hose is covered by warranty, it will be repaired or replaced.

View full details

Additional Details

Blue lightweight lay flat PVC discharge hose is rated for light duty. This hose is designed to be used in lower range water pressure situations having a maximum pressure of 80 PSI. This pump discharge hose is constructed from blue PVC and reinforced by polyester yarn. Popular hose for general outdoor low pressure discharge applications.

Not intended for indoor use, firefighting or closed pressure applications such as use with nozzles.

Specifications

  • A lightweight PVC water discharge hose featuring PVC tube and cover
  • Hose is reinforced with two spiral plies and longitudinal synthetic cords
  • Not intended for use as a fire hose
  • Used for open ended discharge applications only

Applications

  • Open discharge
  • Agriculture
  • Irrigation
  • Construction
  • Industrial

Warning: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer/birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov



Specifications

  • Hose Size: 2 inch
  • Hose Length: 100 feet
  • Male Coupling: Aluminum 2 inch NPSH
  • The Male Will Only Connect to a Female 2 inch NPSM or NPSH (not NPT)
  • Female Coupling: Brass 2 inch Straight Pipe Thread (NPSH)
  • The Female Coupling Will Only Connect to a Male 2 inch NPT or NPSH
  • Maximum Pressure: 80 PSI
  • NOT for Closed Pressure Applications
  • Tube: Blue Lay Flat PVC
  • Approximate wall thickness: 0.060 inch
  • Weight per foot: 0.23 pounds
  • Type of use: Water
  • Working temperature: 14° F to 150° F

2" Hose Male Couplings

  • Inside diameter of a male coupling: 2 inch
  • Outside diameter of a male NH / NST coupling: 2 1/2 inches (8 Threads per inch)
  • Outside diameter a male NPSH or NPT coupling: 2 3/8 inches (11.5 Threads per inch)

Note - 2 inch NH or NST is very rare. If the outside diameter of male coupling is approximately 2 inches, you need 1 1/2 inch NH or NST.
