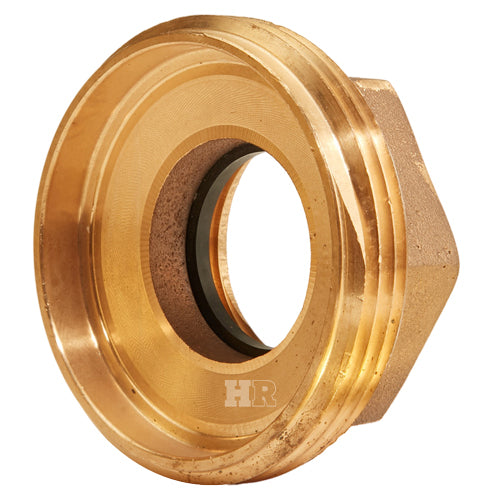

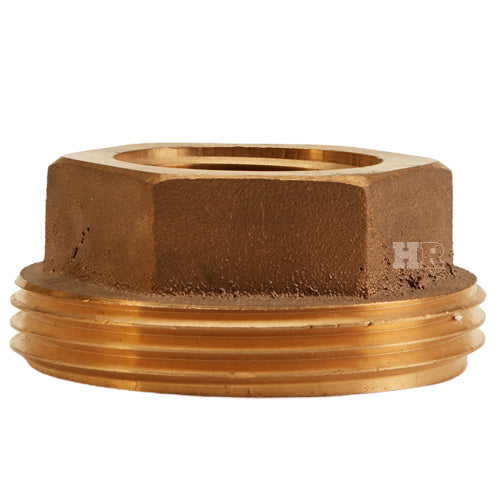

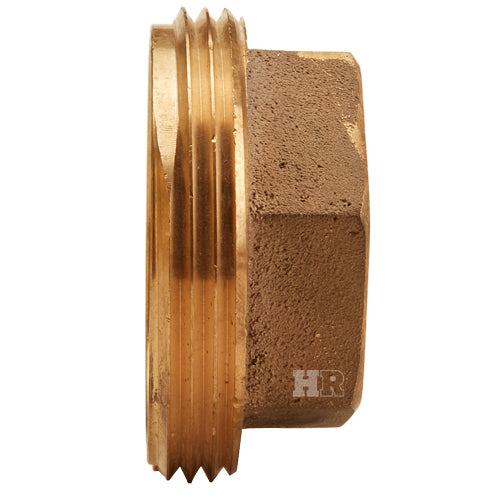

Female to male adapters are used to bridge male to female hoses, pipes or valve fittings. Brass is commonly chosen for corrosion resistance, and is popular with chemical or salt water applications.
Equivalent Part Number - FM15F30F
WARNING: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.
- Female Side: 1 1/2 inch NH / NST
- The Female Will Only Connect to a Male 1 1/2 inch NH / NST
- Male Side: 3 inch NH / NST
- The Male Will Only Connect to a Female 3 inch NH / NST
- Material: Brass
Garden Hose Thread Male Adapter
- Outside diameter of a male GHT adapter: 1 1/16 inches (1.06) - 11.5 Threads per inch
1" Male Adapter
- Inside diameter of a male adapter: 1 inch
- Outside diameter of a male NH / NST adapter: 1 3/8 inches (1.375) - 8 Threads per inch
- Outside diameter a male NPSH or NPT adapter: 1 5/16 inches (1.295) - 11.5 Threads per inch
1 1/2" Male Adapter
- Inside diameter of a male adapter: 1 1/2 inches
- Outside diameter of a male NH / NST adapter: 2 inches (1.99) - 9 Threads per inch
- Outside diameter a male NPSH or NPT adapter: 1 7/8 inches (1.87) - 11.5 Threads per inch
1 3/4" Hose Couplings
- 1 3/4 inch hoses come with 1 1/2 inch couplings
2" Male Adapter
- Inside diameter of a male adapter: 2 inch
- Outside diameter of a male NH / NST adapter: 2 1/2 inches (2.51) - 8 Threads per inch
- Outside diameter a male NPSH or NPT adapter: 2 3/8 inches (2.35) - 11.5 Threads per inch
Note - 2 inch NH or NST is very rare. If the outside diameter of male adapter is approximately two inches, you need 1 1/2 inch NH or NST.
2 1/2" Male Adapter
- Inside diameter of a male adapter: 2 1/2 inches
- Outside diameter of a male NH / NST adapter: 3 1/16 inches (3.06) - 7.5 Threads per inch
- Outside diameter a male NPSH or NPT adapter: 2 7/8 inches (2.84) - 8 Threads per inch
3" Hose Couplings
- Most 3 inch hoses come with 2 1/2 inch couplings
4" Male Adapter
- Inside diameter of a male adapter: 4 inches
- Outside diameter of a male NH / NST adapter: 5 inches (5.01) - 4 Threads per inch
- Outside diameter a male NPSH or NPT adapter: 4 1/2 inches (4.47) - 8 Threads per inch
5" Male Adapter
- Inside diameter of a male adapter: 5 inches
- Outside diameter of a male NH / NST adapter: 6 1/4 inches (6.26) - 4 Threads per inch
6" Male Adapter
- Inside diameter of a male adapter: 6 inches
- Outside diameter of a male NH / NST adapter: 7 1/32 inches (7.025) - 4 Threads per inch
- The female side of a NH / NST coupling will only connect to a male NH / NST connection
- The male side of a NH / NST coupling will only connect to a female NH / NST connection
- The female side of a NPSH coupling will only connect to a male NPT pipe or a male NPSH connection
- The male side of a NPSH coupling will only connect to a female NPSH connection. It will NOT thread into a female NPT pipe. For example, a male NPSH coupling will NOT thread into a female metal or pvc pipe.
- The female side of a garden hose will only connect to a male garden hose connection.
- The male side of a garden hose will only connect to a female garden hose connection.
NH / NST: The most common thread type in use by fire departments today is NST or National Standard Thread. NST also goes by the initials NH or National Hose. It can even be referred to as NHT or National Hose Thread but NST or NH is more common these days. NH = NST.
NPSH: National Pipe Straight Hose (NPSH) or Iron Pipe Thread (IPT) has the same threads per inch (TPI) as National Pipe Tapered (NPT) but the thread does not taper. NPSH is a straight thread and seals by a gasket in the female coupling which allows for a swivel, just like NH / NST, which make both ideal for hose couplings.
NPT: National Pipe Tapered is common in plumbing and some industrial uses. Sometimes referred to as pipe thread because PVC pipe and schedule 40 pipe are typically threaded in NPT. As its name implies this is a tapered thread so that the outside diameter of the male (ODM) gets smaller towards the end of the fitting and the inside diameter of the female narrows with depth. As the two fittings are threaded together the opposite tapers force thread friction and makes the seal without the use of a gasket.
