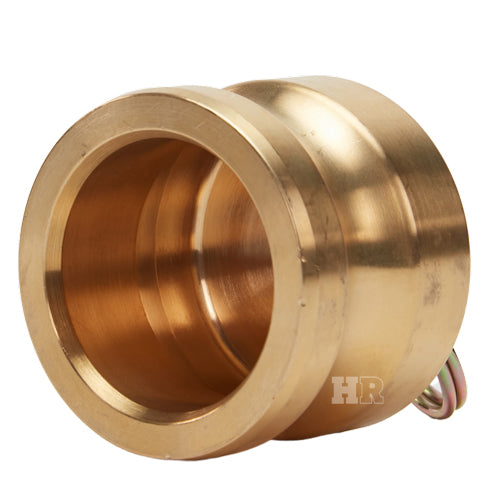

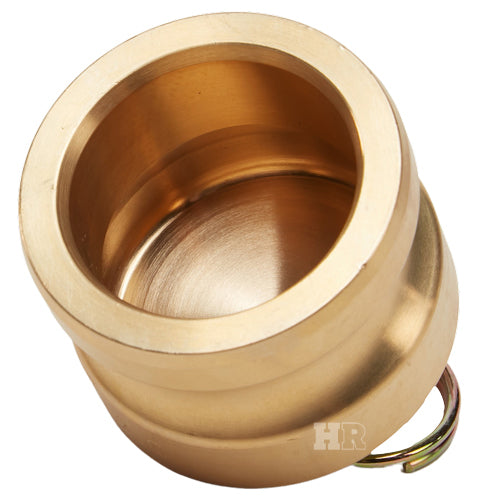

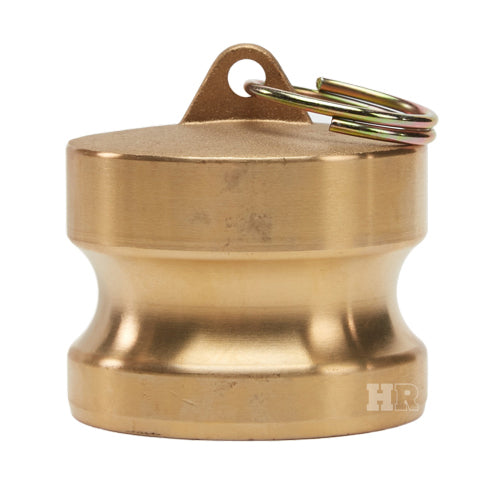

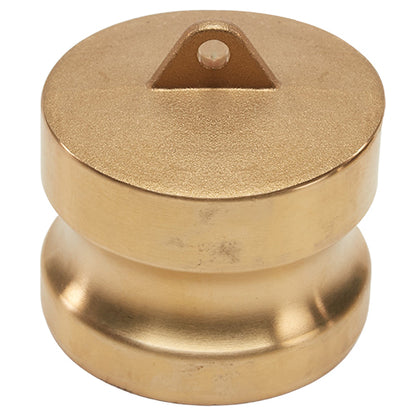

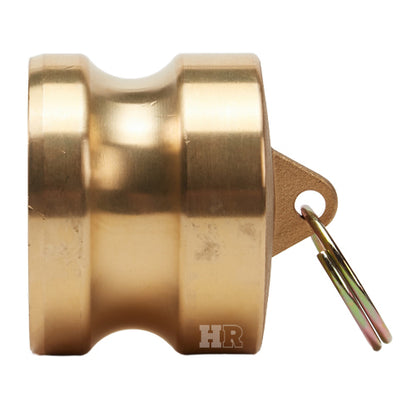

Global type "DP" brass 4 inch male camlock (Cam & Groove) dust plug. Dust caps and dust plugs are not to be used in pressure applications for safety and environmental reasons.
Under no circumstances should cam and groove couplings be used for compressed air or steam service!
Connections:
- The male side of this adapter will only connect to 4 inch female camlock
WARNING: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.
How it works
- To make a connection, simply slide the camlock adapter into the camlock coupling and with normal hand pressure, press the cam levers down.
- Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Cam and groove couplings, also called camlock fittings or quick connect fittings, are used in most industries as a hose connection to avoid leakage. The cam lock type of coupling is popular because it is considered to be a simple and economical way to reconnect and disconnect.
Cam and Groove Couplings Industries
- Steel foundries
- Mines
- Construction
- Chemical
- Petroleum
- Sanitary
- Government
- Nuclear
- Aviation
- Marine
- Rail
- Storage
- Dry bulk
Applications
- Wine
- Food
- Drugs
- Reverse osmosis systems
- Water treatment
- Water transport
- Irrigation
- Waste / vacuum trucks
- Fuel delivery
- Grain movement
- Hydraulic oil, coolants, gasoline and petroleum products
- Bio-fuel
- Salt water
- Waste water
- Chemical movement & storage
- Sand
- Grout
- Cement
- Varnish
- Flour
- Pellets
- Body Material: Brass
- Camlock (Cam & Groove) Size: 4 inch Dust Plug
- Maximum Operating Pressure: NONE
- Type: "DP" Quick Disconnect
Camlock Dimensions
- Size: 4 inches (4.00)
- Male Outside Diameter: 4 3/4 inches (4.724)
Limited 1-Year Camlock Warranty - We will replace any camlock fitting with manufacturer defects in material and workmanship. All warranty claims must be returned to us for inspection before we determine a solution.
Our warranty does not cover gaskets, multiple use of NPT threads, shipping cost, cosmetic damages, normal wear-and-tear, improper use or chemical damage.
