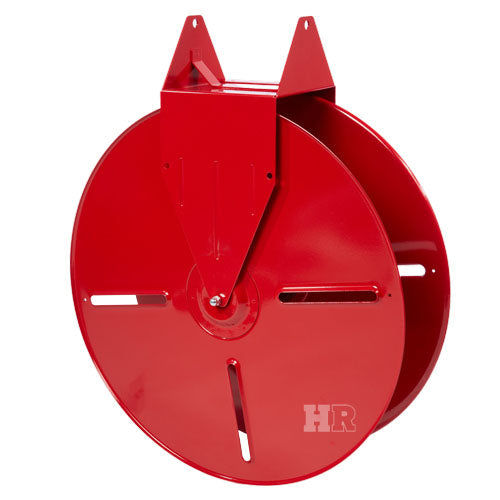

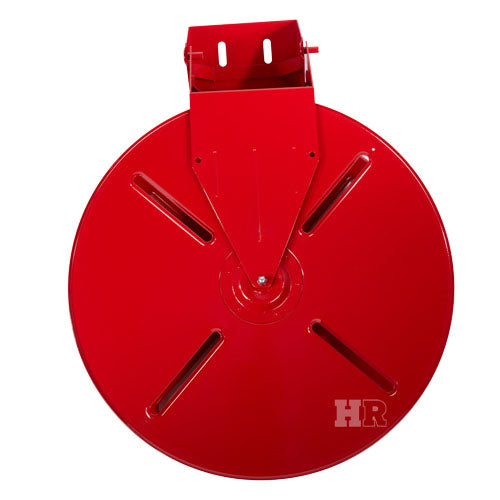

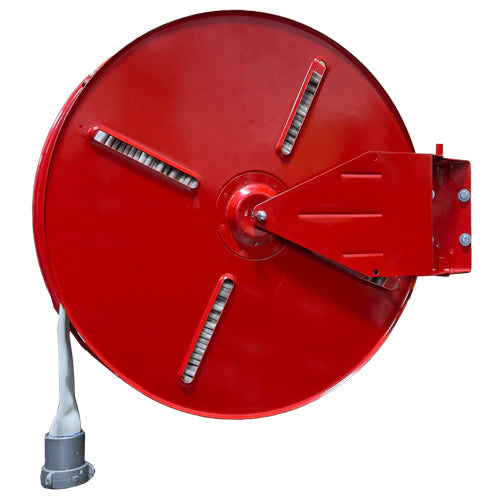

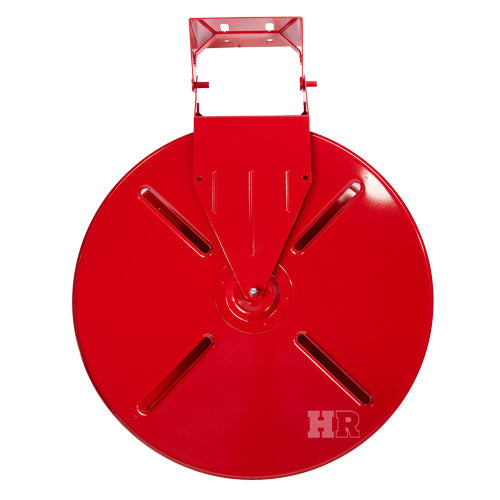

Ex-Large Fire Hose Storage Reel

Item Number: HSR25-24
  • Ex-Large Fire Hose Storage Reel
1 10
$336.60
$336.60
Sale Sold out
Special Order
Ships: Approx. Sep 30, 2026

Free Shipping

View full details

Additional Details

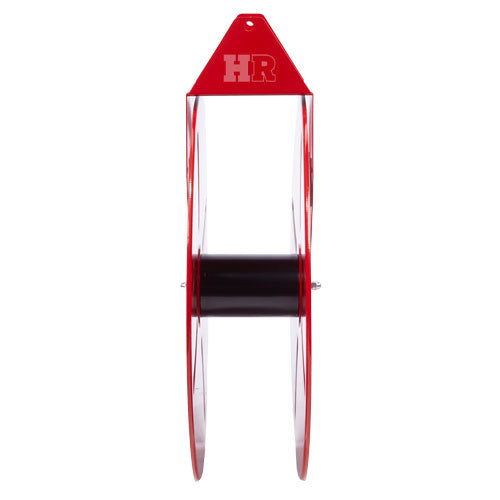

Swing type fire hose storage reel will hold 1 1/2 inch or 2 1/2 inch single or double jacket hose. This product is made in the USA/Canada and is USMCA compliant. Mounting hardware included. Stores hose up to 2 1/2 inches only.

Hose, cover and nozzles are not included.

Features

  • Heavy duty construction

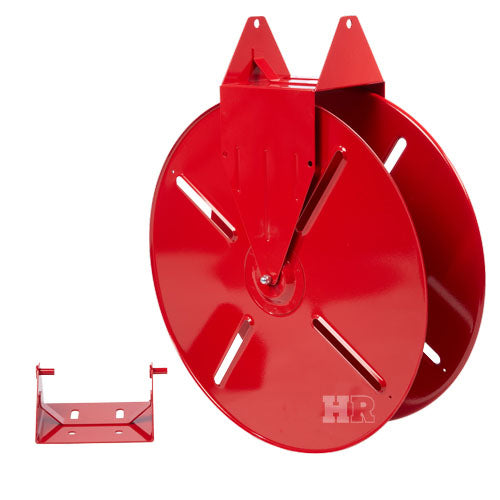

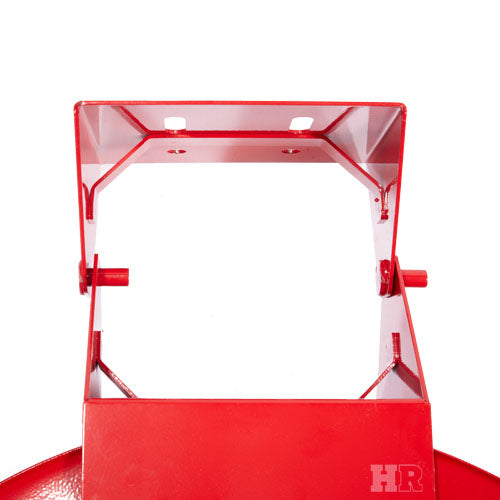

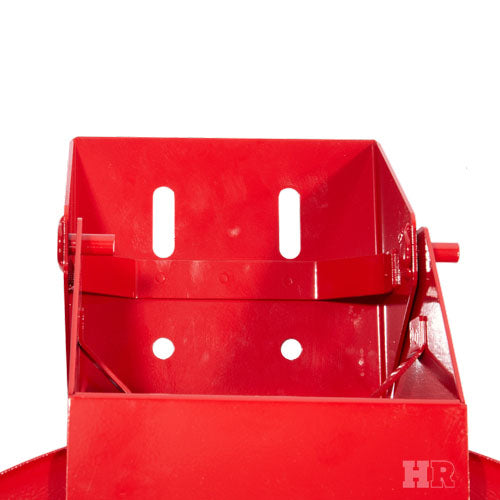

  • One piece wall bracket (14 gauge) for easy mounting
  • 180 degree swing
  • Baked red enamel finish
  • Compact size - smaller reel hub to allow more hose storage.
  • Hose is easily removed by pulling toward fire area. Instantly ready for action when completely removed, and valve is opened.

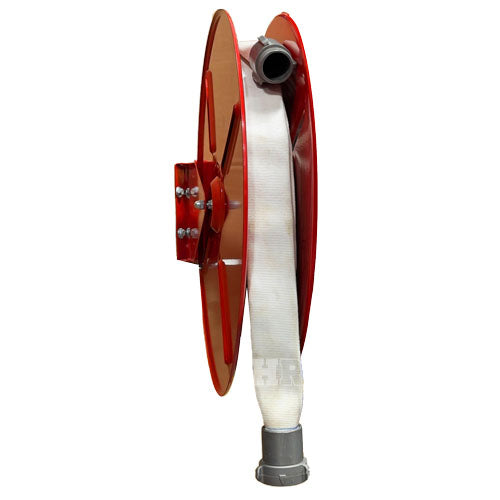

How To Roll Hose On Reel

  1. Lay the hose straight and flat on the ground.
  2. Fold the hose in half laying flat on the ground so that the couplings are together one above the other, male coupling on top. One half is now laying flat on top of the other half. Pull female coupling forward approximately 2 feet ahead of male.
  3. Roll the hose on the reel, beginning at the folded end that does not contain the couplings. You should end with the nozzle end on top and a female coupling on the bottom.
  4. Attach female coupling to water source so hose is ready for immediate use. Hose must be unrolled before water valve is opened.

Specifications

  • 2 1/2 inch Single Jacket Hose Capacity: 100 feet
  • 2 1/2 inch Double Jacket Hose Capacity: 50 feet

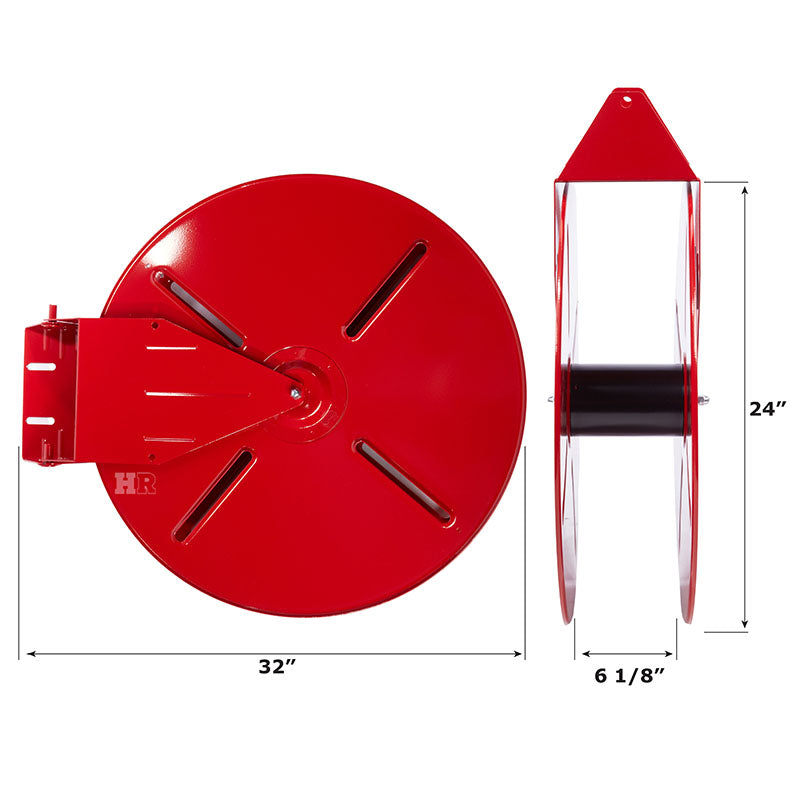

  • Dimensions: 32" L x 24" H x 6 1/8" Inside W
  • USMCA Compliant
  • Uses cover HR15C
