Fire Hose Ramps (6 Foot Span)

Item Number: FHR6
Skip to product information
1 of 9
Regular price $464.63
Regular price Sale price $464.63
Sale Sold out
In Stock (10 or more)
Ships
Estimated transit time: 2 to 5 Business Days Eligible for Express Shipping

Free Shipping

View full details

Collapsible content

Additional Details

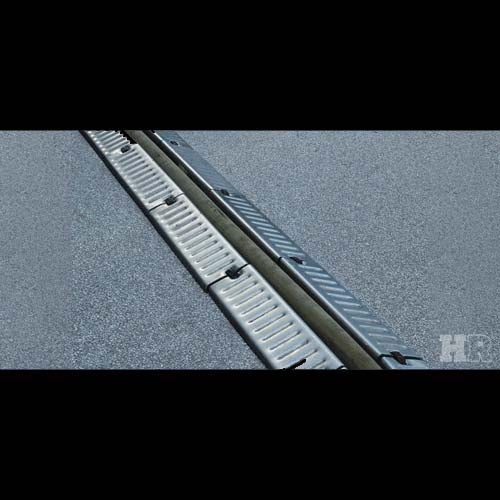

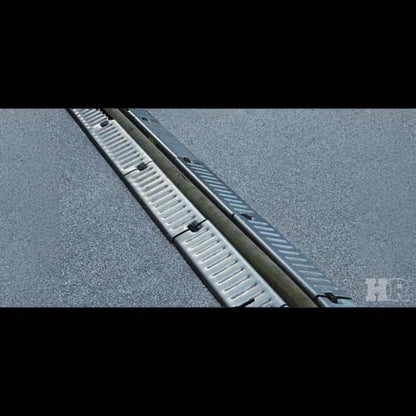

These aluminum fire hose ramps are designed to maintain traffic while protecting up to a 2 1/2 inch diameter fire hose. The ramp performs the function of protecting hose, pipe, cable, fuel lines, etc.



Specifications

  • Total Width: 6 feet (across roadway)
  • Includes: 6 clips to join 3 x 2 foot sections
  • Sold only in multiples of 6 feet: (3 pieces x 2 feet wide) which provides 6 feet of road coverage

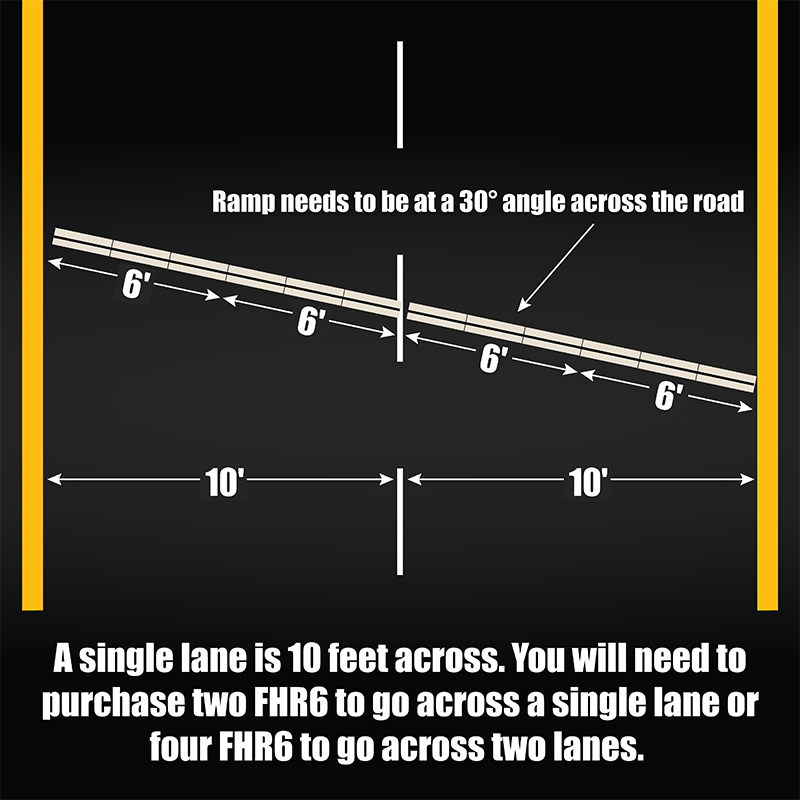

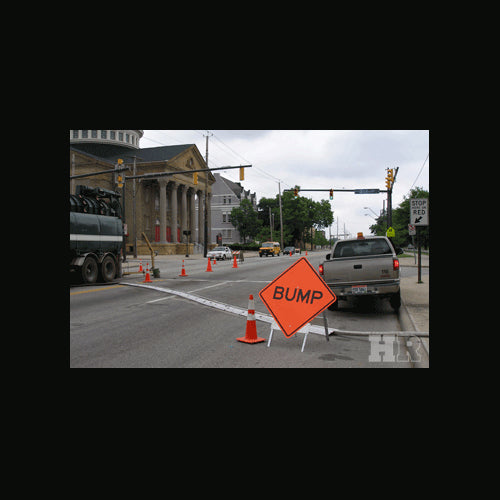

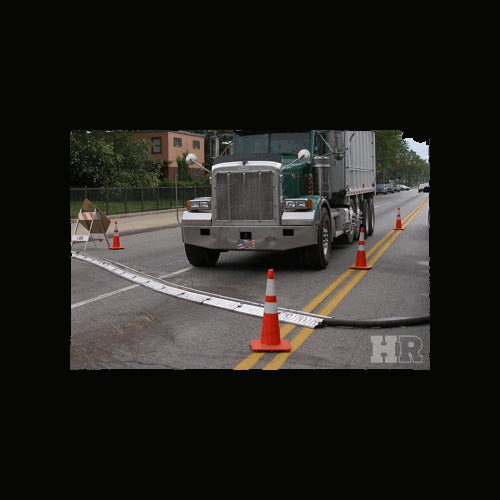

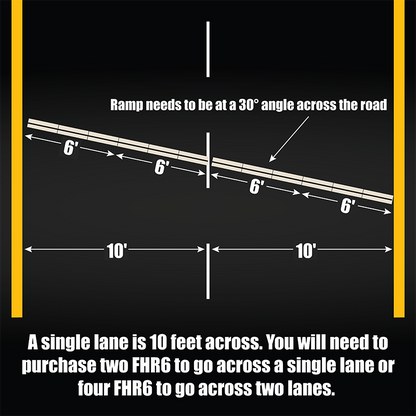

  • Position ramps at 30° diagonal across roadway so vehicles cross ramps one wheel at a time
  • Aluminum construction

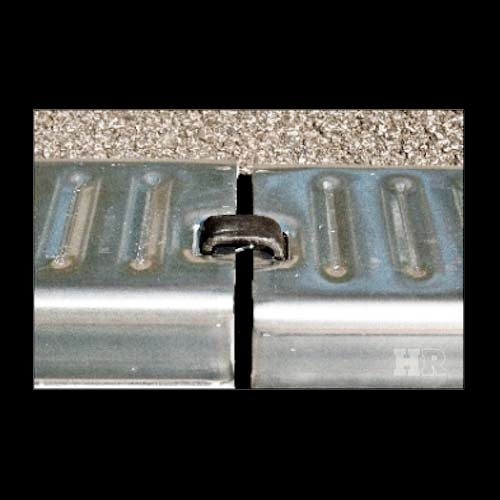

  • Clip assembly means no tools required
  • Included Clips: 6 to assemble one 6 foot section, 2 to connect additional sections
  • Each section weighs 15 pounds

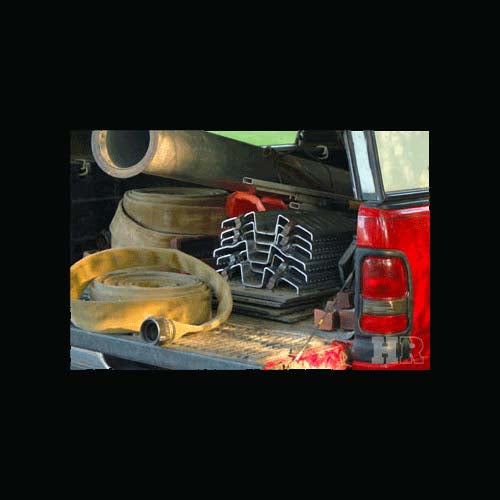

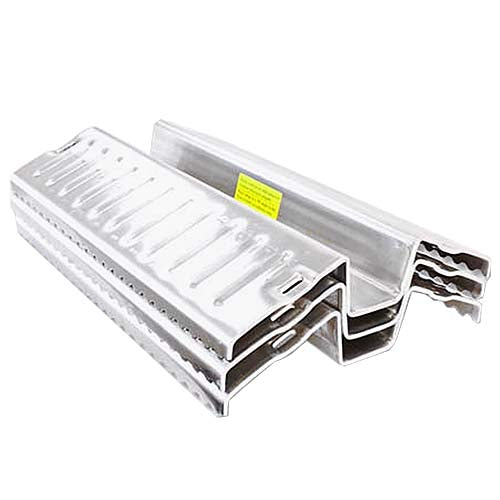

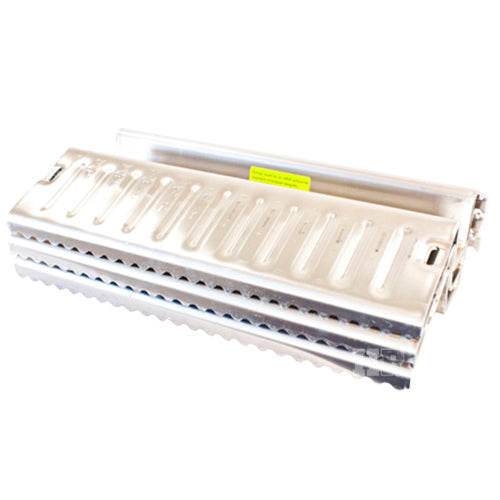

  • Stackable space required: 24" L x 18" W x 16" H
  • Ramps must be on solid surface to maintain structural integrity

Dimensions of each piece

  • Width: 24 inches (across roadway)
  • Length: 17 inches (inline with travel)
  • Height: 3 3/8 inches (from ground)
  • Channel Depth: 3 inches
  • Channel Width: Angles from 3 1/4 inches (bottom) to 4 inches (top)

Destructive testing found the breaking point of our ramps to be 47,500 pounds per wheel, when placed on a solid surface. Weight restriction in most states is 20,000 pounds per axle.

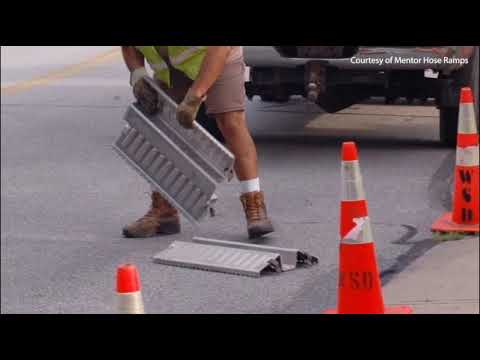

Assembly Instructions
