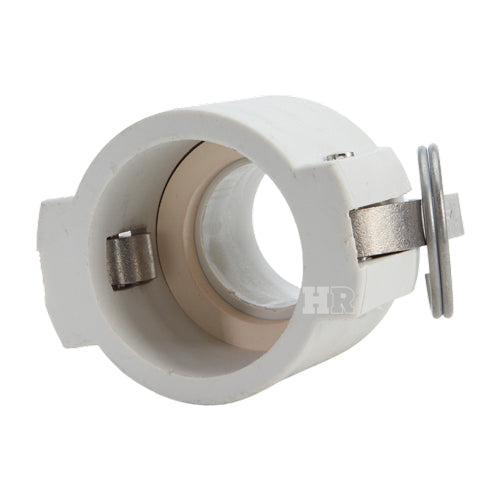

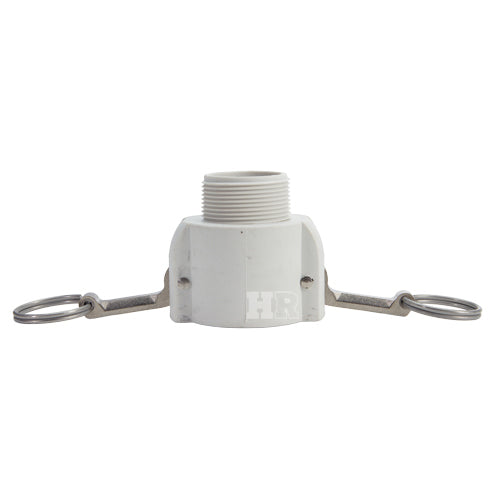

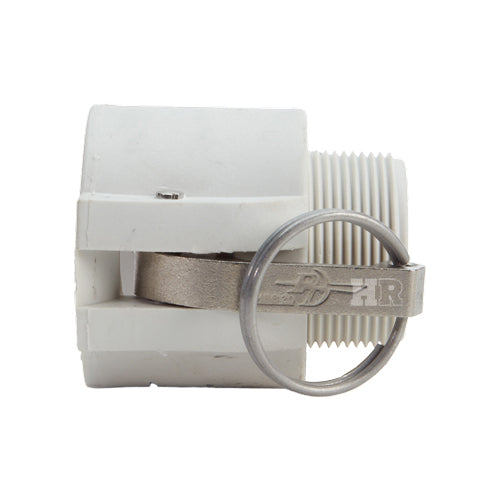

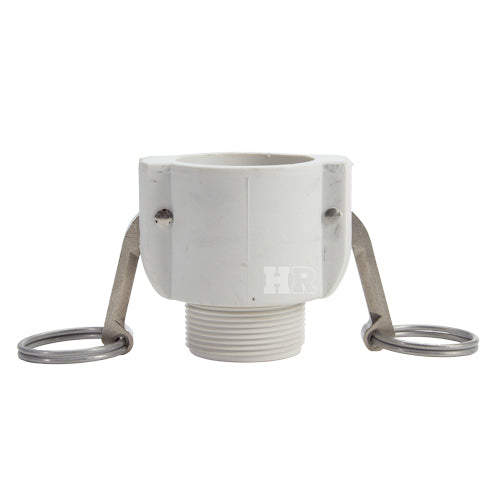

Food Grade Poly 1 1/2" Female Camlock x 1 1/2" Male NPT (USA)

Item Number: DFG15F15MN
Weight: 0.6 lb

Stock Level: 10 or more

Product Status: In Stock

Shipping Cost: Free on orders over $100

Shipping Transit Time: 2 to 5 Business Days

Eligible for Express Shipping: Yes

Stock Level Updated: May 23, 2024

Built to government specifications A-A-59326 and MIL-C-27487. Food grade polypropylene cam and groove couplings are made from a glass filled composite. Fittings are 40% glass filled.

Type "B" polypropylene 1 1/2" female camlock (Cam & Groove) coupler to 1 1/2" male NPT threads. Under no circumstances should cam and groove couplings be used for compressed air or steam service!


  • The female side of this adapter will only connect to 1 1/2" male camlock.
  • The male threaded side of this adapter will only connect to a 1 1/2" female National Pipe Tapered (NPT) or National Pipe Straight Hose (NPSH) thread. For example, PVC or metal pipe fitting.

How it works

  • To make a connection, simply slide the camlock adapter into the camlock coupling and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.

Cam and groove couplings, also called camlock fittings or quick connect fittings, are used in most industries as a hose connection to avoid leakage. The cam lock type of coupling is popular because it is considered to be a simple and economical way to reconnect and disconnect.

Cam and Groove Couplings Industries

  • Chemical
  • Sanitary
  • Government
  • Storage
  • Dry bulk
  • Petroleum



  • Wine
  • Food
  • Drug
  • Reverse osmosis systems
  • Water treatment
  • Made in USA
  • Body Material - Food Grade Poly
  • Camlock (Cam & Groove) Size - 1 1/2 inch Female
  • Threaded Size - 1 1/2 inch Male NPT
  • Maximum Operating Pressure - 100 PSI
  • Type - "B" Quick Disconnect
  • Color - White
  • Gasket - White Nitrile Food Grade

Camlock Dimensions:

  • Size - 1 1/2 inch (1.50)
  • Female Inside Diameter - 2 1/8 inch (2.125)

Download Spec Sheet

Limited 1-Year Camlock Warranty - We will replace any camlock fitting with manufacturer defects in material and workmanship. All warranty claims must be returned to us for inspection before we determine a solution.

Our warranty does not cover gaskets, multiple use of NPT threads, shipping cost, cosmetic damages, normal wear-and-tear, improper use or chemical damage.
