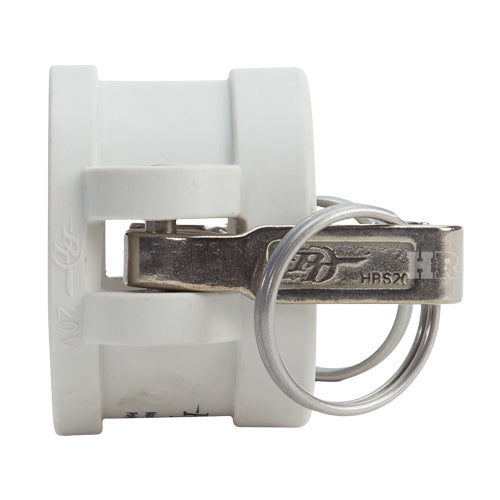

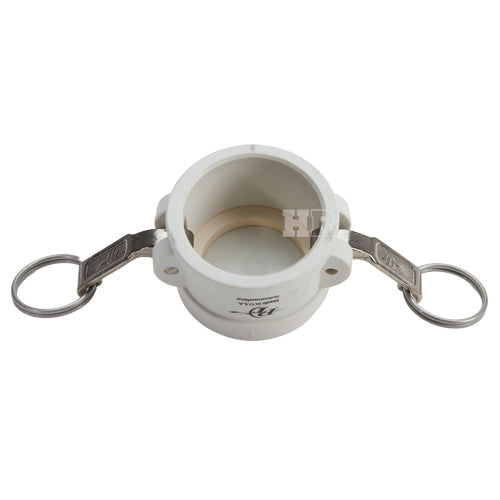

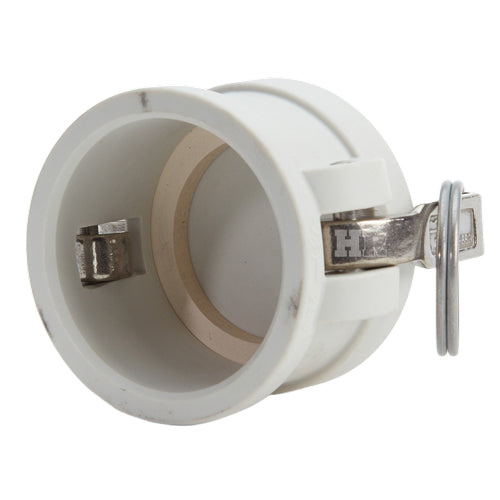

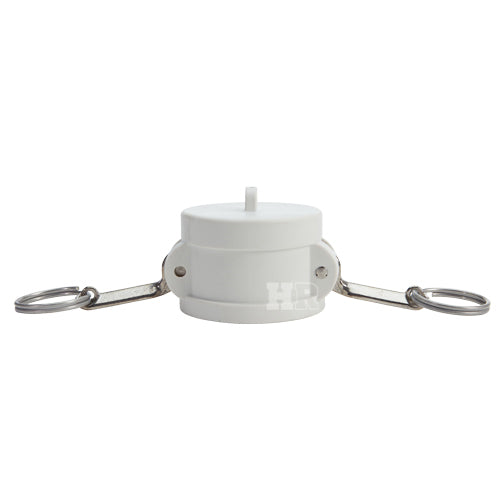

Food Grade Poly 2" Camlock Dust Cap

price:
Price
$16.94
Item Number: DFG20DC
Weight: 0.53 lb

Stock Level: 10 or more

Product Status: In Stock

When Will it Ship:

Shipping Cost: Free on orders over $100

Shipping Transit Time: 2 to 5 Business Days

Eligible for Express Shipping: Yes

Stock Level Updated: Oct 3, 2024


Built to government specifications A-A-59326 and MIL-C-27487. Food grade polypropylene cam and groove couplings are made from a glass filled composite. Fittings are 40% glass filled.

Type "DC" polypropylene 2 inch female camlock (Cam & Groove) dust cap.Dust caps and dust plugs are not to be used in pressure applications for safety and environmental reasons.

Under no circumstances should cam and groove couplings be used for compressed air or steam service!

Connections

  • The female side of this adapter will only connect to 2 inch male camlock

How it works

  • To make a connection, simply slide the camlock adapter into the camlock coupling and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.

Cam and groove couplings, also called camlock fittings or quick connect fittings, are used in most industries as a hose connection to avoid leakage. The cam lock type of coupling is popular because it is considered to be a simple and economical way to reconnect and disconnect.

Cam and Groove Couplings Industries

  • Chemical
  • Sanitary
  • Government
  • Storage
  • Dry bulk
  • Petroleum



Applications

  • Wine
  • Food
  • Drug
  • Reverse osmosis systems
  • Water treatment
  • Made in USA
  • Body Material: Food Grade Poly
  • Camlock (Cam & Groove) Size: 2 inch Dust Cap
  • Maximum Operating Pressure: NONE
  • Type: "DC" Quick Disconnect
  • Color: White
  • Gasket: White Nitrile Food Grade

Camlock Dimensions

  • Size: 2 inches (2.00)
  • Female Inside Diameter: 2 1/2 inches (2.519)

Download Spec Sheet
