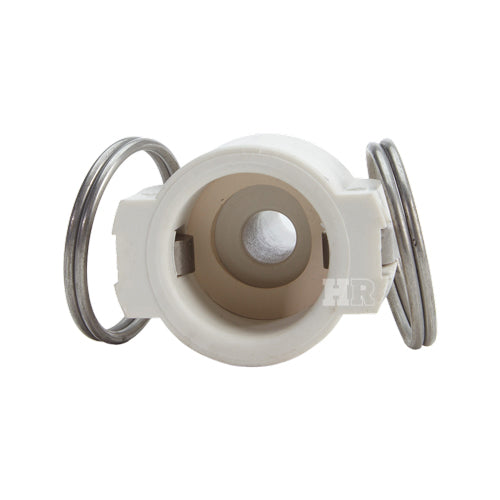

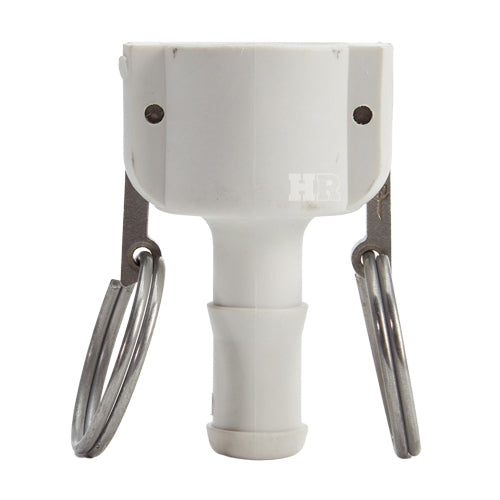

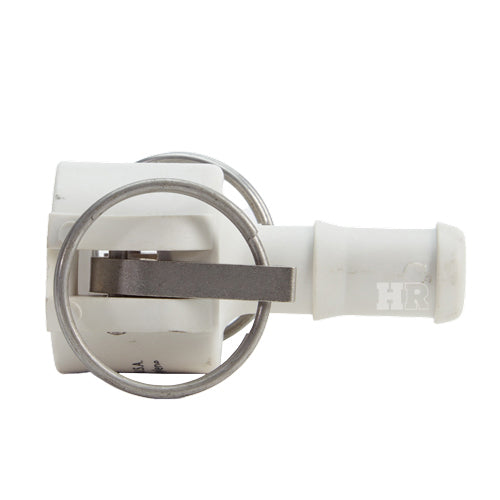

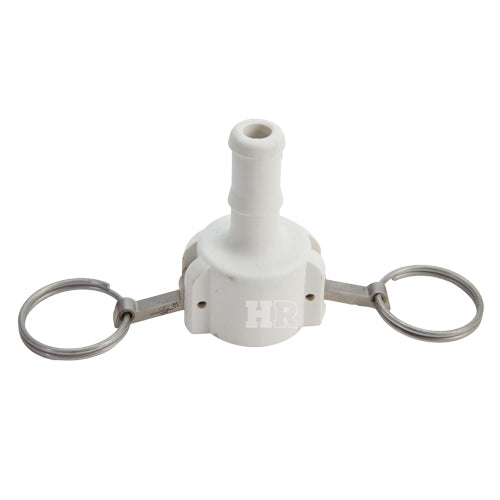

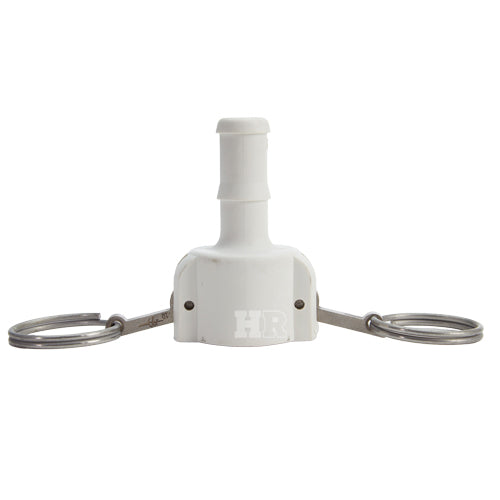

Food Grade Poly 3/4" Female Camlock to Hose Shank

  • Food Grade Poly 3/4" Female Camlock to Hose Shank (USA)
1 7
Price: $17.44
$0.00 $17.44
Sale Sold out

Stock Level: 10 or more

Product Status: In Stock

Shipping Cost: Free on orders over $100

Shipping Transit Time: 2 to 5 Business Days

Eligible for Express Shipping: Yes

Stock Level Updated: Nov 25, 2024


Item Number: DFG07F07C
Weight: 0.22 lb

View full details

Description

Built to government specifications A-A-59326 and MIL-C-27487. Food grade polypropylene cam and groove couplings are made from a glass filled composite. Fittings are 40% glass filled.

Type "C" polypropylene 3/4 inch female camlock (Cam & Groove) coupler to 3/4 inch hose shank.

Under no circumstances should cam and groove couplings be used for compressed air or steam service!

Connections

  • The female side of this adapter will only connect to 3/4 inch male camlock

How it works

  • To make a connection, simply slide the camlock adapter into the camlock coupling and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.

Cam and groove couplings, also called camlock fittings or quick connect fittings, are used in most industries as a hose connection to avoid leakage. The cam lock type of coupling is popular because it is considered to be a simple and economical way to reconnect and disconnect.

Cam and Groove Couplings Industries

  • Chemical
  • Sanitary
  • Government
  • Storage
  • Dry bulk
  • Petroleum



Applications

  • Wine
  • Food
  • Drug
  • Reverse osmosis systems
  • Water treatment

Specifications

  • Made in USA
  • Body Material: Food Grade Poly
  • Camlock (Cam & Groove) Size: 3/4 inch Female
  • Shank Size: 3/4 inch
  • Maximum Operating Pressure: 100 PSI
  • Type: "C" Quick Disconnect
  • Color: White
  • Gasket: White Nitrile Food Grade

Camlock Dimensions

  • Size: 3/4 inch (0.75)
  • Female Inside Diameter: 1 5/16 inches (1.289)

Download Spec Sheet

Warranty Information

Limited 1-Year Camlock Warranty - We will replace any camlock fitting with manufacturer defects in material and workmanship. All warranty claims must be returned to us for inspection before we determine a solution.

Our warranty does not cover gaskets, multiple use of NPT threads, shipping cost, cosmetic damages, normal wear-and-tear, improper use or chemical damage.
