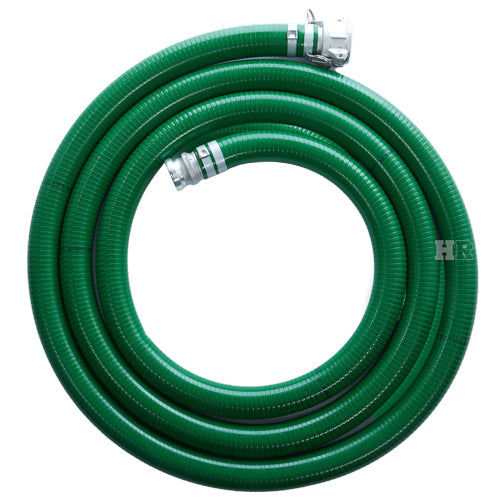

Green 1 1/2" x 20' Camlock Suction Hose

price:
Price
$93.08
Item Number: 15HS20CEG
Weight: 9.0 lb

Stock Level: 10 or more

Product Status: In Stock

When Will it Ship:

Shipping Cost: Free on orders over $100

Shipping Transit Time: 2 to 5 Business Days

Eligible for Express Shipping: Yes

Stock Level Updated: Feb 28, 2024


Green lightweight camlock pvc water suction hose is rated for medium duty. Reinforced with high tensile synthetic yarn and steel helix wire.

Applications:

  • General purpose
  • Agricultural
  • Irrigation
  • Construction

Camlock fittings (quick connect couplings) allow for quick, secure connections of hoses to tanks or other hoses. The name "Cam Lock" comes from the cam or lever that is used to lock one hose or fitting into place with another one. The female connector has two cams as part of the assembly. The male connector has a shape that allows the cams to lock into place. These couplings mate quickly and conveniently by inserting the grooved coupling into the cam coupling and simply closing the cam arms. Safety pins prevent the cam arms from accidental disconnection during use.

Warning - Not intended for hydrant pressure or head pressure from an above ground holding tank

Download Spec Sheet

  • Suction Hose Length - 20 feet
  • Male Camlock Coupling - Aluminum 1 1/2 inch (O.D. - 2.086) - Type "E" Shank
  • Female Camlock Coupling - Aluminum 1 1/2 inch (I.D. - 2.125) - Type "C" Shank
  • Approx. Bend Radius - 7 inches at 68 degrees
  • Weight Per Foot - .44 pounds
  • Working Temperature - 158 degrees F to 0 degrees F
  • Hose ID - 1 1/2 inches
  • Hose OD - 1 13/16 inches
  • Vacuum Rating - 29" Hg @ 68 degrees, 24" HG at 104 degrees

Limited 1-Year Warranty

We will replace any fire hose with manufacturer defects in material and workmanship. All warranty claims must be returned to us for inspection before we determine a solution.

Our warranty does not cover gaskets, shipping cost, cosmetic damages, normal wear-and-tear, improper use or chemical damage.

Fire hoses purchased for use at Fire Training Facilities will have a 90-day Manufacturer Defect warranty only.

Upon receipt of the returned goods, hoses will be subject to inspection and testing.

Should it be determined that the hose is covered by warranty, it will be repaired or replaced.
