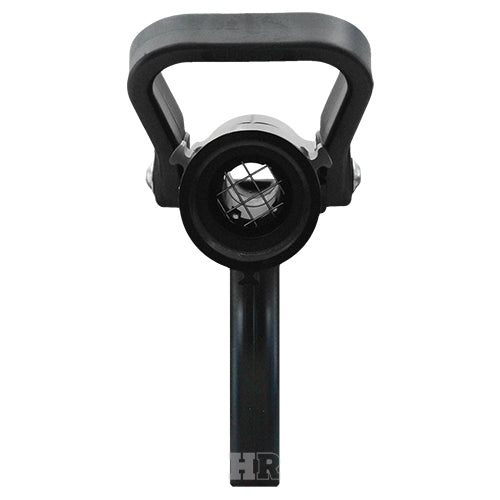

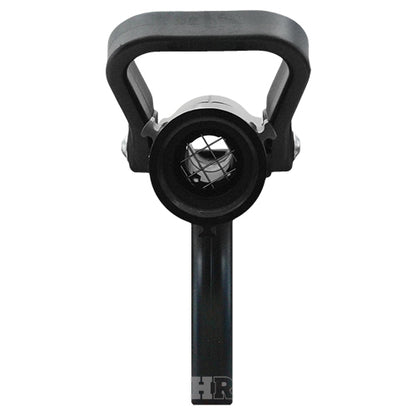

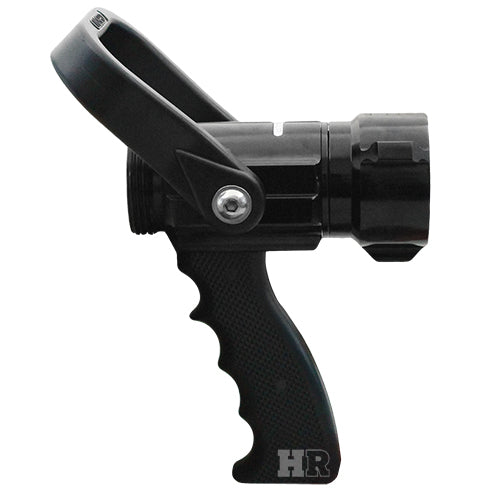

Industrial Aluminum Heavy-Duty 1 1/2" NPSH Ball Shut-Off With Pistol Grip

Item Number: GBA15P
  • Industrial Aluminum Heavy-Duty 1 1/2" NPSH Ball Shut-Off With Pistol Grip
1 4
$264.85
$0.00 $264.85
Sale Sold out
Special Order
Ships: Approx. Aug 18, 2026
Estimated transit time: 2 to 5 Business Days

Free Shipping

Help Me Connect

NH / NST: The most common thread type in use by fire departments today is NST or National Standard Thread. NST also goes by the initials NH or National Hose. It can even be referred to as NHT or National Hose Thread but NST or NH is more common these days. NH = NST.

  • The female side of a NH / NST coupling will only connect to a male NH / NST connection
  • The male side of a NH / NST coupling will only connect to a female NH / NST connection

NPSH: National Pipe Straight Hose (NPSH) or Iron Pipe Thread (IPT) has the same threads per inch (TPI) as National Pipe Tapered (NPT) but the thread does not taper. NPSH is a straight thread and seals by a gasket in the female coupling which allows for a swivel, just like NH / NST, which make both ideal for hose couplings.

  • The female side of a NPSH coupling will only connect to a male NPT pipe or a male NPSH connection
  • The male side of a NPSH coupling will only connect to a female NPSH connection.
    It will NOT thread into a female NPT pipe. For example, a male NPSH coupling will NOT thread into a female metal or pvc pipe.

NPT: National Pipe Tapered is common in plumbing and some industrial uses. Sometimes referred to as pipe thread because PVC pipe and schedule 40 pipe are typically threaded in NPT. As its name implies this is a tapered thread so that the outside diameter of the male (ODM) gets smaller towards the end of the fitting and the inside diameter of the female narrows with depth. As the two fittings are threaded together the opposite tapers force thread friction and makes the seal without the use of a gasket.

View full details

Additional Details

High pressure anodized aluminum 1 1/2 inch NPSH pistol grip ball shut-off valve is lightweight but built to tough U.S. Forestry Service Standards (FSS). Features a cast aluminum bale and durable polymer pistol grip that is easily removed. Pistol grip allows for stable and comfortable use. Valve has polymer ball and seating for reduced friction when opening and closing valve under pressure.

May be used with any 1 1/2 inch NPSH threaded nozzle.

To remove the grip an Allen Wrench is needed.



Specifications

  • Swivel Inlet: 1 1/2 inch NPSH
  • Outlet: 1 1/2 inch NPSH
  • Maximum Operating Pressure: 600 PSI
  • Body: Anodized Aluminum
  • Grip: Polymer
  • Bale: Cast Aluminum
  • Low Friction Polymer Ball and Seating
  • Removable Pistol Grip
  • Meets Forest Service Specifications (FSS)
1 1/2" Male Hose Coupling
  • Inside diameter of a male adapter: 1 1/2 inches
  • Outside diameter of a male NH / NST adapter: 2 inches (1.99) - 9 Threads per inch
  • Outside diameter a male NPSH or NPT adapter: 1 7/8 inches (1.87) - 11.5 Threads per inch
