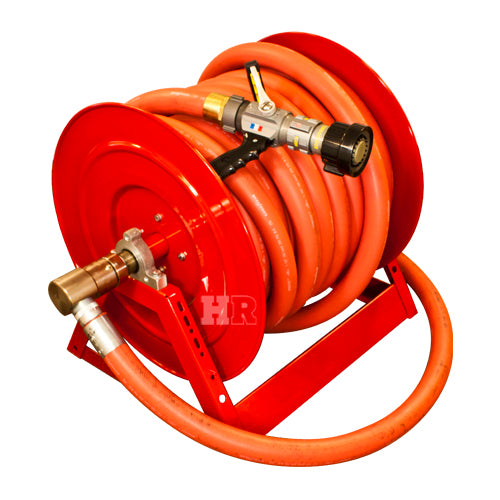

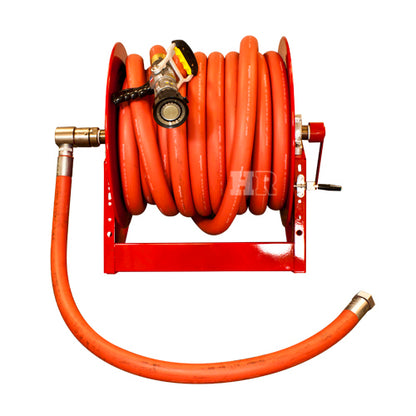

Live 1 1/2" Booster Fire Hose Storage Reel

Item Number: LBHR15-D
  • Live 1 1/2" Booster Fire Hose Storage Reel
1 11
$1,254.48
$1,254.48
Sale Sold out
Special Order
Ships: Approx. Sep 10, 2026
Estimated transit time: 2 to 5 Business Days

Shipping Cost: Freight Charge $300 (Per Order)

View full details

Additional Details

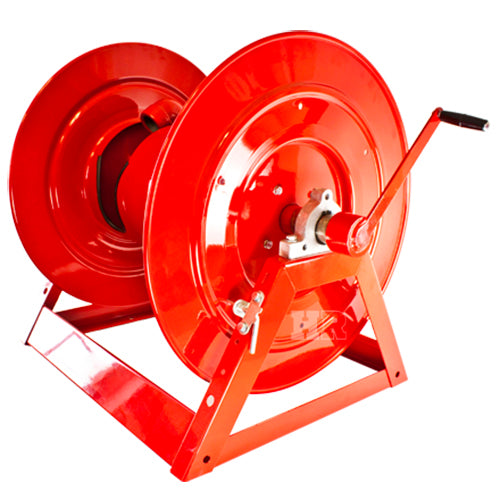

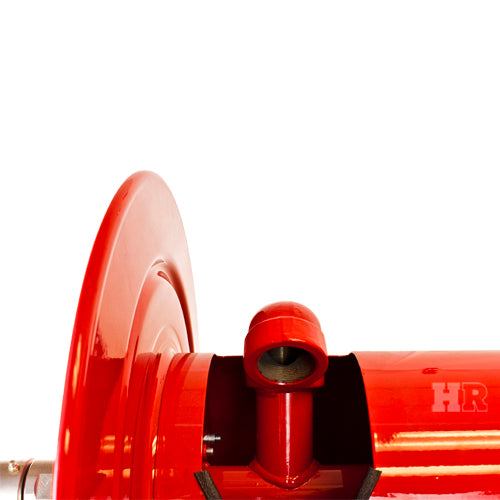

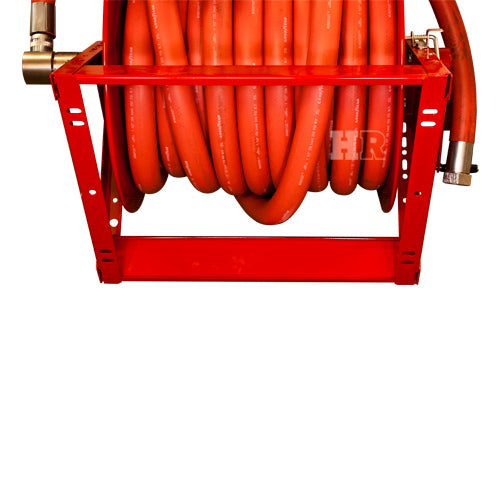

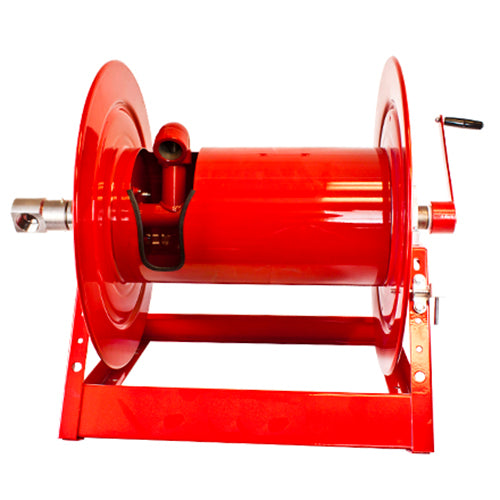

The heavy duty fire hose reel is hand crank and are designed to handle long lengths of large diameter hose for increased volume delivery. This reel's exclusive low profile outlet riser and open drum design provide a non-crimping, flat smooth hose wrap. The sturdy all welded "A" frame base provides exceptional strength to handle the extra weight without sacrificing performance, even in demanding mobile applications.

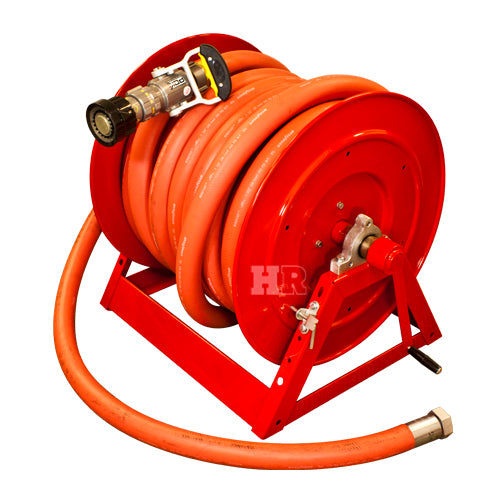

Nozzle, hose, supply hose and adapter sold separately.

Ships LTL freight on a pallet. Flat rate shipping excludes Alaska and Hawaii (call for shipping).

Recommended Hose: Booster fire hose sku #15B25100B.

Requires Adapter: DMH1515F to convert Female NPT to 1 1/2 inch Male NH / NST outlet.

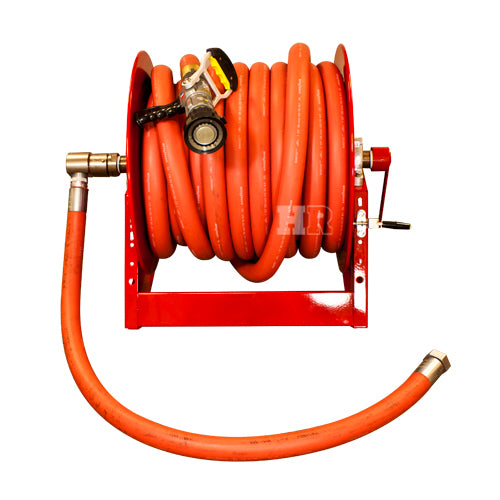

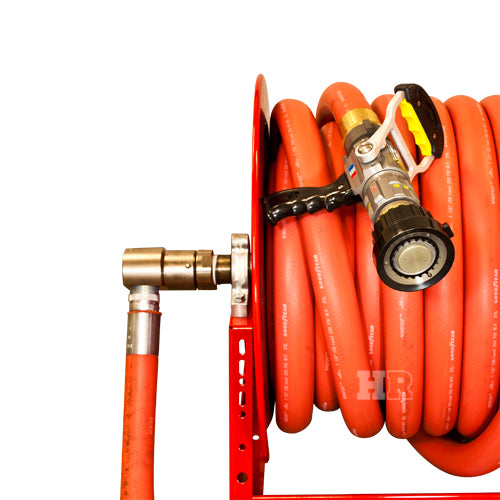

Connector Hose: We recommend part 15SH 5 foot flexible connector supply hose be installed directly between the hose reel inlet hub and the water supply.



Specifications

  • Made in USA
  • Hose Size: Up to 1 1/2 inches
  • Hose Capacity: 100 feet
  • Pressure: Up to 600 PSI
  • Swivel Female Inlet: 1 1/2 inch NPT
  • Female Outlet: 1 1/2 inch NPT
  • Color: Red
  • Additional Handling or Freight Charge: See Shopping Cart
  • Freight calculated by weight tiers on multi-unit orders
  • Commercial Address Required for Freight Delivery

Shipping Information (Reel Only)

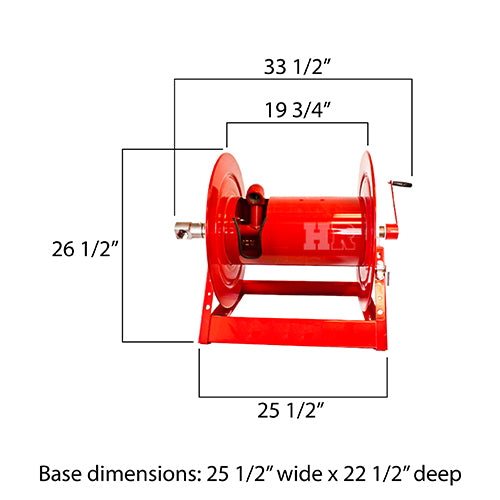

  • Weight 94 lbs, Dimensions 30" x 27" x 26"
  • LTL Freight Shipping Class 85
  • Qty 1 Pallet Dimensions: 48" x 40" x 36"
  • Qty 1 Shipping Weight on pallet: 149 lbs
  • Qty 2 Pallet Dimensions: 48" x 40" x 65"
  • Qty 2 Shipping Weight on pallet: 269 lbs
  • Maximum reels per pallet is 2
