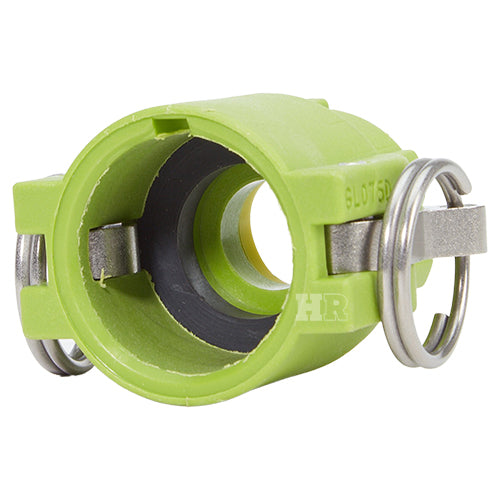

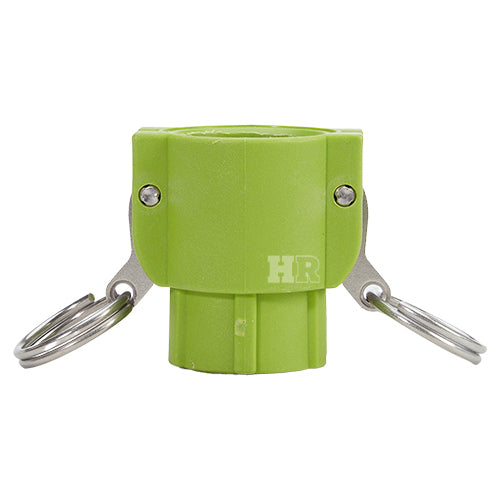

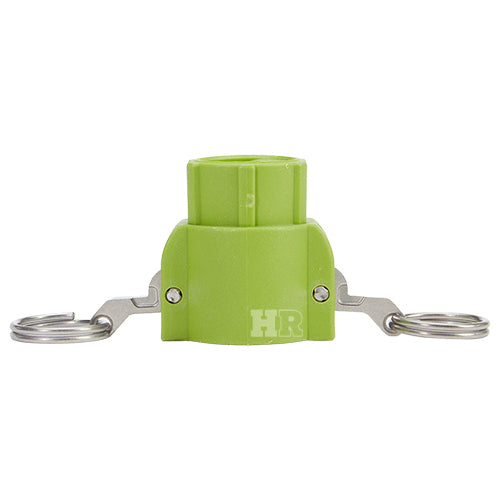

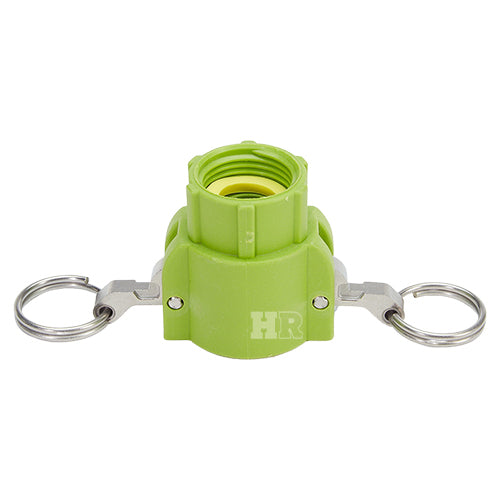

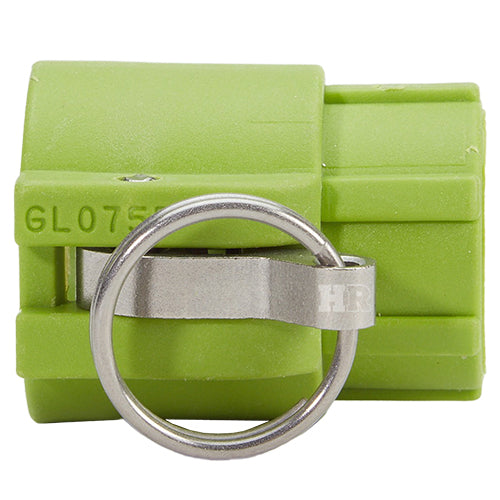

Plastic 3/4" Female Camlock x 3/4" Female GHT (USA)

Item Number: DP07F07FG
  • Plastic 3/4" Female Camlock x 3/4" Female GHT (USA)
1 7
$15.82
$0.00 $15.82
Sale Sold out
In Stock (10 or more)
Ships
Estimated transit time: 2 to 5 Business Days Eligible for Express Shipping

Shipping Cost: Free on orders over $100

Warranty Information

Limited 1-Year Camlock Warranty - We will replace any camlock fitting with manufacturer defects in material and workmanship. All warranty claims must be returned to us for inspection before we determine a solution.

Our warranty does not cover gaskets, multiple use of NPT threads, shipping cost, cosmetic damages, normal wear-and-tear, improper use or chemical damage.

View full details

Additional Details

Type "D" polypropylene 3/4 inch female camlock (Cam & Groove) coupler to 3/4 inch female GHT threads.

Under no circumstances should cam and groove couplings be used for compressed air or steam service!

Connections

  • The female side of this adapter will only connect to 3/4 inch male camlock
  • The female threaded side of this adapter will only connect to a male Garden Hose Thread (GHT)

Warning: Polypropylene cam & groove should not be mixed with metal fittings. We recommend using polypropylene with other poly, plastic, pvc, banjo type camlock fittings.

How it works

  • To make a connection, simply slide the camlock adapter into the camlock coupling and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.

Cam and groove couplings, also called camlock fittings or quick connect fittings, are used in most industries as a hose connection to avoid leakage. The cam lock type of coupling is popular because it is considered to be a simple and economical way to reconnect and disconnect.

Cam and Groove Couplings Industries

  • Chemical
  • Sanitary
  • Government
  • Storage
  • Dry bulk
  • Petroleum

Applications

  • Water
  • Coolants

Specifications

  • Made in USA
  • Body Materia: Polypropylene
  • Camlock (Cam & Groove) Size: 3/4 inch Female
  • Threaded Size: 3/4 inch Female GHT
  • Maximum Operating Pressure: 125 PSI
  • Seal: Buna
  • Type: "D" Quick Disconnect

Camlock Dimensions

  • Size: 3/4 inch (0.75)
  • Female Inside Diameter: 1 5/16 inches (1.289)

Download Spec Sheet
