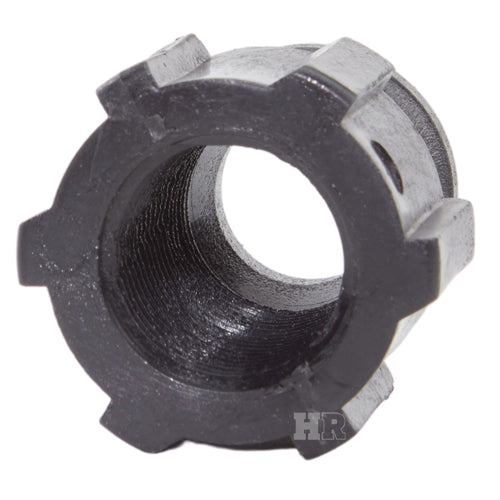

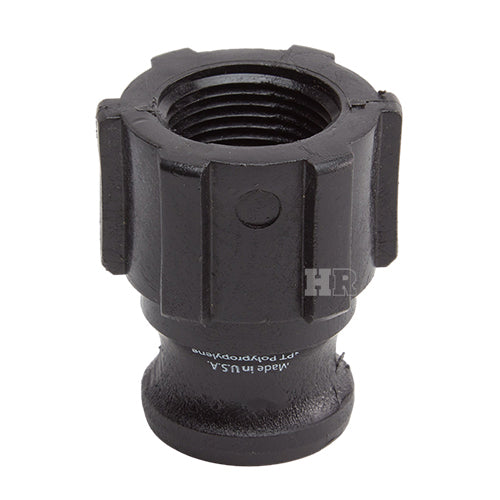

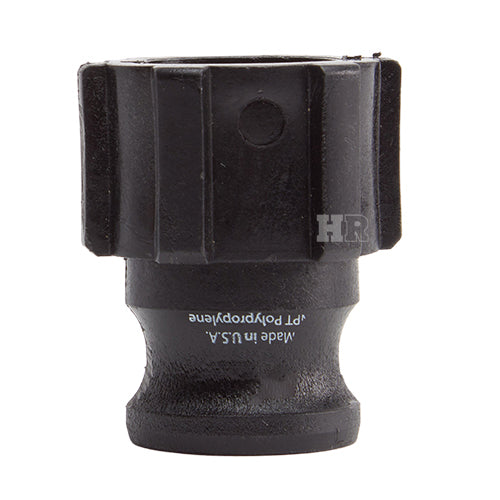

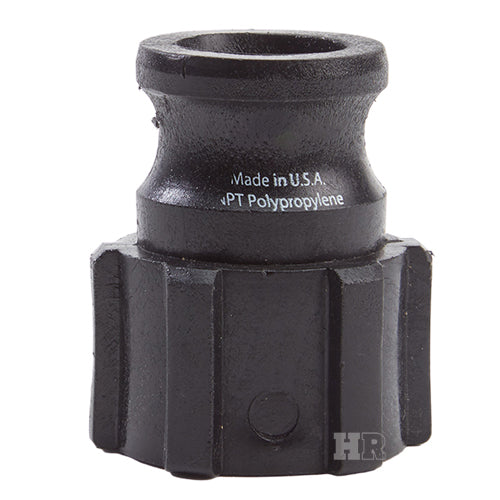

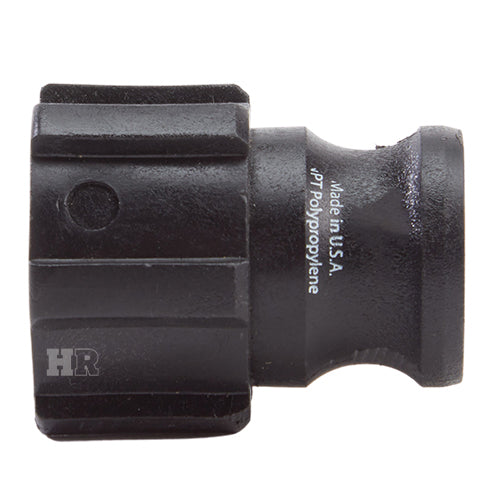

Plastic 3/4" Male Camlock x 3/4" Female NPT (USA)

Item Number: DP07M07FN
Weight: 0.25 lb

Stock Level: 10 or more

Product Status: In Stock

When Will it Ship:

Shipping Cost: Free on orders over $100

Shipping Transit Time: 2 to 5 Business Days

Eligible for Express Shipping: Yes

Stock Level Updated: Jul 22, 2024

Garden Hose Thread (GHT) is not compatible with National Pipe Thread (NPT). For example, 3/4" GHT is not the same as 3/4" NPT. The female side of this camlock will NOT thread onto a male garden hose or garden hose faucet.

Type "A" polypropylene 3/4" male camlock (Cam & Groove) coupler to 3/4" female NPT threads. Under no circumstances should cam and groove couplings be used for compressed air or steam service!


  • The male side of this adapter will only connect to 3/4" female camlock.
  • The female threaded side of this adapter will only connect to a 3/4" male National Pipe Tapered (NPT) thread. For example, PVC or metal pipe fitting.

Warning: Polypropylene cam & groove should not be mixed with metal fittings. We recommend using polypropylene with other poly, plastic, pvc, banjo type camlock fittings.

How it works

  • To make a connection, simply slide the camlock adapter into the camlock coupling and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.

Cam and groove couplings, also called camlock fittings or quick connect fittings, are used in most industries as a hose connection to avoid leakage. The cam lock type of coupling is popular because it is considered to be a simple and economical way to reconnect and disconnect.

Cam and Groove Couplings Industries

  • Chemical
  • Sanitary
  • Government
  • Storage
  • Dry bulk
  • Petroleum


  • Reverse osmosis systems
  • Water treatment
  • Water transport
  • Irrigation
  • Waste / vacuum trucks
  • Hydraulic oil, coolants, gasoline and petroleum products
  • Salt water
  • Waste water
  • Chemical movement & storage
  • Made in USA
  • Body Material - Polypropylene
  • Camlock (Cam & Groove) Size - 3/4 inch Male
  • Threaded Size - 3/4 inch Female NPT
  • Maximum Operating Pressure - 125 PSI
  • Type - "A" Quick Disconnect

Camlock Dimensions:

  • Size - 3/4 inch (0.75)
  • Male Outside Diameter - 1 1/4 inch (1.250)

Download Spec Sheet

Limited 1-Year Camlock Warranty - We will replace any camlock fitting with manufacturer defects in material and workmanship. All warranty claims must be returned to us for inspection before we determine a solution.

Our warranty does not cover gaskets, multiple use of NPT threads, shipping cost, cosmetic damages, normal wear-and-tear, improper use or chemical damage.
