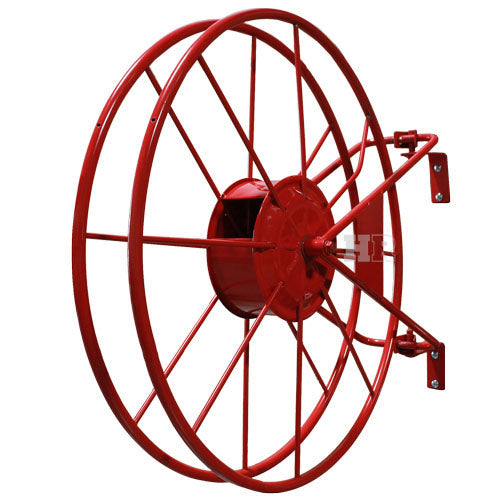

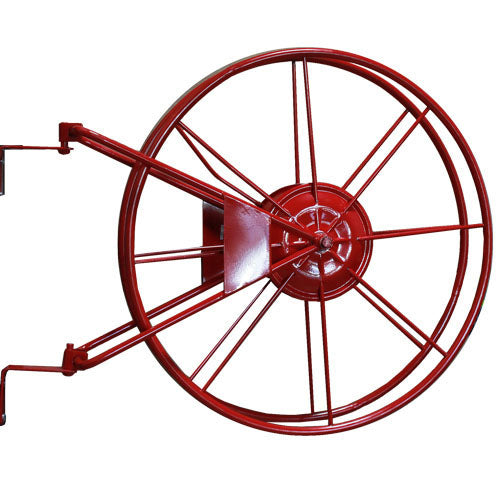

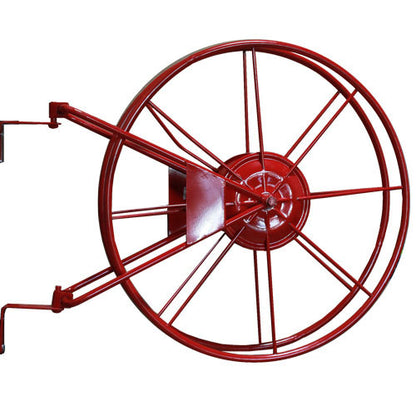

Red 1 1/2" Fire Hose Reel

Item Number: HR15
  • Red 1 1/2" Fire Hose Reel
1 7
$269.41
$269.41
Sale Sold out
In Stock (10 or more)
Ships
Estimated transit time: 2 to 5 Business Days Eligible for Express Shipping

Free Shipping

View full details

Additional Details

This Wirt Knox style swing type hose storage reel is designed to accommodate 1 1/2 inch or 1 3/4 inch lay flat hose. Solid steel construction. Mounting hardware included.

Hose and nozzle are not included.

Features

  • Stores collapsible hose on drum to avoid damage from kinking for a long hose life

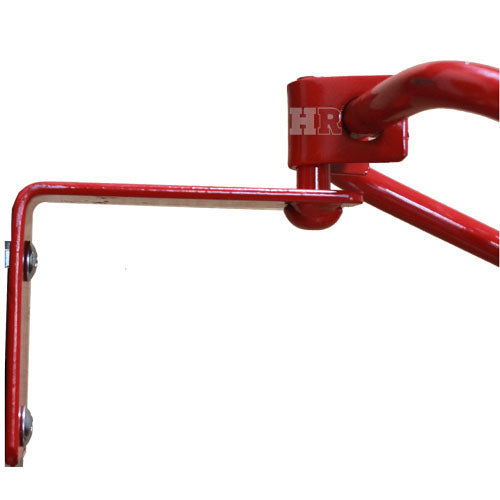

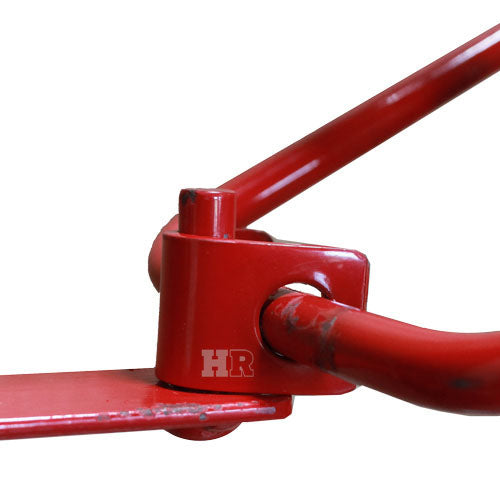

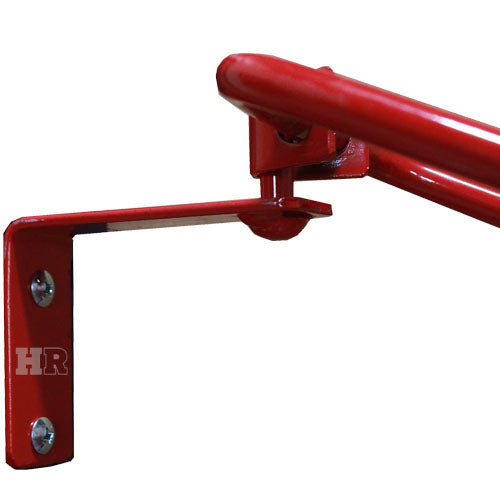

  • Included hardware allows pivot mounting so that reel can swing to the proper angle to prevent kinking and twisting
  • Durable all-steel construction
  • Sides are open to allow hose to dry faster
  • Finish is red powder coat
  • Hardware for wall mounting is standard

How To Roll Hose On Reel

  1. Lay the hose straight and flat on the ground.
  2. Fold the hose in half laying flat on the ground so that the couplings are together one above the other, male coupling on top. One half is now laying flat on top of the other half. Pull female coupling forward approximately 2 feet ahead of male.
  3. Roll the hose on the reel, beginning at the folded end that does not contain the couplings. You should end with the nozzle end on top and a female coupling on the bottom.
  4. Attach female coupling to water source so hose is ready for immediate use. Hose must be unrolled before water valve is opened.

Specifications

  • 1 1/2 inch or 1 3/4 inch Single Jacket Hose Capacity: 100 feet
  • 1 1/2 inch Double Jacket Hose Capacity: 75 feet
  • 1 1/2 inch Rubber Covered Hose Capacity: 75 feet
  • Hose must be unrolled completely for use
  • Cover sold separately: SKU HR15C

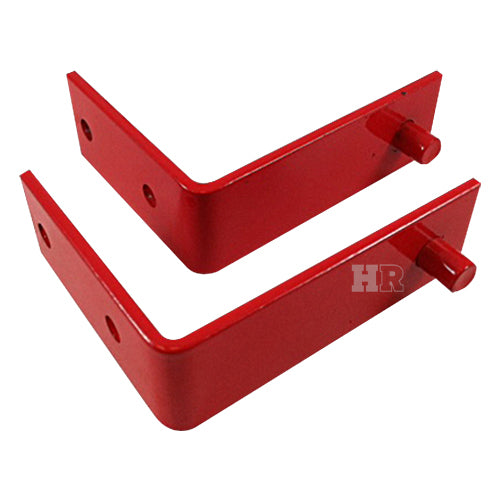

  • Includes: Mounting Bracket

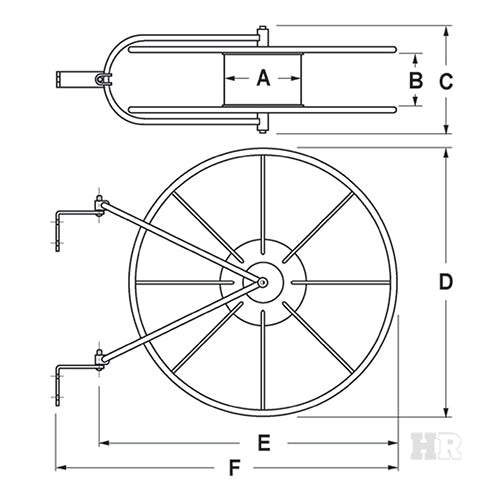

Dimensions

  • A: 8 inches
  • B: 3 inches
  • C: 7 1/2 inches
  • D: 26 inches
  • E: 29 inches
  • F: 33 inches
