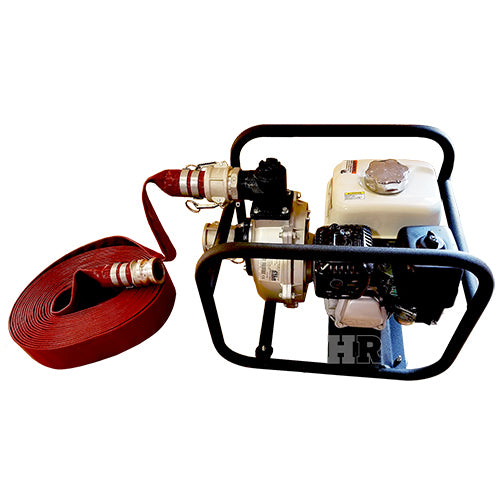

Red 2" x 50' Camlock Medium Duty Hose

Item Number: 20RD50CE
  • Red 2" x 50' Camlock Medium Duty Hose
1 6
$113.58
$0.00 $113.58
Sale Sold out
In Stock (10 or more)
Ships
Estimated transit time: 2 to 3 Business Days Eligible for Express Shipping

Shipping Cost: Free on orders over $100

Warranty Information

Limited 1-Year Warranty

We will replace any fire hose with manufacturer defects in material and workmanship. All warranty claims must be returned to us for inspection before we determine a solution.

Our warranty does not cover gaskets, shipping cost, cosmetic damages, normal wear-and-tear, improper use or chemical damage.

Fire hoses purchased for use at Fire Training Facilities will have a 90-day Manufacturer Defect warranty only.

Upon receipt of the returned goods, hoses will be subject to inspection and testing.

Should it be determined that the hose is covered by warranty, it will be repaired or replaced.

View full details

Additional Details

Red lay flat PVC discharge hose with cam & groove quick connect fittings is rated for light to medium duty. This hose is designed to be used in lower range water pressure situations having a maximum pressure of 150 PSI. This pump discharge hose is constructed from red PVC and reinforced by polyester yarn. Popular hose for general outdoor low pressure discharge applications.

Not intended for indoor use, firefighting or closed pressure applications such as use with nozzles.

Specifications

  • A water discharge hose featuring PVC tube and cover
  • Hose is reinforced with two spiral plies and longitudinal synthetic cords
  • Not intended for use as a fire hose
  • Used for open ended discharge applications only

Applications

  • Open discharge
  • Agriculture
  • Irrigation
  • Construction
  • Industrial

Camlocks

  • Type "A", has a male camlock and a female pipe thread of the same size.
  • Type "B", has a female camlock and a male pipe thread of the same size.
  • Type "C", has a female camlock and a male hose shank on the other.
  • Type "D", has a female camlock and a female pipe thread of the same size.
  • Type "E", has a male camlock and a male hose shank on the other.
  • Type "F", has a male camlock and a male pipe thread of the same size.

Warning: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer/birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Specifications

  • Hose Size: 2 inches
  • Hose Length: 50 feet
  • Male Camlock Coupling: Aluminum 2 inch (O.D. - 2.480) - Type "E" Shank
  • Female Camlock Coupling: Aluminum 2 inch (I.D. - 2.519) - Type "C" Shank
  • Maximum Pressure: 150 PSI
  • NOT for Closed Pressure Applications
  • Tube: Red Lay Flat PVC
  • Approximate Wall Thickness: 0.086 inch
  • Weight per foot: 0.29 pounds
  • Type of use: Water
  • Working Temperature: 5° F to 170° F

Download Spec Sheet
