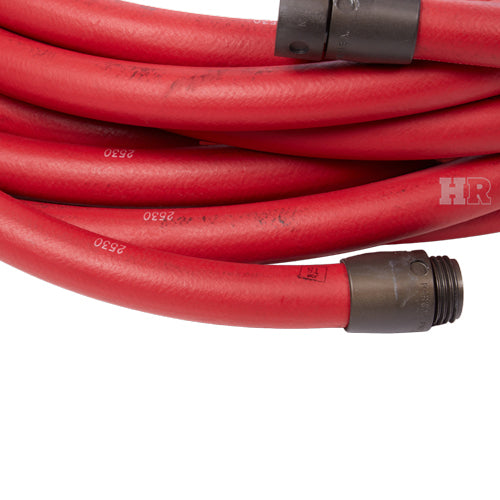

3/4" x 50' Non-Collapsible High Pressure Rubber Hose (1" NPSH Threads)

Item Number: 75B850P
  • Red 3/4" x 50' Non-Collapsible High Pressure Rubber Hose (Alum 1" NPSH Couplings)
1 6
$788.61
$0.00 $788.61
Sale Sold out
Special Order
Ships: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Free Shipping

Help Me Connect

Connections

  • The female side of a NH / NST coupling will only connect to a male NH / NST connection
  • The male side of a NH / NST coupling will only connect to a female NH / NST connection
  • The female side of a NPSH coupling will only connect to a male NPT pipe or a male NPSH connection
  • The male side of a NPSH coupling will only connect to a female NPSH connection. It will NOT thread into a female NPT pipe. For example, a male NPSH coupling will NOT thread into a female metal or pvc pipe.
  • The female side of a garden hose will only connect to a male garden hose connection.
  • The male side of a garden hose will only connect to a female garden hose connection.

The most common thread type in use by fire departments today is NST or National Standard Thread. NST also goes by the initials NH or National Hose. It can even be referred to as NHT or National Hose Thread but NST or NH is more common these days. NH = NST

Warranty Information

Limited 90-Day Warranty

We will replace any hose with manufacturer defects in material and workmanship. All warranty claims must be returned to us for inspection before we determine a solution.

Our warranty does not cover gaskets, shipping cost, cosmetic damages, normal wear-and-tear, improper use or chemical damage.

Upon receipt of the returned goods, hoses will be subject to inspection and testing.

Should it be determined that the hose is covered by warranty, it will be repaired or replaced.

View full details

Additional Details

This Goodyear non-collapsible utility booster hose assures all around dependable service, years of trouble free use and adequate reinforcement for pump pressures to 800 PSI. This good quality, economical general purpose booster hose (aka Red Line) is the traditional hard rubber hose. Made in the USA!

Applications

  • Lightweight firefighting needs
  • Rapid deployment
  • Booster Hose Reels

Warning: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer/birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Specifications

  • Made in USA
  • Hose Inside Diameter Size: 3/4 inch
  • Hose Outside Diameter Bowl Size: 1 1/4 inches
  • Hose Length: 50 feet (Approximately)

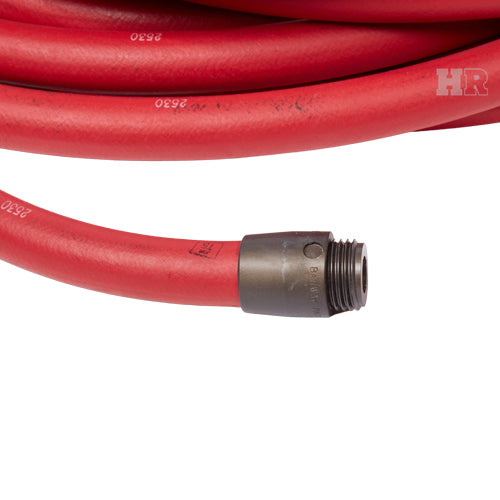

  • Male Coupling: Aluminum 1 inch NPSH

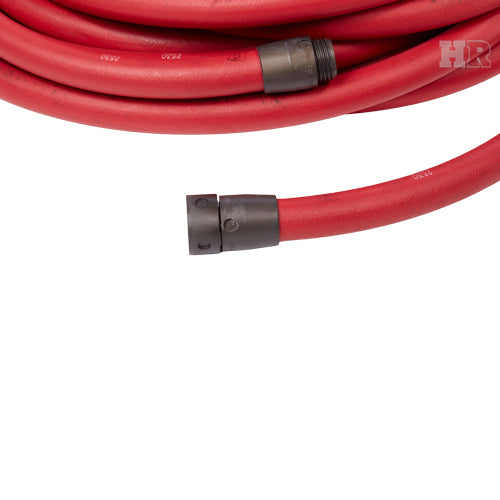

  • Swivel Female Coupling: Aluminum 1 inch NPSH
  • The Female Coupling Will Only Connect to a Male 1 inch NPT or NPSH
  • Compatible Nozzle - 1 inch NPSH only
  • Hose Cover: Red Synthetic Rubber
  • Color: Red
  • Liner: Nitrile Synthetic Rubber
  • Maximum Working Pressure: 800 PSI
  • Burst Pressure: 3200 PSI
  • Temperature Range: 20° F to 190° F

1" Hose Male Couplings

  • Inside diameter of a male coupling: 1 inch
  • Outside diameter of a male NH / NST coupling: 1 3/8 inches (8 Threads per inch)
  • Outside diameter a male NPSH or NPT coupling: 1 5/16 inches (11.5 Threads per inch)
