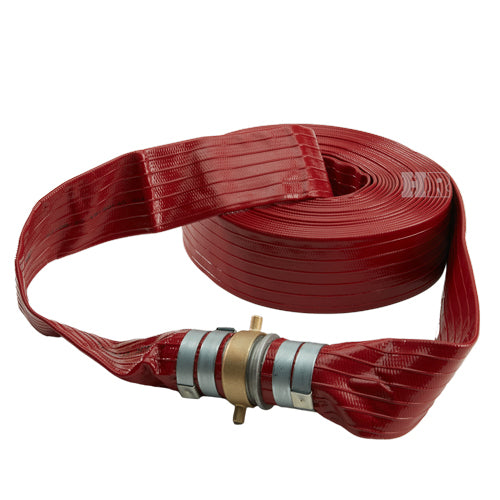

Red 3" x 50' Medium Duty Discharge Hose

price:
Price
$146.26
Item Number: 30RD50MF
Weight: 28.0 lb

Stock Level: 0

Product Status: On Order

When Will it Ship: Contact for Lead Time

Shipping Cost: Free Shipping

Shipping Transit Time: 2-5 Days When Back In Stock

Eligible for Express Shipping: No

Stock Level Updated: Jun 20, 2024


Red lightweight lay flat PVC discharge hose is rated for light to medium duty. This hose is designed to be used in lower range water pressure situations having a maximum pressure of 150 PSI. This pump discharge hose is constructed from red PVC and reinforced by polyester yarn. Popular hose for general outdoor low pressure discharge applications.

Not intended for indoor use, firefighting or closed pressure applications such as use with nozzles.

Specifications

  • A lightweight PVC water discharge hose featuring PVC tube and cover
  • Hose is reinforced with two spiral plies and longitudinal synthetic cords
  • Not intended for use as a fire hose
  • Used for open ended discharge applications only

Applications

  • Open discharge
  • Agriculture
  • Irrigation
  • Construction
  • Industrial

Warning: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer/birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov



  • Hose Size: 3 inches
  • Hose Length: 50 feet
  • Male Coupling: Aluminum 3 inch Straight Pipe Thread (NPSH)
  • Female Coupling: Brass 3 inch Straight Pipe Thread (NPSH)
  • The Female Coupling Will Only Connect to a Male 3 inch NPT or NPSH
  • Maximum Pressure: 150 PSI
  • NOT for Closed Pressure Applications
  • Tube: Red Lay Flat PVC
  • Approximate wall thickness: 0.090 inch
  • Weight per foot: 0.50 pounds
  • Type of use: Water
  • Working temperature: 5° F to 170° F

3" Male Coupling

  • Inside diameter of a male adapter: 3 inches
  • Outside diameter of a male NH / NST adapter: 3 5/8 inches (6 Threads per inch)
  • Outside diameter a male NPSH or NPT adapter: 3 1/2 inches (8 Threads per inch)

Download Spec Sheet

Limited 1-Year Warranty

We will replace any fire hose with manufacturer defects in material and workmanship. All warranty claims must be returned to us for inspection before we determine a solution.

Our warranty does not cover gaskets, shipping cost, cosmetic damages, normal wear-and-tear, improper use or chemical damage.

Fire hoses purchased for use at Fire Training Facilities will have a 90-day Manufacturer Defect warranty only.

Upon receipt of the returned goods, hoses will be subject to inspection and testing.

Should it be determined that the hose is covered by warranty, it will be repaired or replaced.

NPSH Connections

  • The female side of a NPSH coupling will only connect to a male NPT pipe or a male NPSH connection
  • The male side of a NPSH coupling will only connect to a female NPSH connection. It will NOT thread into a female NPT pipe. For example, a male NPSH coupling will NOT thread into a female metal or pvc pipe.

Hoses with National Pipe Straight Hose Thread (NPSH or NPS) has the same threads per inch (TPI) as National Pipe Thread (NPT) but the threads do not taper. This allows a female coupling to thread onto a NPT fitting without being a permanent connection. For example, a female fire hose coupling with NPSH threads will only connect to a PVC pipe, metal pipe or couplings with NPSH or NPT threads. Fittings that are connected together by NPT by NPT require a sealing agent like pipe cement or teflon tape because the threads are making the seal and a permanent connection. When a female NPSH is threaded onto a male NPT fitting, it allows this connection to thread on and off frequently by using a gasket to seal.
