White 1 1/2" x 100' Pin Rack Hose Assembly (Brass NH Couplings)

Skip to product information
1 of 7
Regular price Price: $381.44
Regular price $0.00 Sale price $381.44
Sale Sold out

Stock Level: 0

Product Status: Special Order

When Will it Ship: Contact for Lead Time

Shipping Cost: Free Shipping

Shipping Transit Time: 2 to 5 Business Days

Eligible for Express Shipping: No

Stock Level Updated: Nov 13, 2024


Item Number: 15PRA5100B
Weight: 32.5 lb

View full details

Collapsible content

Description

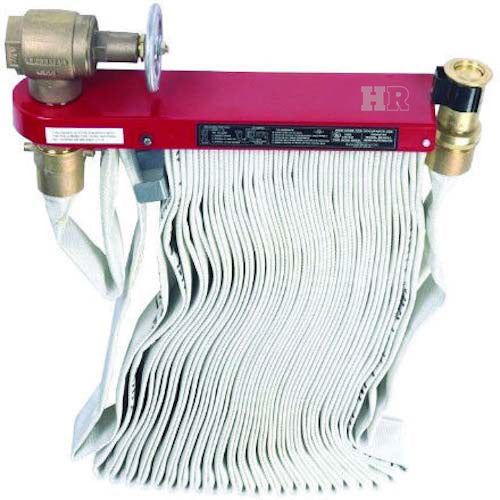

Pin Rack Hose 1 1/2 inch all polyester single jacket fire hose specifically designed for interior fire fighting use, pin racks, and/or fire cabinets in buildings and plants. NFPA 1961 standards shall be observed in production and assembly to insure quality and durability. Rack hose is also known as cabinet hose and reel hose. This product includes pin rack, hose, brass angle valve, rack nipple, rack nozzle, cadmium plated escutcheon.

Brass NH couplings are standard (aluminum available). Brass and aluminum female couplings have two rocker lugs. Hose comes pre-folded and is for emergency fire fighting only.

This hose is not for wash-down duties or any other multi-use application; please see our single jacket, double jacket or rubber covered hose for other applications.

Due to dated nature of this hose returns are not accepted on this product.

Includes

  • UL 300 PSI brass angle valve (1.5" NPT Female Inlet x 1.5" NPT Female Outlet)

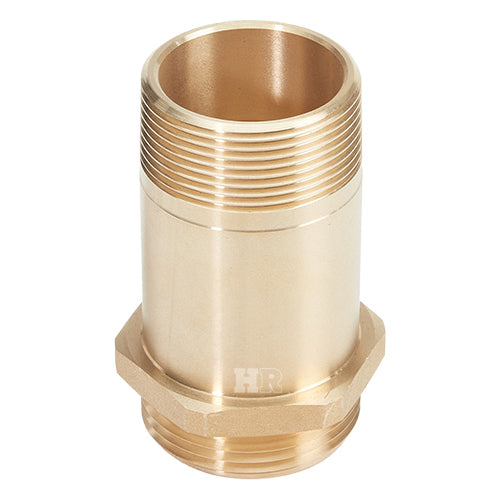

  • Brass rack nipple (1.5" NPT Male x 1.5" NH / NST Male)

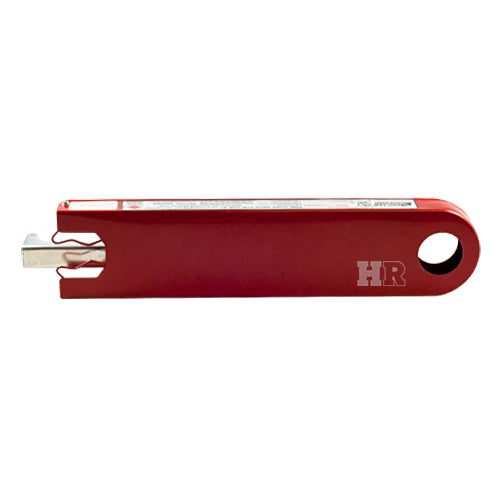

  • Semi-automatic fire hose pin rack (Capacity 100 feet)

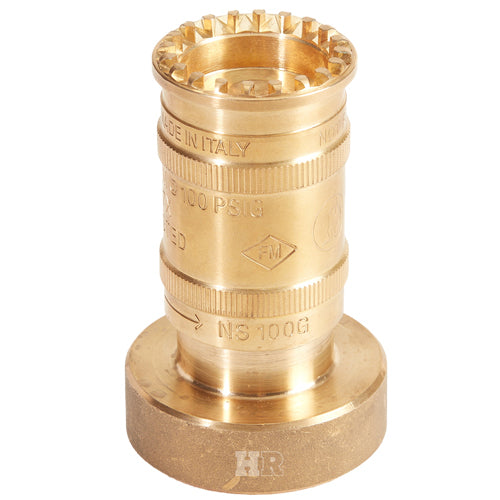

  • UL/FM Brass 1.5" NH/NST rack nozzle
  • Cadmium plated escutcheon
  • Length of 1 1/2" pin rack hose with brass NH / NST threaded couplings

Applications

  • Interior firefighting
  • Apartment buildings
  • Office buildings
  • Manufacturing Plants

Number of Folds (Approximately)

  • 50’ – 12 folds
  • 75’ - 19 folds
  • 100’ – 25 folds
  • 125’ – 27 folds

Test Ratings (Water Only With Expansion Ring Couplings)

  • Service Pressure (A 3-minute hydrostatic test conducted by users on in-service hose to determine suitability for continued service)
  • Proof Test Pressure (A pressure equal to a least two times the service test pressure)

Specifications

  • Hose Size: 1 1/2 inches (Inside Diameter)
  • Hose Length: 100 feet (Approximately)
  • Male Coupling: Brass 1 1/2 inch NH / NST
  • Swivel Female Coupling: Brass 1 1/2 inch NH / NST
  • The Female Coupling Will Only Connect to a Male 1 1/2 inch NH / NST
  • Compatible Nozzle: 1 1/2 inch NH / NST only
  • Hose Type: Polyester Single Jacket (Mildew Resistant)
  • Color: White
  • Liner: PU Liner
  • Approximate Width Laying Flat: 2 1/2 inches
  • Service Pressure: 250 PSI
  • Proof Test Pressure: 500 PSI
  • Pre-folded for ease of installation
  • FM Approved Standard

Replacement Instructions

  • Remove existing nozzle
  • Unscrew female coupling from pin rack nipple
  • Unscrew pin rack nipple
  • Remove old pin rack with hose
  • Remove valve
  • Add new cadmium plated escutcheon
  • Add new valve
  • Install new pin rack with hose
  • Screw in new pin rack nipple
  • Attach female coupling to pin rack nipple
  • Attach nozzle



Warranty Information

Limited 1-Year Warranty

We will replace any fire hose with manufacturer defects in material and workmanship. All warranty claims must be returned to us for inspection before we determine a solution.

Our warranty does not cover gaskets, shipping cost, cosmetic damages, normal wear-and-tear, improper use or chemical damage.

Fire hoses purchased for use at Fire Training Facilities will have a 90-day Manufacturer Defect warranty only.

Upon receipt of the returned goods, hoses will be subject to inspection and testing.

Should it be determined that the hose is covered by warranty, it will be repaired or replaced.
