White 2" x 50' Single Jacket Discharge Hose

  • White 2" x 50' Single Jacket Discharge Hose
1 6
Price: $97.31
$0.00 $97.31
Sale Sold out

Stock Level: 10 or more

Product Status: In Stock

When Will it Ship:

Shipping Cost: Free on orders over $100

Shipping Transit Time: 2 to 3 Business Days

Eligible for Express Shipping: Yes

Stock Level Updated: Nov 24, 2024


Item Number: 20S1550MF
Weight: 15.0 lb

View full details

Description

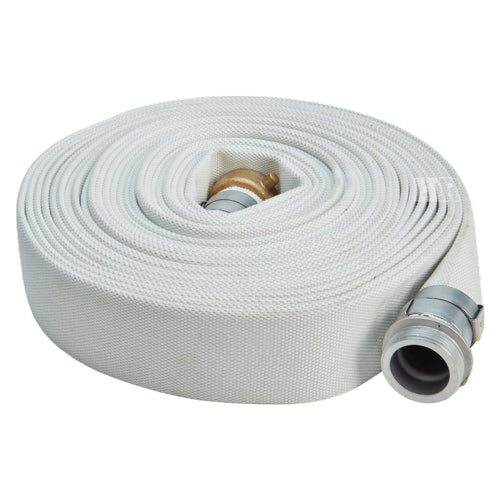

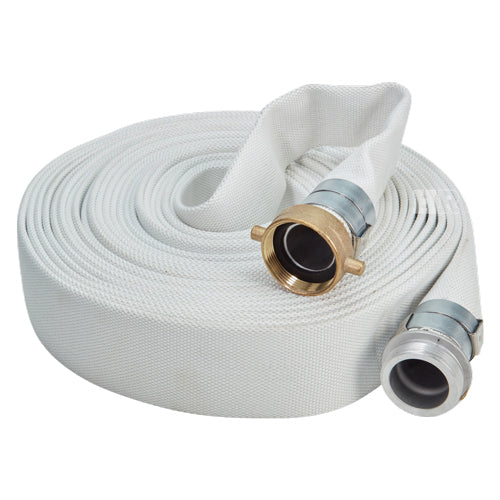

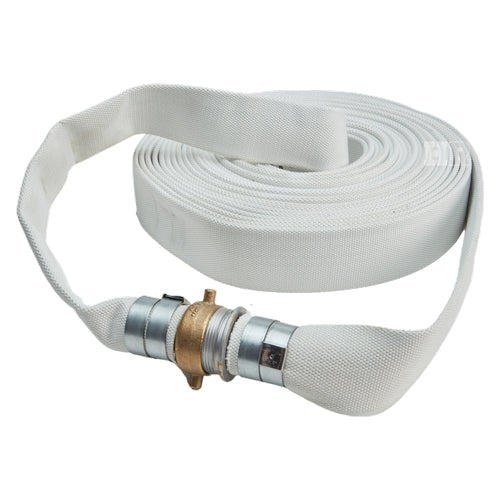

Our single jacket mill hose is for light industrial and construction locations where medium water pressure is used.

Not intended for structural firefighting.

Applications

  • Open discharge
  • Agriculture
  • Irrigation
  • Construction
  • Industrial

Warning: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer/birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov



Specifications

  • Hose Size: 2 inch
  • Hose Length: 50 feet
  • Male Coupling: Aluminum 2 inch Straight Pipe Thread (NPSH)
  • The Male Will Only Connect to a Female 2 inch NPSM or NPSH (not NPT)
  • Female Coupling: Brass 2 inch Straight Pipe Thread (NPSH)
  • The Female Coupling Will Only Connect to a Male 2 inch NPT or NPSH
  • Maximum Pressure: 150 PSI
  • Liner: Synthetic SBR Rubber
  • Type of Use: Water
  • Hose Type: Single Jacket Mill Hose
  • Hose Jacket Color: White
  • 100% All Polyester

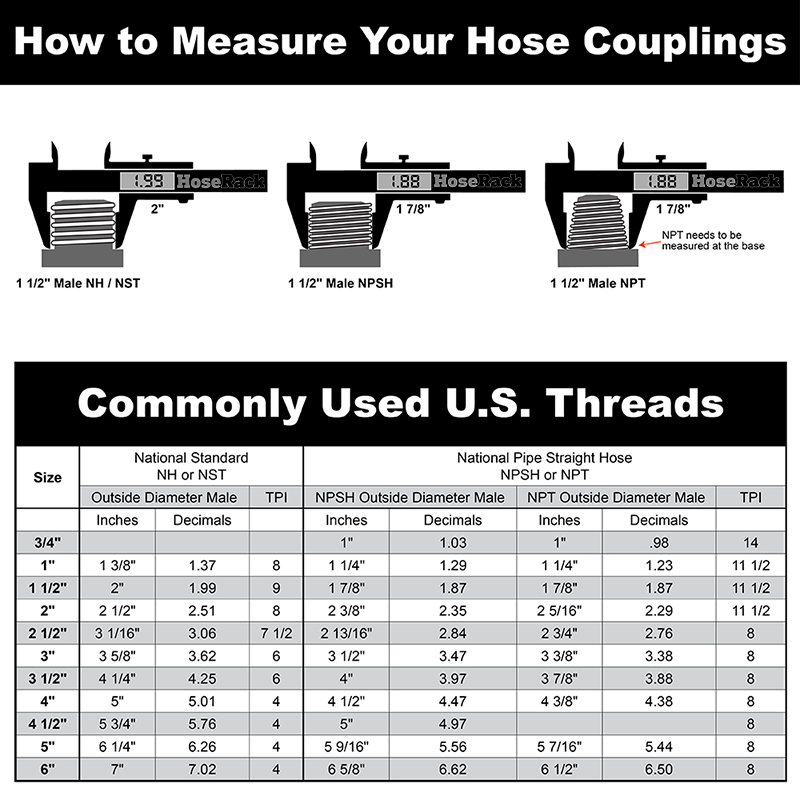

2" Hose Male Couplings

  • Inside diameter of a male coupling: 2 inch
  • Outside diameter of a male NH / NST coupling: 2 1/2 inches (8 Threads per inch)
  • Outside diameter a male NPSH or NPT coupling: 2 3/8 inches (11.5 Threads per inch)

Note - 2 inch NH or NST is very rare. If the outside diameter of male coupling is approximately 2 inches, you need 1 1/2 inch NH or NST.

Download Spec Sheet

Help Me Connect

NPSH Connections

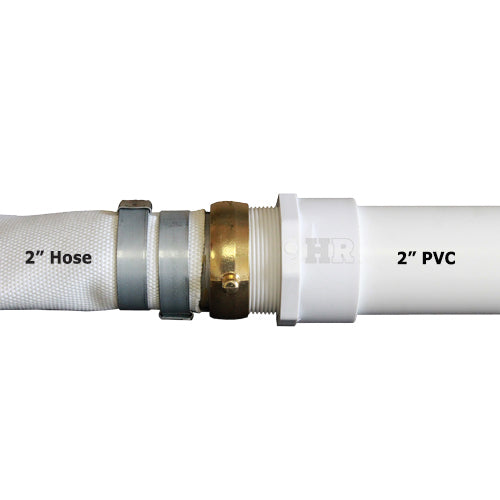

  • The female side of a NPSH coupling will only connect to a male NPT pipe or a male NPSH connection
  • The male side of a NPSH coupling will only connect to a female NPSH connection. It will NOT thread into a female NPT pipe. For example, a male NPSH coupling will NOT thread into a female metal or pvc pipe.

Hoses with National Pipe Straight Hose Thread (NPSH or NPS) has the same threads per inch (TPI) as National Pipe Thread (NPT) but the threads do not taper. This allows a female coupling to thread onto a NPT fitting without being a permanent connection. For example, a female fire hose coupling with NPSH threads will only connect to a PVC pipe, metal pipe or couplings with NPSH or NPT threads. Fittings that are connected together by NPT by NPT require a sealing agent like pipe cement or teflon tape because the threads are making the seal and a permanent connection. When a female NPSH is threaded onto a male NPT fitting, it allows this connection to thread on and off frequently by using a gasket to seal.

Warranty Information

Limited 90-Day Warranty

We will replace any hose with manufacturer defects in material and workmanship. All warranty claims must be returned to us for inspection before we determine a solution.

Our warranty does not cover gaskets, shipping cost, cosmetic damages, normal wear-and-tear, improper use or chemical damage.

Upon receipt of the returned goods, hoses will be subject to inspection and testing.

Should it be determined that the hose is covered by warranty, it will be repaired or replaced.
