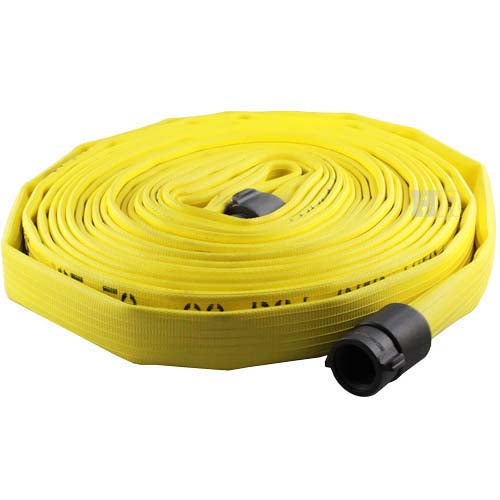

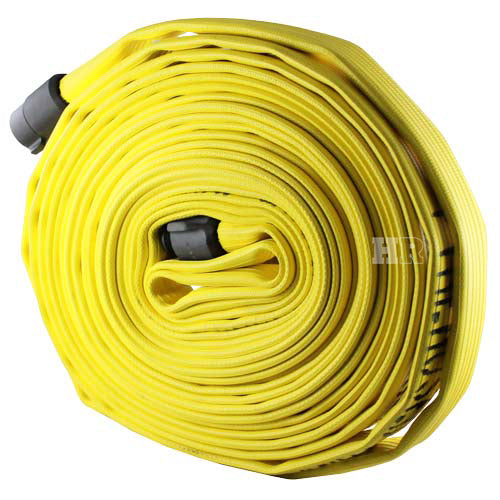

Yellow 1" x 50' Rubber Hose (Alum NH Couplings)

  • Yellow 1" x 50' Rubber Hose (Alum NH Couplings)
1 5
Price: $183.65
$0.00 $183.65
Sale Sold out

Stock Level: 10 or more

Product Status: In Stock

When Will it Ship:

Shipping Cost: Free Shipping

Shipping Transit Time: 2 to 5 Business Days

Eligible for Express Shipping: Yes

Stock Level Updated: Nov 22, 2024


Item Number: 10R650YL
Weight: 7.0 lb

View full details

Description

Our rubber covered lay flat hose is a synthetic, single-jacket hose with a nitrile/PVC rubber lining and cover. The outside jacket offers superior resistance to acids, alkalis, oils, gasoline and ozone. Meets NFPA 1961 standards. All weather performance from -36° F to 1200° F.

Applications

  • Municipal Fire Departments
  • De-contamination / Wash Down
  • Fire Rescue
  • Chemical Fire Protection
  • Shipboard Firefighting
  • Heavy-Duty Industrial Use

Test Ratings (Water Only With Expansion Ring Couplings)

  • Service Pressure (A 3-minute hydrostatic test conducted by users on in-service hose to determine suitability for continued service)
  • Proof Test Pressure (A pressure equal to a least two times the service test pressure)
  • PSI Burst Test Pressure



Specifications

  • Hose Size: 1 inches
  • Hose Length: 50 feet
  • Male Coupling: Aluminum 1 inch NH / NST
  • Female Coupling: Aluminum 1 inch NH / NST
  • Hose Type: Nitrile/PVC Through-The-Weave
  • Color: Yellow
  • Weight Per Foot: 0.16 pounds
  • Approximate Width Laying Flat: 1 3/4 inches
  • Warranty: 10 Years
  • Service Pressure: 300 PSI
  • Proof Test Pressure: 600 PSI
  • Burst Test Pressure: 900 PSI

1" Hose Male Couplings

  • Inside diameter of a male coupling: 1 inch
  • Outside diameter of a male NH / NST coupling: 1 3/8 inches (8 Threads per inch)
  • Outside diameter a male NPSH or NPT coupling: 1 5/16 inches (11.5 Threads per inch)

Download Spec Sheet

Help Me Connect

Connections

  • The female side of a NH / NST coupling will only connect to a male NH / NST connection.
  • The male side of a NH / NST coupling will only connect to a female NH / NST connection.
  • The female side of a NPSH coupling will only connect to a male NPT pipe or a male NPSH connection.
  • The male side of a NPSH coupling will only connect to a female NPSH connection. It will NOT thread into a female NPT pipe. For example, a male NPSH coupling will NOT thread into a female metal or pvc pipe.
  • The female side of a garden hose will only connect to a male garden hose connection.
  • The male side of a garden hose will only connect to a female garden hose connection.

The most common thread type in use by fire departments today is NST or National Standard Thread. NST also goes by the initials NH or National Hose. It can even be referred to as NHT or National Hose Thread but NST or NH is more common these days. NH = NST

Warranty Information

Limited 10-Year Warranty

We will replace any fire hose with manufacturer defects in material and workmanship. All warranty claims must be returned to us for inspection before we determine a solution.

Our warranty does not cover gaskets, shipping cost, cosmetic damages, normal wear-and-tear, improper use or chemical damage.

Fire hoses purchased for use at Fire Training Facilities will have a 90-day Manufacturer Defect warranty only.

Upon receipt of the returned goods, hoses will be subject to inspection and testing.

Should it be determined that the hose is covered by warranty, it will be repaired or replaced.
