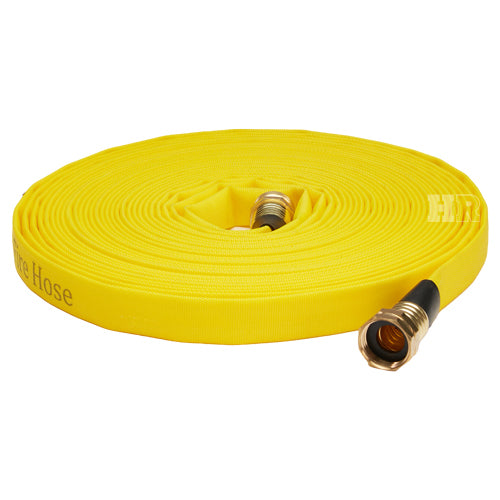

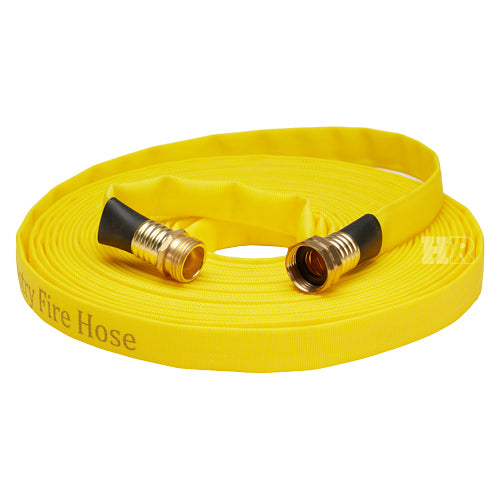

Yellow 5/8" x 50' Forestry Hose (Brass Garden Hose Couplings) - Import with Band

price:
Price
$76.15
Item Number: G58F50BYL-RB
Weight: 1.85 lb

Stock Level: 0

Product Status: Special Order

When Will it Ship: Contact for Lead Time

Shipping Cost: Free on orders over $100

Shipping Transit Time: 2 to 5 Business Days

Eligible for Express Shipping: No

Stock Level Updated: Jul 22, 2024

Our imported forestry fire "mop-up" hose and is NOT intended to be a substitute for home garden hoses. It is thin walled and will kink at low pressure as is typical for this type of hose.

Please see our Garden Hose category for traditional garden hose options.

This hose is sometimes referred to as pencil line or toy hose in the wildland fire industry and is coupled with standard 3/4 inch garden hose threads (GHT).

  • Polyester jacket with a smooth thremoplastic polyurethane liner to reduce friction loss.
  • Color treatment on the yellow hose model increases abrasion resistance and virtually elimnates water pick-up.
  • Weighs only 1.25 lbs per 50 feet and coil diameter is only 9 inches for easy storage.
  • The hose is coupled with brass garden hose threaded couplings complete with gasket and fitted with strain reliefs inside the ferrules to protect the hose.
  • This hose meets or exceeds NFPA 1961.

Applications

  • RV hose
  • Forest firefighting
  • Brush firefighting
  • Grass firefighting
  • Wildland firefighting
  • Light industrial Use



  • Hose Size: 5/8 inches (Inside Diameter)
  • Hose Length: 50 feet (Approximately)
  • Coil Diameter: 9 inches
  • Male Coupling:Brass Garden Hose Threads (GHT)
  • Swivel Female Coupling: Brass Garden Hose Threads (GHT)
  • The Female Coupling Will Only Connect to Garden Hose Threads
  • Compatible Nozzle: Garden Hose Only (GHT)
  • Hose Type: Polyester Jacket
  • Liner: Thermoplastic Polyurethane
  • Color: Yellow
  • Service Pressure: 300 PSI
  • Proof Test Pressure: 600 PSI
  • Burst Test Pressure: 900 PSI
  • Standard: NFPA 1961

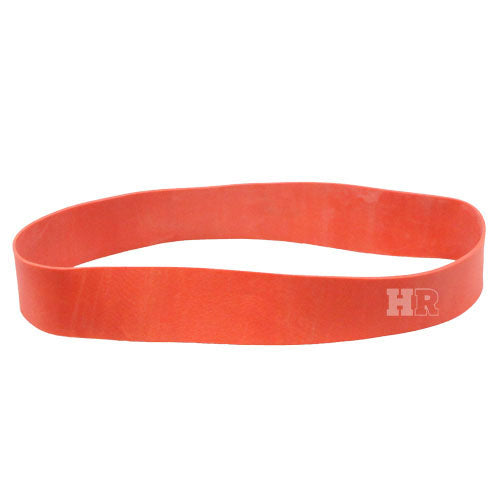

  • Includes: Fire Hose Retaining Rubber Band (FHRB)

Garden Hose Thread Male Adapter

  • Outside diameter of a male GHT adapter: 1 1/16 inches (1.06) - 11.5 Threads per inch

Download Spec Sheet

Limited 1-Year Warranty

We will replace any fire hose with manufacturer defects in material and workmanship. All warranty claims must be returned to us for inspection before we determine a solution.

Our warranty does not cover gaskets, shipping cost, cosmetic damages, normal wear-and-tear, improper use or chemical damage.

Fire hoses purchased for use at Fire Training Facilities will have a 90-day Manufacturer Defect warranty only.

Upon receipt of the returned goods, hoses will be subject to inspection and testing.

Should it be determined that the hose is covered by warranty, it will be repaired or replaced.

  • The female side of a garden hose will only connect to a male garden hose connection.
  • The male side of a garden hose will only connect to a female garden hose connection.

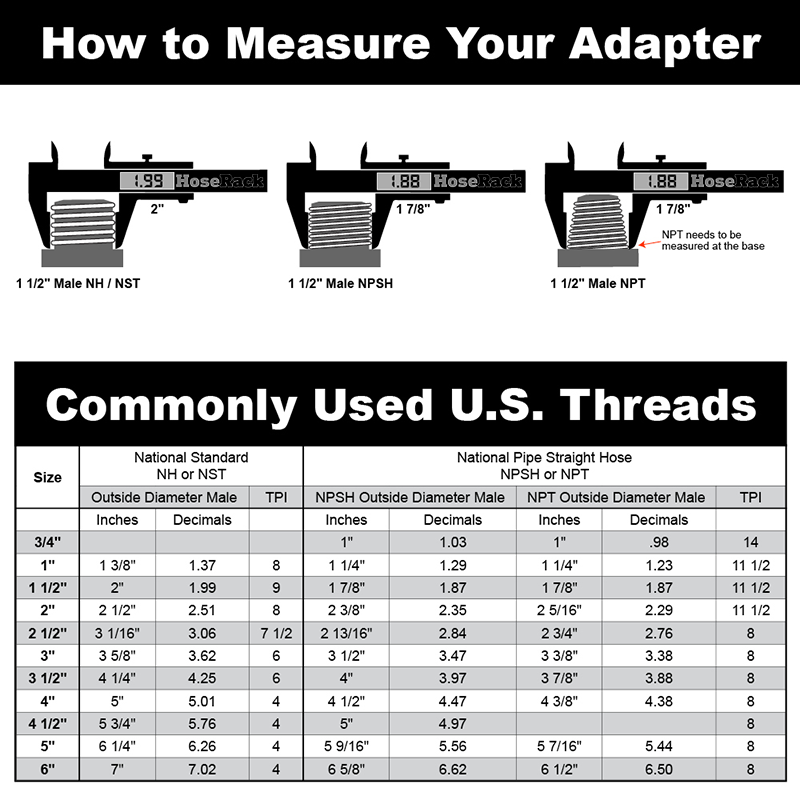

NH / NST: The most common thread type in use by fire departments today is NST or National Standard Thread. NST also goes by the initials NH or National Hose. It can even be referred to as NHT or National Hose Thread but NST or NH is more common these days. NH = NST.

  • The female side of a NH / NST coupling will only connect to a male NH / NST connection
  • The male side of a NH / NST coupling will only connect to a female NH / NST connection

NPSH: National Pipe Straight Hose (NPSH) or Iron Pipe Thread (IPT) has the same threads per inch (TPI) as National Pipe Tapered (NPT) but the thread does not taper. NPSH is a straight thread and seals by a gasket in the female coupling which allows for a swivel, just like NH / NST, which make both ideal for hose couplings.

  • The female side of a NPSH coupling will only connect to a male NPT pipe or a male NPSH connection
  • The male side of a NPSH coupling will only connect to a female NPSH connection.
    It will NOT thread into a female NPT pipe. For example, a male NPSH coupling will NOT thread into a female metal or pvc pipe.

NPT: National Pipe Tapered is common in plumbing and some industrial uses. Sometimes referred to as pipe thread because PVC pipe and schedule 40 pipe are typically threaded in NPT. As its name implies this is a tapered thread so that the outside diameter of the male (ODM) gets smaller towards the end of the fitting and the inside diameter of the female narrows with depth. As the two fittings are threaded together the opposite tapers force thread friction and makes the seal without the use of a gasket.
