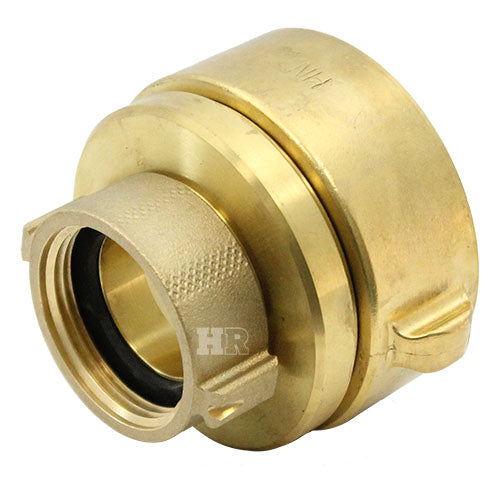

Brass 2 1/2" Swivel NH to 1 1/2" Swivel NH Double Female (Rocker) - USA

Item Number: B35R2515-D
  • Brass 2 1/2" Swivel NH to 1 1/2" Swivel NH Double Female (Rocker) - USA
1 5
$159.43
$0.00 $159.43
Sale Sold out
Limited Stock (1)
Ships
Estimated transit time: 2 to 5 Business Days Eligible for Express Shipping

Free Shipping

Help Me Connect

  • The female side of a NH / NST coupling will only connect to a male NH / NST connection
  • The male side of a NH / NST coupling will only connect to a female NH / NST connection
  • The female side of a NPSH coupling will only connect to a male NPT pipe or a male NPSH connection
  • The male side of a NPSH coupling will only connect to a female NPSH connection. It will NOT thread into a female NPT pipe. For example, a male NPSH coupling will NOT thread into a female metal or pvc pipe.
  • The female side of a garden hose will only connect to a male garden hose connection.
  • The male side of a garden hose will only connect to a female garden hose connection.

NH / NST: The most common thread type in use by fire departments today is NST or National Standard Thread. NST also goes by the initials NH or National Hose. It can even be referred to as NHT or National Hose Thread but NST or NH is more common these days. NH = NST.

NPSH: National Pipe Straight Hose (NPSH) or Iron Pipe Thread (IPT) has the same threads per inch (TPI) as National Pipe Tapered (NPT) but the thread does not taper. NPSH is a straight thread and seals by a gasket in the female coupling which allows for a swivel, just like NH / NST, which make both ideal for hose couplings.

NPT: National Pipe Tapered is common in plumbing and some industrial uses. Sometimes referred to as pipe thread because PVC pipe and schedule 40 pipe are typically threaded in NPT. As its name implies this is a tapered thread so that the outside diameter of the male (ODM) gets smaller towards the end of the fitting and the inside diameter of the female narrows with depth. As the two fittings are threaded together the opposite tapers force thread friction and makes the seal without the use of a gasket.

View full details

Additional Details

Female to female adapters are used to bridge two male hose, pipe or valve fittings. Brass is commonly chosen for corrosion resistance, and is popular with chemical or salt water applications.

WARNING: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.

Download Spec Sheet

Specifications

  • Made in USA
  • Side 1: Female 2 1/2 inch NH
  • Side 1 Will Only Connect to a Male 2 1/2 inch NH / NST
  • Side 2: Female 2 1/2 inch NH
  • Side 2 Will Only Connect to a Male 2 1/2 inch NH / NST
  • Material: Cast Brass
Garden Hose Thread Male Adapter
  • Outside diameter of a male GHT adapter: 1 1/16 inches (1.06) - 11.5 Threads per inch
1" Male Adapter
  • Inside diameter of a male adapter: 1 inch
  • Outside diameter of a male NH / NST adapter: 1 3/8 inches (1.375) - 8 Threads per inch
  • Outside diameter a male NPSH or NPT adapter: 1 5/16 inches (1.295) - 11.5 Threads per inch
1 1/2" Male Adapter
  • Inside diameter of a male adapter: 1 1/2 inches
  • Outside diameter of a male NH / NST adapter: 2 inches (1.99) - 9 Threads per inch
  • Outside diameter a male NPSH or NPT adapter: 1 7/8 inches (1.87) - 11.5 Threads per inch
1 3/4" Hose Couplings
  • 1 3/4 inch hoses come with 1 1/2 inch couplings
2" Male Adapter
  • Inside diameter of a male adapter: 2 inch
  • Outside diameter of a male NH / NST adapter: 2 1/2 inches (2.51) - 8 Threads per inch
  • Outside diameter a male NPSH or NPT adapter: 2 3/8 inches (2.35) - 11.5 Threads per inch

Note - 2 inch NH or NST is very rare. If the outside diameter of male adapter is approximately two inches, you need 1 1/2 inch NH or NST.

2 1/2" Male Adapter
  • Inside diameter of a male adapter: 2 1/2 inches
  • Outside diameter of a male NH / NST adapter: 3 1/16 inches (3.06) - 7.5 Threads per inch
  • Outside diameter a male NPSH or NPT adapter: 2 7/8 inches (2.84) - 8 Threads per inch
3" Hose Couplings
  • Most 3 inch hoses come with 2 1/2 inch couplings
4" Male Adapter
  • Inside diameter of a male adapter: 4 inches
  • Outside diameter of a male NH / NST adapter: 5 inches (5.01) - 4 Threads per inch
  • Outside diameter a male NPSH or NPT adapter: 4 1/2 inches (4.47) - 8 Threads per inch
5" Male Adapter
  • Inside diameter of a male adapter: 5 inches
  • Outside diameter of a male NH / NST adapter: 6 1/4 inches (6.26) - 4 Threads per inch
6" Male Adapter
  • Inside diameter of a male adapter: 6 inches
  • Outside diameter of a male NH / NST adapter: 7 1/32 inches (7.025) - 4 Threads per inch
