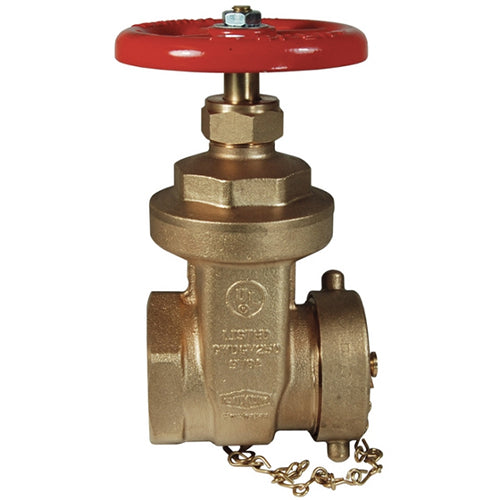

Brass Cast Global Non-Rising Stem Gate Valve 2 1/2" Female NPT x 2 1/2" Male NH

Item Number: GWDGV250F
1 1
$348.43
$0.00 $348.43
Sale Sold out
In Stock (10 or more)
Ships
Estimated transit time: 2 to 5 Business Days Eligible for Express Shipping

Free Shipping

  • Weight: 8.5 lb
  • Inlet: 2 1/2 inch NPT Female
  • The Inlet will only Connect to a 2 1/2 inch NPT Male
  • Outlet: 2 1/2 inch NH / NST Male
  • The Outlet will only Connect to a 2 1/2 inch NH / NST Female
  • Body Material: Cast DZR Brass
  • Working Pressure: 300 PSI
  • Not to be used on wet standpipe systems
  • NOTE: Cap has Pin Lugs (not rocker lugs)

Help Me Connect

NH / NST: The most common thread type in use by fire departments today is NST or National Standard Thread. NST also goes by the initials NH or National Hose. It can even be referred to as NHT or National Hose Thread but NST or NH is more common these days. NH = NST.

  • The female side of a NH / NST coupling will only connect to a male NH / NST connection
  • The male side of a NH / NST coupling will only connect to a female NH / NST connection

NPSH: National Pipe Straight Hose (NPSH) or Iron Pipe Thread (IPT) has the same threads per inch (TPI) as National Pipe Tapered (NPT) but the thread does not taper. NPSH is a straight thread and seals by a gasket in the female coupling which allows for a swivel, just like NH / NST, which make both ideal for hose couplings.

  • The female side of a NPSH coupling will only connect to a male NPT pipe or a male NPSH connection
  • The male side of a NPSH coupling will only connect to a female NPSH connection.
    It will NOT thread into a female NPT pipe. For example, a male NPSH coupling will NOT thread into a female metal or pvc pipe.

NPT: National Pipe Tapered is common in plumbing and some industrial uses. Sometimes referred to as pipe thread because PVC pipe and schedule 40 pipe are typically threaded in NPT. As its name implies this is a tapered thread so that the outside diameter of the male (ODM) gets smaller towards the end of the fitting and the inside diameter of the female narrows with depth. As the two fittings are threaded together the opposite tapers force thread friction and makes the seal without the use of a gasket.





View full details

Additional Details

WARNING: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.

Specifications

  • NOTE: Cap has Pin Lugs (not rocker lugs)
  • Body Material: Cast DZR Brass
  • Inlet: 2 1/2 inch NPT Female
  • The Inlet Will Only Connect to a 2 1/2 inch NPT Male
  • Outlet: 2 1/2 inch NH / NST Male
  • The Outlet Will Only Connect to a 2 1/2 inch NH / NST Female
  • Working Pressure: 300 PSI
